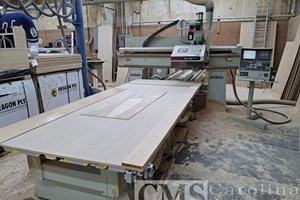

MASTERWOOD - Project 450L: CNC Machining CenterSpecifications -- X-Y-Z Axis strokes: 5,820 - 1,900 - 350 mm.Axis speed X-Y-Z: 80 - 80 - 25 MP.Aluminum panel support blocks: 8.Middle reference stops: 8.Front reference stops: 9.Side reference stops: 2 dx - 2 sx.Panel carrying knives: 4. -- Distance between drills: 32 mm.Engine power: 1.7 kW.Drill rotation speed: 4,000 RPM.12 kW Air-cooled motor with: HSK 63 Tool holder. -- Numerical Control with: P; max. power: 37.3 kVA.Amps: 53.8.Working Pressure: 7 - 8 bar.Compressed air consumption: ~ 100 Nl/Min. -- Upper dust extraction outlet: Ø 250 mm. Dust extraction outlet for sawdust coming out of the conveyor belt: Ø 120 mm; dust extractor air output speed: 25 - 30 m/Sec; dust extractor air consumption: 4,900 cbm/Hr.Includes -- Vacuum Pump; (12) extra ISO collets; aggregate HSD.Note: Description based on Model Type, manufacturer's plate, and information from Seller. Please inspect to confirm the required specifications. Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

MASTERWOOD PROJECT 317 CNC MACHINING CENTER (P.T.P): Specifications -- Working Capacity: "X" Axis: 102" (2,600 mm); "Y" Axis: 37-1/2" (950 mm); "Z" Axis stroke: 5.9" (150 mm); max. material thickness: 2.36" (60 mm). -- Positioning Speed: "X" Axis: 164 FPM (50 MPM); "Y" Axis: 131 FPM (40 MPM); "Z" Axis: 25 FPM (8 MPM). -- Work Area: (6) Adjustable panel supports; ea. with: (2) Vacuum pods; (4) panel lifting blades for heavy parts; (6) fixed pop up rear stops; (1) side R/H stop; (1) L/H stop.Machine bed is divided into: (2) Independent working zones with mirror image capability. -- Boring Unit:.2 HP (1.5 kW) - 4,000 RPM Motor; (10) independent vertical boring spindles with: (7) Spindles in "X"-axis & (3) spindles in "Y"-axis. (6) Horizontal spindles with: (2 + 2) In "X"-axis; (1 + 1) in "Y"-axis; (1) 12,000 RPM "X"-axis grooving saw with: 125 mm Dia. blade. -- Machining: (1) 9 HP (6.7 kW) Vertically mounted electrospindle router with: ISO 30 Adaptor & ceramic bearings; variable speed: 6,000 - 24,000 RPM.(1) 4-Position automatic tool changer mounted to the machine head for "on the fly" ATC. -- Operator & Machine Control: PC Front-end controller; MASTERWOOD "MW 310" CNC + Windows Operating System; multitask software with: Graphic interactive editing & boring optimization program.Features -- 14" VGA Color monitor; MHZ processor; 64 MB SDRAM; 6.4 GB hard drive; 56 K modem, 1.44 MB floppy & CD ROM drives; Ethernet card; serial port; mouse; RS-232 port for remote programming from an office PC is possible -- Software includes: Realization of profiles & parametric drawings; graphic basic macros for simple & complex elaboration; graphic visualization of the surfaces to be machined; IN/OUT diagnostic; programming for drilling & routing operations with machine settings & tool editor.Includes -- Vacuum Pump.NOTE: Description based on Model Type, manufacturer's plate, and information from Seller; please inspect to confirm the required specifications. Dimensions & Weight data are based on: 3rd Party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

MASTERWOOD PROJECT 313 CNC MACHINING CENTER (W/ACT/BORING): -- Specifications:Working Capacity:"X" Axis 3,080 mm (121"), "Y" axis 1,100 mm (43") width; -- Positioning Speed:Programming speed in X-axis 197 FPM (60 MPM), Y-axis 162 FPM (49 MPM), Z-axis 58 FPM (18 MPM). -- Boring unit:(13) independent vertical spindles, (9) in X-axis, (5) in Y-axis; (4) horizontal spindles with (1 + 1) in X-axis for edge boring in the left- & right-hand panel edges. -- Machining:(1) 7.5 HP (5.6 kW) high speed router (1,000 - 24,000 RPM) by frequency inverter; 1.5 HP (1.1 kW), 6,000 RPM grooving saw with manual rotation for X-axis or Y-axis; -- Work Table: (6) moveable support rails with (2) vacuum cups ea., double zero settings, (6) pneumatic backstops and (2) pneumatic side stops creating (2) working zones. -- Operator & Machine Control:TECNOSUD "K68800" Microprocessor control for (3) axis, lineal, circular, and helical interpolation. Equipped with 14" color video graphic monitor, keyboard for data entry, 1.44 MB floppy disk drive, 64K RAM, RS-232 for possible connection to office PC, all mounted in separate free-standing control cabinet; features to run CPL/Parametric "TRIG" programming and "Spline" CAD/CAM. -- Complete with: Dual zone vacuum pump. Ontario Hydro approved electrics. -- Actual Model is MASTERWOOD PROJECT 313

MATTISON - 404, ...Straight Line Rip SawSpecifications: -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.), 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from saw to left edge of table. -- 24-1/4" Between saw & column, and 24" rip distance to right of gauge. -- Top roller holddown with 7-1/2" shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features: -- Overhead cutting design with single cast chain links. -- Chain with automatic oil lubrication.. --4-Speed Feed: 62 - 93 - 124, & 186 FPM.

MATTISON - 202, ...Straight Line Rip SawSpecifications: -- 15 HP - 3,400 RPM Saw arbor motor, 9" - 14" max. blade capacity, 1-1/2" diameter arbor, overhead arbor design. -- 4" Max. depth of cut, 13" min. stock length, 24" max. rip capacity to the right of the blade, 77" x 65" table size.Equipped with & Features: --Overhead holddown with: (6) Pressure rollers, (3) front and (3) back; 2 HP feed drive, (4) feed speeds of 56 - 84 - 112 & 168 FPM (fixed at 25 FPM ).

MATTISON - 202: Straight Line Rip SawSpecifications -- 15 HP - 3,400 RPM Saw arbor motor; 9" - 14" max. blade capacity; 1-1/2" diameter arbor; overhead arbor design. -- 4" Max. depth of cut: 13" Min. stock length; 24" max. rip capacity to the right of the blade; 77" x 65" table size.Equipped with & Features --Overhead holddown with: (6) Pressure rollers; (3) front and (3) back; 2 HP feed drive; (4) feed speeds of: 56 - 84.Note from the seller : Chain and lead guides are in very good condition.

MATTISON - 404: Straight Line Rip SawSpecifications -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.); 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from: Saw to left edge of table. -- 24-1/4" Between saw & column; 24" rip distance: To right of gauge. -- Top roller holddown with: 7-1/2" Shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features -- Overhead cutting design with: Single cast chain links. -- Chain with: Automatic oil lubrication. -- Variable feed speed.NOTE from Seller: Saw will give an 8-foot glue line!

MATTISON - 202: Straight Line Rip SawSpecifications -- 15 HP - 3,400 RPM Saw arbor motor; 9" - 14" max. blade capacity; 1-1/2" diameter arbor; overhead arbor design. -- 4" Max. depth of cut: 13" Min. stock length; 24" max. rip capacity to the right of the blade; 77" x 65" table size.Equipped with & Features --Overhead holddown with: (6) Pressure rollers; (3) front and (3) back; 2 HP feed drive; (4) feed speeds of: 56 - 84.

MATTISON 229 Push Feed Moulder4-Head Push Feed Moulder, 4" x 10" capacity. -- Head sequence: 10 HP Top head, 10 HP left head, 10 HP right head, 10 HP bottom head. -- 20 HP feed motor. -- 2-1/8" dia. top and bottom spindles; 1-13/16" dia. left and right spindles. -- Includes (6) extra heads that go with the machine.Approximate dimensions of 11 feet long, 4.5 feet deep, and 5.5 feet tall. The machine weight is approx. 5 Tons.

MATTISON - 69- 54: Automatic Lathe -- 54" Length capacity with working dimensions: 4" x 4" Max. x 3/4" x 3/4" min. -- Hopper feed with: Automatic chucking and pop-up. -- Spindle drive: 25 HP Motor; spindle dia.: 2-5/8"; arbor speed: 2,700 RPM. -- Feed rates: 2 - 45 RPM; Variable feed speed and double-end drive.NOTE: Lot of additional knives & heads available at additional cost.

MATTISON - 69-42 MATTI-MAX: Heavy-Duty Automatic Rotary, high production Turning Lathe with Hopper FeedMicroprocessor controlled for quality turnings and ease of setup; 42" long turning cap. with rotating rear arbor; 4" x 4" max. and 3/4" x 3/4" min. stock size. -- Drives & Speeds: Equipped with: 25 HP - 2,700 RPM Cutterhead Drive; 2-5/8" dia. arbor with variable speed. -- 2 - 45 RPM Stock rotational speed with: 1.5 HP DC Drive (reversing) & self-contained hydraulic unit for precise feed control.Complete with: -- Automatic hopper feed; MATTI-MAX microprocessor-based PLC Controller with keypad entry; machine functions & operation parameters are set directly from the control; RPM of workpiece & feed rate can be programmed to vary during the cut.Matching the feed rate to the stock rotational speed produces an efficient cut.Features -- MATTI-MAX Allows rough cutting at higher speeds (especially rounding of corners) and fine finish cutting at slower speeds. -- Pneumatic tailstock with: Dual pressure to ensure penetration of spur center at high pressure and can be adjusted lower for small dia. turnings. -- Total electrical load: 26.5 HP. -- Setup Stand.NOTE: Large quantity of knife & heads available for additional cost.

MATTISON 69-42 MATTI-MAX Heavy Duty Automatic Rotary, high production Turning Lathe.Microprocessor controlled for quality turnings and ease of setup; 42" long turning cap. with rotating rear arbor, 4" x 4" max. and 3/4" x 3/4" min. stock size. -- Drives & Speeds: Equipped with: 20 HP - 2,700 RPM Cutterhead Drive, 2-5/8" dia. arbor with variable speed, 2 - 45 RPM stock-rotational speed via 1.5 HP DC drive (reversing) & self-contained hydraulic unit for precise feed control.. -- Complete With: Automatic hopper feed; MATTI-MAX microprocessor-based PLC controller with keypad entry; machine functions & operations parameters are set directly from the control; RPM of workpiece and feed rate can be programmed to vary during the cut. Matching the feed rate to the stock-rotational speed produces an efficient cut -- Features: MATTI-MAX also allows rough cutting at higher speeds (especially rounding of corners) and fine finish cutting at slower speeds. . Pneumatic tailstock with dual pressure to insure penetration of spur center at high pressure and can be adjusted lower for small dia. turnings. -- Total electrical load 27 Amps.

MATTISON - 404: Straight Line Rip SawSpecifications -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.); 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from: Saw to left edge of table. -- 24-1/4" Between saw & column; 24" rip distance: To right of gauge. -- Top roller holddown with: 7-1/2" Shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features -- Overhead cutting design with: Single cast chain links. -- Chain with: Automatic oil lubrication. -- Variable feed speed -- Cater Laser.

MATTISON - 404: Straight Line Rip SawSpecifications -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.); 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from: Saw to left edge of table. -- 24-1/4" Between saw & column; 24" rip distance: To right of gauge. -- Top roller holddown with: 7-1/2" Shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features -- Overhead cutting design with: Single cast chain links. -- Chain with: Automatic oil lubrication. -- Variable feed speed

Mattison 404 Rip Saw Seller was using until they upgraded to a gang rip. Ready to ship.

Mattison 404 Straight Line Rip 230 Volt 3 Phase 25 HP Total 230/460 Dual Voltage on 20HP Mandrel Motor

Mattison 202 Straight Line Rip

Description Mattison "55-F" Turning Lathe - Back Knife 30" Cap. in length and 4" x 4" cap. dia. - Pneumatic feed; rear arbor with cutter-head driven by a 10 HP V-belt motor. Work piece rotation is belt driven by main motor with variable speed gear box, double end drive, mechanical feed of work piece into cutter head. Rear dust shroud with collection outlet.

MATTISON - 404, ...Straight Line Rip SawSpecifications: approx.20HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.), 1-1/2" dia. arbor; 4" thickness capy. -- Table size: 65" x 77" Long. -- 30" Distance from saw to left edge of table. -- 24-1/4" Between saw & column and 24" rip distance to right of gauge. -- Top roller holddown with 7-1/2" shortest stock handled under (1) roll, 15" under (2) rolls.Equipped with & Features: -- Overhead cutting design with single cast chain links. -- Chain with automatic oil lubrication. -- 2 HP Feed motor with (2) feed speeds of 50 & 100 FPM

The Rip Saw is still in good running condition and still in use.
