Moulders For Sale

Good Condition 230V 60Hz

WEINIG UNIMAT 23 ATS, 6 HEAD MOULDER6-Head (B-R-L-T-T-B), working capacity 9-1/16" x 6" profiling. -- Head sequence: Bottom 10 HP, right & left by 15 HP, top 20 HP, top 15 HP and bottom 15 HP motor; Spindle dia. 40 mm with cutterhead speed of 6,000 RPM. -- WEINIG ATS (Automatic Tool Setting), Storage for up to (99) profiles; automatic positioning (radially) of left and top spindles (linked). -- Mechanical digital readouts on all other spindle adjustments for both axis, radial adjustment only on 1st bottom head. -- Motorized feed beam adjustment with independent adjustment of top heads, Receding chip breakers on left and top heads. -- Feed motor 7.5 HP, variable speed 18 - 118 FPM, overhead feed wheels with pneumatic pressure, (2) powered rollers in machine table. -- Large tool cutting circles, table plates adjustable to the cutting circle on vertical spindles with axial adjustment of 3-1/8" for multiple profiles. -- Infeed straightening table 2 M (6'6") with adjustable fence & adjustable outfeed table. Side pressure roller mounted to infeed table. -- Includes: Central lubrication, full sound/safety enclosure, manual bed lubrication pump.

1st Head – Bottom– 40mm spindle – 11kw 8,000 RPM • Electronic digital display for radial adjustment Marathon Coating Table plates 2nd Head – Right – 40mm Spindle – 11kw 8,000 RPM 3rd Head – Left – Powerlock Spindle – 15kw 8,000 RPM Pressure shoe in front of left tool holder, incl. 2 lateral Pressure rollers, pneumatic. Vario hood (2 axes) Central adjustment of the pressure and guide elements before and after Left tool holder incl. electronic digital display. 4th Head – Right – Powerlock – 11kw 8000 RPM 5th Head – Top – Powerlock – 15kw 8000 RPM Vario hood (2 axes) Central adjustment of the pressure and guide elements before and after Upper tool holder incl. electronic digital display Split pressure shoe in front of upper tool holder, pneumatic Oscillating axial adjustment 6th Head – Top – Powerlock – 11kw 8000 RPM Vario hood (2 axes) Central adjustment of the pressure and guide elements before and after Upper tool holder incl. electronic digital display Split pressure shoe in front of upper tool holder, pneumatic Oscillating axial adjustment 7th Head – Bottom – Powerlock – 11kw 8000 RPM 8th Head – Right – Powerlock – 11kw 8000 RPM An additional pressure roller from above opposite 3rd right Tool holder, swing away for easy Tool change, pneumatic 9th Head – Left – Powerlock – 11kw 8000 RPM Vario hood (2 axes) Central adjustment of the pressure and guide elements before and after left Tool holder incl. Electronic digital display. Frequency controlled feed, 11 KW (6-36m/min 5 meter in-feed table Automatic lubrication pump Two driven rollers in the machine table, hardened Pressure rollers from above, pneumatic PowerCom Plus Software CNC controlled adjustment and positioning. Axial CNC – controlled adjustment and positioning of the Tool holders in connection with the Memory function or PowerCom. For tool holder no. • 2,3,4,5,6,7 Radial CNC – controlled adjustment and positioning of the Tool holders in conjunction with the memory function or PowerCom. For tool holder No. 3,4,5,6,7 CNC – controlled adjustment and positioning of the feed Automatic central lubrication of the oscillating Tool holders Two interior lights in the safety hood Comes with new Transformer.

Weinig Unimat 22AL Electrical Panel

WEINIG - U 1000: Feed Through Moulder6-Head (B-R-L-T-T-B); working cap. of 9-1/16" x 4-3/4".Specifications -- Head sequence: Bottom 10 HP; right 15 HP; left 15 HP; top 25 HP; top 20HP; bottom 20 HP motor. - All spindle motors with mechanical brakes. -- WEINIG Memory Redial system allows for: Storage of over (200) separate profiles; electronic LED readouts for all spindles, chipbreakers; pressure elements. -- Spindle dia. of 1-13/16"; spindle #1 at 6,000 RPM; spindles #2 - #5 at 8,000 RPM with high precision bearings; adjustment of vertical spindles: 3-1/8" Axially. Feed -- Motorized feed beam adjustment with independent adjustment of top head; cutting circles 8-7/8" on spindles #2 - #5. -- Variable feed speed from: 20 - 118 FPM; 10 HP inverter controlled Cardan feed drive; overhead feed wheels with pneumatic pressure. -- Vertical spindles with: Adjustable table plates to cutting circles; hardened infeed bed plates before & after 1st bottom head. -- (1) Powered table rollers in bed at outfeed. -- Infeed straightening table 2 M (6-1/2') with: Adjustable fence and adjustable table at outfeed; chromed tables and fences. Central location of lubrication points; electromagnetic interlocking of safety hood; manual WAXILIT pump. -- Complete with: Axial adjustment of feed roller opposite left spindle & (1) light inside sound enclosure; all setup tools, manuals and spacers.

WEINIG - UNIMAT 10005-Head (B-R-L-T-B), 9-1/16" x 4-3/4" cap. -- Head sequence: Bottom 10 HP; right 15 HP; left 15 HP; top 25 HP; 20 HP motor. -- WEINIG "Memory Re-Dial" System with: Storage of (100) separate profiles; electronic LED readouts for all spindles. -- Spindle dia. 1-13/16" with Cutterhead speeds: Spindle #1 at 6,000 RPM; spindles #2 - #5 at 7,000 RPM with high precision bearings & mechanical spindle brakes; adjustment of vertical spindles 3-1/8" axially. -- Electronic LED readouts for: Chip breaker & pressure elements for top spindles. -- Cutting circles: 8-7/8" On spindles #2 - #5; vertical spindles with adjustable table plates to cutting circles; hardened infeed bed plates before-and-after 1st bottom head. -- Motorized feed beam adjustment; variable feed speed from: 20 - 118 FPM; 10 HP inverter controlled Cardan feed drive, overhead feed wheels with pneumatic pressure. -- (1) Powered table roller in bed at outfeed. -- Infeed straightening table 2 M (6-1/2') with adjustable fence; adjustable table at outfeed. -- Equipped with: Central location of lubrication points; side pressure roller at infeed; manual Waxilit pump; (2) lights inside sound enclosure. -- Includes Set-Up Stand.NOTE: Machine is in good running condition, but electric brakes are not functional; does not affect running or performance.

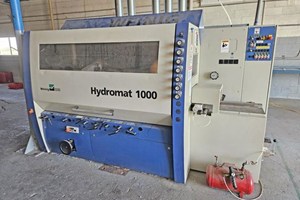

WEINIG - HYDROMAT H 1000: Moulder (Feed Through)5-Head (B-R-L-T-B); working cap.: 9-1/16" x 6-5/16" capacity. -- WEINIG - H 1000. Spindle sequence: Bottom 15 HP; right 10 HP; left 10 HP; top 20 HP; bottom 15 HP motor. -- Spindles: Dia. of 1-13/16" with cutterhead; speeds of 1st head: 6,000 RPM; 2,3,4,5, at 8,000 RPMs; mechanical digital readouts on all spindle adjustments. Pneumatic pressure elements on left & top head chip-breakers. -- Feed drive: Variable feed speed from 20 - 120 FPM; all feed wheels driven and with pneumatic pressure. -- Central lubrication: Automatic table lubrication pump; machine prepped for lateral feeder; sound enclosure; safety hood with: (1) Inside lights.

WEINIG UNIMAT 23EL Feed Through Moulder: 6-Head (B-R-L-T-T-B), working capacity 9-1/16" x 4-3/4". -- Head sequence: Bottom 15 HP, Right 15 HP, Left 15 HP, Top 25 HP, Top 25 HP and Bottom 15 HP motor. -- Spindles: dia. 40 mm with cutterhead speed of 8,000 RPM. WEINIG ATS (Auto-Tool Setting) for left and right spindle. All other settings with mechanical readouts. -- Feed System: 7.5 HP variable feed drive, feed speed 18 - 118 FPM. (4) Powered machine table rollers. -- Includes: Central lubrication at front side of machine and side pressure roller at mounted at infeed table. Infeed table 2 M (6'-6") with manual table lubrication pump. Infeed fence with rollers for addition of hopper feeder.Note: The electronic brake is not working on (1) side and and the feed motor

Weinig 4-Head Moulder 1-1/2" Spindles Full set of cutterheads 230 volt 3-phase

WEINIG - POWERMAT 1000 Feed Through Moulder Package with "R-960" Grinder and "POCMS" Stand 6-Head (B-R-L-T-B-U); working cap. 9-1/16" x 4-3/4".Head sequence: Bottom 10 HP; right 15 HP; left 15 HP; top 25 HP; bottom 20 HP; universal 10 HP motor. - ALL motors with electronic brakes. WEINIG Touchscreen "Power Com" software system features: Profile drawing storage; profile dimensions; tool changes; production optimization. Electronic LED readouts for: All toolholder settings including: Chip breakers & pressure elements.Spindle Configuration Spindle #1: 1-13/16" With cutterhead speed of 8,000 RPM; Power-Lock tool holders: #2 - #5 With cutterhead speed of 12,000 RPM & toolholder #6: Variable speed 4,000 - 12,000 RPM. Adjustment of vertical tools 2-3/16" axially. Motorized tool positioning radial & axial on toolholders #2 - #5; motorized feed beam adjustment with independent adjustment of top head; top head with independent adjustment of chip breaker & pressure element. Variable feed speed from: 20 - 120 FPM; 10 HP inverter controlled Cardan feed drive; overhead feed wheels with pneumatic pressure. Vertical tools with: Adjustable table plates to cutting circles; hardened infeed bed plates before & after 1st bottom head. Equipped with: Chromed tables & fences; (2) powered table rollers in bed; (1) between bottom & universal spindles; (1) at outfeed. Infeed straightening table: 2 M (6-1/2').Central location of lubrication points; electromagnetic interlocking of safety hood; automatic table lubrication pump; (2) lights inside reinforced sound enclosure & phone modem. This machine included (60) various size Heads & Measuring Stand with PowerCom computer.

Model 206 For smooth moulding and planing; (1) 2 HP Baldor motor, 7,000 RPM spindle speed, variable feed rate of 1 - 19 FPM includes "Deluxe" variable feed control with magnetic drop out switch and cords. Built in Multi-Pass system and Guide sytem -- Capacity: Max. material width 7", material thickness from 3/4" to 8" max., min. 9" stock length. Max. profile depth 3/4" and max. profile width 6-3/4", planes 7" wide and can do a 7" radius with optional jig; working height 31", overall height 45", overall width 20". -- Includes: Table guides, dust hood, belt, pulley, planing knives, welded steel stand, custom moulding catalog, oil, and operator's manual. -- With OPTIONAL accessories like the elliptical jig you can make arches and elliptical mouldings, please add...$ 700. Also available in 115/1/60 and 230/460V/3/60. Weight: Approx. 242 Lbs.

Manufacturer’s Soecification Feed Type:0-19 fpm, variable feed Motor:2 HP (3450 rpm) Voltage:240V Maximum Profile Depth ¾ inMinimum Stock Length 9 inMaximum Profile Width 6 ¾ inMinimum Stock Thickness ¼ in Maximum Height Above Final Cut 3/16 in Maximum Stock Thickness 8 in Planes 7 in WideOverall Machine Dimensions:28 inL x 22 inW x 50 inHWorking Height:35 in

WILLIAMS & HUSSEY Planer/MoulderSmooth moulding & planing; used for making: Custom trim, molding, & millwork. Creates a variety of moldings, plus oval & round frames and curved-top frames.Specifications. (1) 2 HP BALDOR Motor; 3,450 RPM spindle speed; feed rate: 15 FPM.Capacity: Max. material width 6"; material thickness from: 3/4" - 8" Max.; min. 9" stock length. - Max. profile depth: 3/4"; max. profile width: 6-3/4"; planes: 7" wide & 7" radius with: Optional jig; working height: 31"; overall height: 45", overall width: 20".NOTE: Specifications based on Model "154" & listed electrical plate; exact model is unknown/not on machine.

Woodtech Heavy Duty Moulder Models: WTM-330 – 12” wide – available in 4, 5 or 6 head configurations.WTM-260- 10” wide – available in 4, 5 or 6 head configurations. WTM-230 – 9” wide – available in 4, 5 or 6 head configurations.WTM-200 – 7” wide – available in 4, 5 or 6 head configurations. Electrical Requirements: Operating voltage: 460 Volt/60Hz/3 Phase Features Available: Outboard bearings on WTM-330 Pneumatic hold-downs, and side pressurePLC controlled – LCD readout Heavy duty drive motorsBelt driven spindlesAuto Lubrication Optional: Automatic Infeed Table 7000 RPM 1st Spindle - 15 HP 2nd Spindle - 15HP 3rd Spindle - 15HP 4thSpindle - 255HP 5th Spindle - 25HP 6th Spindle - 15HP 480V 3Phase Schneider Electronics

Woodtech Heavy Duty Moulder Models: WTM-330 – 12” wide 6 head configurations. Electrical Requirements: Operating voltage: 460 Volt/60Hz/3 Phase Features Available: Outboard bearings Pneumatic hold-downs Side pressure PLC controlled LCD readout Heavy duty drive motorsBelt driven spindlesAuto Lubrication Optional: Automatic Infeed Table 7000 RPM 1st Spindle - 15 HP 2nd Spindle - 15HP 3rd Spindle - 15HP 4thSpindle - 255HP 5th Spindle - 25HP 6th Spindle - 15HP 480V 3Phase Schneider Electronics

The frame is a massive, compact and solid casting which takes less floor space for its capacity The feed drive is built to stand up under the hardest kind of services The feed rolls are of such design that the advantages of the open side type of construction are combined with of the advantages of the inside The top and bottom head assemblies are of the most substantial construction The top head chip breaker is made of chilled cast iron section, each section being spring loaded and adjustable The side head spindles are short and of large diameter The side head chipbreaker moves in and out with the head and is also provided with an additional screw adjustment for close setting The bedding is continuous throughout the entire length of the machine

ZEETECH - 200, ...Universal Hopper Feeder that can be mounted to all Moulders. - Capacity: 3/4" - 9-1/2" width, 0.38" - 5" max. material height, 10" min. length. -- Oil-free air operated drive unit mounted on THOMPSON hardened ways, damped drive travel, positive sensing sequencing actuator. -- Variable speed range from 0 - 120 FPM @ 80 - 120 PSI. -- Includes: All air logic controls (no power required) and air filters; easy to install.
