Panel Saws For Sale

Nice Altendorf 12=14" TKR 90 Sliding Table Saw, owner is retiring 14" blade with scoring 7.5HP Motor 3 Phase

Altendorf WA6 Sliding Table Saw Adjustable Scoring Blade Single phase - 230 V Overhead guard

Altendorf F45 Slider

Altendorf F45 Elmo Sliding Table Saw

Capacity overall cutting length 3200 mm (128"). Cutting height 100 mm saw blade projection. 18 HP main and 3.6 HP scoring motor. Modular roller rear machine table. Side aligning device for squaring ripped strips out to 74". Variable saw carriage travel speed 0-328 FPM. 328 FPM return. Electronically controlled overhead program fence. Rack & pinion driven. Forward speed 196 FPM. Return speed 196 FPM. 6 clamps (open up to 100 mm), of which (2) are closely spaced in crosscut area for strip handling and the other (4) are at equal distance in rip cut area. AC Servo motor drives on both saw carriage and pusher fence. "Gateway" PC controller w` monitor and >assist line> w`LED readout integrated into high tech look operator control panel (displays cutting dimensions & patterns). Data input by keyboard or direct downloading from office PC. Side Crosscut aligner. "Quick Change" saw blade replacement system. (3) front mounted air floatation tables with patented rounded front for moving panel from rip to crosscut position (24" x 79" each).

CAIN - 360-10H, ...120" Front-Load Automatic Panel SawSpecifications -- 120" Cutting length; 18" diameter Blade.Equipped with: -- (1) 24" x 48" Infeed table; (1) 24" x 120" table with backstop.Dimensions: 228" x 180" x 66" H

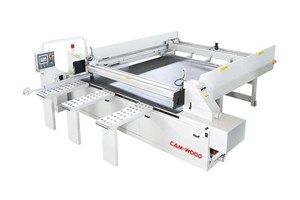

CAM-WOOD TX-P10AAT FRONT LOAD AUTOMATIC PANEL SAW: Shop Saw -- Specifications: 128" (3,250 mm) Max. rip cut cap. & 128" (3,250 mm) max. pull-back front/back; 10 HP (7.45 kW) saw blades motor, 1" dia. arbors,4" (101 mm) max. depth of cut with 355 mm (13.9") dia. blade at 4,500 RPM,160 mm (6.3") scoring blade at 6,000 RPM blade speed. -- Positioning Speed:2 HP Saw carriage drive motor, variable cutting speed from 16 - 98 FPM (5 - 30 MPM), return speed of 98 FPM (30 MPM). -- Pusher Fence: Programmable rear material push fence with servo drive, made of square tubular steel bar;0.5 HP pusher motor, rack & pinion drive, 16 - 49 FPM (5 - 15 MPM) speed. -- Operator & Machine Control:PC Controller with touch-screen to program cutting patterns or individual line cutting operation, graphic displays, self-diagnostics, machine parameter list; touch-screen keypad for data entry. -- Complete with: (3) Bakelite covered front support tables and fully covered rear table; (optional air flotation tables available at additional cost)(4) Dust collector outlets, (1) on each end of the saw base, (1) on the right side at cut-line height, and (1) on the right-hand side on top of the pressure beam. -- Available Options: &#9679 (1) TX-ATSA AUTO SIDE ALIGNMENT DEVICE = $2,300.00 additional cost; &#9679 (3) TX-PFT AIR FLOATING TABLES = $3,690.00 additional cost. -- Actual Model is CAM-WOOD TX-P10AAT

CAM-WOOD TX-P12AAT FRONT LOAD AUTOMATIC PANEL SAW: -- Specifications: 149.6" (3,800 mm) Max. rip cut cap. & 149.6" (3,800 mm) max. pull-back front/back; 10 HP (7.45 kW) saw blades motor, 1" dia. arbors,4" (101 mm) max. depth of cut with 355 mm (13.9") dia. blade at 4,500 RPM,160 mm (6.3") scoring blade at 6,000 RPM blade speed. -- Positioning Speed:2 HP Saw carriage drive motor, variable cutting speed from 16 - 98 FPM (5 - 30 MPM), return speed of 98 FPM (30 MPM). -- Pusher Fence: Programmable rear material push fence with servo drive, made of square tubular steel bar.0.5 HP pusher motor, rack & pinion drive, 16 - 49 FPM (5 - 15 MPM) speed. -- Operator & Machine Control:PC Controller with touch-pad to program cutting patterns or individual line cutting operation, graphic displays, self-diagnostics, machine parameter list; touch-screen keypad for data entry. -- Complete with: (3) Bakelite covered front support tables and fully covered rear table; (optional air flotation tables available at additional cost)(4) Dust collector outlets, (1) on each end of the saw base, (1) on the right side at cut-line height, and (1) on the right-hand side on top of the pressure beam. -- Available Options: &#9679 (1) TX-ATSA AUTO SIDE ALIGNMENT DEVICE = $2,300.00 additional cost. &#9679 (3) TX-PFT AIR FLOATING TABLES = $3,690.00 additional cost. -- Actual Model is CAM-WOOD TX-P12AAT

CAM-WOOD TX-P330X FRONT LOAD AUTOMATIC PANEL SAW: "High Production Saw" -- Specifications: 126" (3,200 mm) Max. rip cut cap. & 126" (3,200 mm) max. pull-back front/back; 15 HP (11.2 kW) saw blades motor, 1" dia. arbors,3-1/8" (82.5 mm) max. depth of cut with 355 mm (13.9") dia. blade at 4,500 RPM,180 mm (7") scoring blade at 6,000 RPM blade speed. -- Positioning Speed:2 HP Saw carriage drive motor, variable cutting speed from 16 - 150 FPM (5 - 46 MPM), return speed of 100 FPM (30 MPM). -- Pusher/Gripper Fence: Programmable rear material push/gripper fence with AC servo drive, 1 HP pusher motor, rack & pinion drive, 16 - 80 FPM (5 - 24 MPM) speed. -- Operator & Machine Control:PC Controller with touch-screen to program cutting patterns or individual line cutting operation, graphic displays, self-diagnostics, machine parameter list; touch-screen keypad for data entry. -- Complete with: TX-ATASA automatic side alignment device, (3) Bakelite covered front support tables and fully covered rear table; (optional air flotation tables available at additional cost)(4) Dust collector outlets, (1) on each end of the saw base, (1) on the right side at cut-line height, and (1) on the right-hand side on top of the pressure beam. -- Available Options: &#9679 (3) TX-PFT AIR FLOATING TABLES = $3,690.00 additional cost. &#9679 (1) TX-P3SB THIRD JUMP SCORING UNIT = $4,290.00 additional cost. &#9679 (1) PC BASE CONTROL (Optional with OPTIMIZE SOFTWARE) = $4,890.00

CAM-WOOD TX-P10A Front-Load Manual Panel SawSpecifications: -- 128" Max. rip cut cap. & 128" max. front/back, 10 HP saw blades motor, 1" dia. arbors; -- 4" Max. depth of cut with 355 mm (13.97") dia. blade at 4,500 RPM, 160 mm (6.30") scoring blade at 6,500 RPM blade speed. Features: -- 1 HP Saw carriage drive motor, variable cutting speed from 16 - 98 FPM, return speed of 98 FPM. Equipped with: -- (2) Flip stops and (2) air cylinder stops on fence; (3) front support tables (optional air tables available - add $ 3,690), Steel rear tables. -- (3) Dust collector outlet/connections, (1) on each end of the saw base, and (1) on the right-hand side at cut-line height.

GABBIANI GT 2 115 38/38 REAR LOAD AUTOMATIC PANEL SAW: -- Specifications:Working capacity 149.6" (3,800 mm) Rip & Cross-cut pull-back. Main saw blade projection is 4.5" (115 mm).30 HP (22.4 kW) Inverter driven, variable RPM main motor & 3 HP (2.2 kW) scoring motor. Automatic exclusion of scoring unit. Pneumatic quick-change system for blades -- Saw carriage: Feed speed from 3 - 492 FPM (1 - 150 MPM), return speed of 492 FPM (150 MPM.Automatic cutting stack height & length limiter adjusts according to the program dimensions. Automatic saw carriage lubrication. -- Pusher Fence: 0 - 230 FPM (0 - 70 MPM) Forward positioning speed, 230 FPM (70 MPM) return speed.Rack & pinion movement on both sides to assure the pusher remains parallel. (8) Total Material gripper clamps, with (4) of the grippers in the cross-cut section independent & programmable according to the cutting pattern.All gripper clamps open to 4.5" (115 mm); -- Operator Interface:PC Front-end controller with SCM "MaestroCUT" + Windows operating system.21" LCD "Touch Screen" monitor display with real-time graphics + function control keypad. Virtually unlimited program storage via USB ports; RS-232 serial port, keyboard, mouse.Maestro software features machine functions, programming, run time, diagnostics, production reports, imports, language and unit of measurement, optimization cut software (Maestro Pattern)Maestro Cut 3D editor: Label printing software, 3D simulator, graphic editor, panels editor, cutting editor for figured panels, semi-automatic macro.Easy Import: This software imports from an Excel file all data related to part of a cutting list previously selected by the user to Maestro Pattern, Diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches. All enclosed in an air-conditioned control cabinet. -- Rear Lift Table:4-Post screw type powered rear load lift table 149.6" x 63" (3,800 x 1,600 mm); max stack height 23.62" (600 mm) without a pit or risers; -- Complete with: Automatic Side alignment device. Min. part width 2.36", Max. part width 149". Automatic saw blade height adjustment. "Quick-change" blade system. (4) Air support tables 78" x 24" (1,981 x 609 mm), with (1) common blower. -- Options Include:Zebra label printer. Powered Rear In-Feed conveyor with fork cutouts. -- Actual Model is GABBIANI GT2 115 38/38

Giben Panel Saw

6' x 14' capacity 4 HP motor 220 volt 3 phase stop system on base

HENDRICK PETS Overhead Rail Panel Saw -- 8' Max. cutting cap.; 7.5 HP saw motor; 5-1/4" cutting capacity and 1" Dado Capacity. -- Carriage rides on 2" dia. hardened steel precision ground rails; 16" dia. blade capacity. -- 0 to 50 FPM infinitely variable D-C carriage drive; push button control console including separate controls for forward and reverse carriage drive.

Holz-her Vertical 1265 Vertical Panel Saw

HOLZ-HER CUT 85 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications:4,250 mm (167") Max. rip cut cap., 3,800 mm (149") pull back pusher stroke; 97 mm (3.8") saw blade projection.15 HP (11 kW) Main saw motor, 3 HP (2.2 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 328 FPM (1 - 100 MPM ), return speed of 328 FPM (100 MPM).Automatic cutting length limiter adjusts the cutting length at the end of the workpiece, automatic saw carriage lubrication. -- Pusher Fence:(7) Material gripper clamps; 259 FPM (80 MPM) forward positioning speed, 259 FPM (80 MPM) return speed.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with CUTCONTROL "Direct Cut" + "OPTIPRO" + Windows 2000 operating system,15" TFT Display with unlimited program storage via floppy disk, keypad for data entry, USB & RS-232 serial port, CD ROM & 1.44 MB disk drive for additional storage of programs.CUTCONTROL offers Real-Time Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."Direct Cut" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."OPTIPRO" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting. -- Complete with: Rear roller support rails; automatic crosscut side aligner; automatic saw blade height adjustment.(3) Air support tables, ea. 78" x 24" (1,981 x 509 mm). -- Actual Model is HOLZ-HER CUT 85 4300.

HOLZ-HER CUT 6220 Dynamic FRONT LOAD, AUTOMATIC PANEL SAW with 20'+ RIP cutting capacity!: -- Specifications: 4,300 mm (169.2") Max. rip cut cap., 6,250 mm (246") pull back pusher stroke; 105 mm (4.1") saw blade projection;28 HP (21 kW) Main saw motor, 3 HP (2.2 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 426 FPM (1 - 130 MPM ), return speed of 492 FPM (150 MPM).Automatic cutting length limiter adjusts the cutting length at the end of the workpiece, automatic saw carriage lubrication. -- Pusher Fence:(10) Material gripper clamps; 82 FPM (25 MPM) forward positioning speed, 328 FPM (100 MPM) return speed.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with "CUTCONTROL 2" + "EasyPlan" + Windows operating system,19" TFT Display with unlimited program storage; keypad for data entry, USB & RS-232 serial port, "CUTCONTROL 2" offers Real-Time 3D Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."CUTCONTROL 2" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials"Opti-Cut" & "EasyPlan" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting -- Complete with: Non Marking rear roller support rails; Solid Air Cushion Table before & after the cutting line, ensures easy panel handling. Pneumatic crosscut side aligner, adjustable from 0" - 82.6" (0 - 2,100 mm);Automatic saw blade height adjustment; Electronic positioning of the scoring blade through the NC control.(4) Adjustable via "pneumatic locking" air support tables, ea. 70.8" x 24" (1,800 x 509 mm); -- Actual Model is HOLZ-HER CUT 6220 Dynamic

HOLZ-HER CUT 6120 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: 3,900 mm (153.5") Max. rip cut cap., 3,900 mm (153.5") pull back pusher stroke; 82 mm (3.2") saw blade projection.15 HP (11 kW) Main saw motor, 1.5 HP (1.1 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 320 FPM (1 - 100 MPM ), return speed of 416 FPM (130 MPM).Motorized bi-directional grooving capabilities with electronic adjustment for 0 mm - 35 mm.Automatic cutting length limiter adjusts the cutting height & cutting length at the end of the workpiece. -- Pusher Fence:(7) Material gripper clamps, (1) Double Finger mounted at the cross-cut fence location for narrow strip cutting & (6) standard clamps. 82 FPM (25 MPM) forward positioning speed, 328 FPM (100 MPM) return speed.Variable pressure settings for delicate materials. Pressure beam has an integrated "Last Cut" operation to achieve a "0" mm panel dimension.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with "CUTCONTROL 2" + "EASY-PLAN" + Windows operating system,19" TFT Display with unlimited program storage; keypad for data entry, USB & RS-232 serial port, "CUTCONTROL 2" offers Real-Time 3D Moving Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."CUTCONTROL 2" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."Opti-Cut" & "EASY-PLAN" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting -- Complete with: Non-Marking rear roller support rails: Solid Air Cushion Table before & after the cutting line, ensures easy panel handling. Pneumatic crosscut side aligner, adjustable from 0" - 82.6" (0 - 2,100 mm). Side aligner is "Fully Automatic" adjustment when panel is less than 1,300 mm (51")"Quick Change" Blade system with automatic saw blade height adjustment; Electronic positioning of the scoring blade through the NC control.(3) Adjustable via "pneumatic locking" air support tables, ea. 70.8" x 23.6" (1,800 x 600 mm); -- Actual Model is HOLZ-HER CUT 6120 Dynamic

Holz-her 1243 Slider Tigerstop Includes: (2) Cutting blades and scoring blades, some misc tooling

Holz-her 1255 Panel Saw Digital Readout capacity 169” x 74” 2.36 depth of cut 3 KW motor rotates 90^
