Edgebanders For Sale

BRANDT KDF 660 Edgebander w/Premilling & Corner RoundingSpecifications -- 0.4 - 15 mm (5/8") Edge cap.; panel thickness 5/16" - 2-3/8"; min. panel length 160 mm (6-3/8") and 65 mm (2-3/8") min. width; -- Line Control (NO limit switches) for workstation function. -- Pressure beam height adjustment for all workstations via digital height indicator. -- PC-20 Program Control with: 12" Industrial PC screen; 256 MB RAM; 1 gB Flash card with USB Port & remote diagnostic link. -- Signal infeed light to insure proper spacing between panels.Equipped with: -- 2-Motor Premill unit; (2) 3 HP motors (12,000 RPM) with straight and chamfer capability; program controlled indexing from straight to bevel. -- Quick heat up glue system (approx. 10 minutes); hopper feeder & glue tank for maintenance & quick glue color change.Glue temperature indicator for both the glue pot and glue roller with LED thermostat and automatic temperature reduction if the machine is idle for (15) minutes or more. -- The glue applicator roller is reversible and retractable from the fence line. -- Automatic magazine for strip & coil (large coil table; 800 mm dia. to accommodate large coils of 3 mm PVC stock); 3 mm PVC guillotine; (1) drive plus (3) secondary rollers "pneumatically controlled" pressure sections. Workstations: -- Double-end trim with: (2) 0.5 HP - 12,000 RPM motors; chamfers 0°- 15° via programmable Controller. -- Top & Bbottom flush/radius trim; bevels 0° - 15° (0.75 HP - 12,000 RPM motor); insert knives for 3 mm PVC radius. -- Corner Rounding Unit. -- Top & Bottom scraping for 3 mm PVC radius; pneumatically controlled indexing system. -- Top & Bottom oscillating buffing (0.25 HP - 2,800 motors). -- Variable feed speed 36 - 65 FPM (3 HP feed motor).

BRANDT - FP 10: Corner Rounding Unit -- SpecificationsFreestanding unit for: Profiling, shaping, chamfering, or rounding most common type & shape of corner/edge on an edgebanded panel. -- Capacity: 55 mm (2-1/8") Max. panel thickness; 90 x 140 mm min. panel size; 3 mm max. edge thickness (depending on radius & edge material).Plunge in & plunge out points for tooling are: Programmable on Operator Control Panel with digital readout. -- Automatically scans profile with: SPS control; handles 90° & 180° symmetric profiles; tracing wheel & shoe follow exact shape contour of edgeband of corner. -- Equipped with: 3/4 HP - 27,000 RPM Motor; pneumatic clamping cylinder; optional 1/4 HP table mounted Buffing Wheel; electro-pneumatic operation with foot pedal control.

BRANDT - KDN 770-2C: EdgebanderSpecifications -- Hot Melt granulate quick heat up glue system; overhead glue tank for easy maintenance & glue color change. -- Automatic magazine for strip & coil: Large 800 mm dia. coil table to accommodate large coils of 3 mm PVC stock; 3 mm PVC guillotine. -- (1) Drive plus: (3) Idle rolls "pneumatically controlled" pressure sections. -- End Trimming: 0.33 HP - 12,000 RPM Motors; chamfers 0° - 15°. -- Flush Trimming. Top & bottom bevels 0° - 15° with: (4) Revolver type index presets; (2) 1/2 HP - 12,000 RPM motors; cutterheads with insert knives.Features -- Fine/Radius Trimming. Top & Bottom; bevels 0° - 15° with: (4) Revolver-type index presets; 1/2 HP - 12,000 RPM motors; cutterheads with: Insert knives for 3 mm PVC radius. -- 2-Motor corner rounding. -- Scraping Unit. Top & Bottom for: 2 - 6 mm Radius; pneumatically controlled blowoff nozzles. -- Buffing Unit: Top & bottom buffing; 1/4 HP - 1,400 RPM motors. -- Variable feed chain track speed from: 8 - 20 MPM (26 - 65 FPM); 2 HP feed drive.NOTE: Description based on: Model Type, manufacturer's plate, and information from Seller. Please inspect to confirm the required specifications. Dimensions & weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

BRANDT - KDF-550 C, ...Edgebander with Premill & Corner RoundingEdge & workpiece capacity. Edge: 0.4 - 8 mm (0.016 - 0.31"); panel thickness: 8 -60 mm (0.31" - 2-3/8"); min. panel length: 60 mm (6.29"); min. panel width: 70 mm (2-3/4").Equipped with: -- Premilling Station with: Diamond cutterheads; (2) motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip free & clean panel edges. -- Infeed fence with: Servo motor positioning. -- Automatic Edge Magazine. For strip & coil stock; strips: 0.4 mm - 8 mm (0.016" - 0.31"); coils up to 3 mm PVC and "HD" guillotine. -- Pressure Section. 1st Roller driven; plus (3) idle rollers; timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed: Variable; 8 - 14 MPM (26 - 46 FPM); 11 MPM (36 FPM) when using contour trimming. -- BRANDT "PowerControl PC 16"; memory: 256 MB RAM; 1 GB Flash Card Drive; Operator control panel with: 22" Color HD wide screen; soft keypad; internal modem for remote diagnostic link.Workstations -- End Trimming; (2) Motors @ 0.35 kW (1/2 HP) 12,000 RPM; automatic chamfer from the control panel: 0°- 15°. -- Flush/Bevel-Fine/Radius Trimming Unit: Top/bottom (2) motors; 0.55 kW (3/4 HP) 12,000 RPM; auto tilt positioning 0° - 25°; combination flush/radius/chamfer cutterheads; horizontal and vertical tracing wheels. -- Includes: (3) Positioning options: Profile 1, profile 2, and flush trimming. -- Corner Rounding Unit: (1) Motor; 0.35 kW (1/2 HP) - 12,000 RPM for leading & trailing edges; vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- Scraping, Multi-Profile (PVC) Top/Bottom with (2) profiles: 1 mm & 2 mm or 3 mm Instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels; PVC scrape collection box. -- Scraping Glue Unit: Flush top/bottom on the panel surface with floating insert knives. -- Buffing Unit: Top/bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM.Complete with: Motorized, programmable holddown pressure beam; padded sound enclosure. -- Actual Model: BRANDT, OPTIMATKDF 550 C

BRANDT KTD 72 ... Contour Edgebander; Features & Specifications: -- Designed for straight & curved edgebanding. 0.5 - 3 mm edge thickness capacity, max. edge height 10 - 60 mm, for 3 mm PVC banding max. edge height 30 mm. Automatic advance of banding material from 13 - 29 FPM, 25 mm min. radius. 7" Minimum workpiece length. -- Small glue pot for quick heat-up, edgebanding turntable for coiled or straight strips, guillotine cut-off. Manual advance of the panel through glue roller. -- Work-piece elevating spacers allow for edgebanding material overhang on the bottom and eliminate the need for templates for contoured parts, simplifying the edgebanding process. -- Edge length cut-off, by foot pedal activation for short runs or pre-selected by digital counter for larger production runs...NOTE: owner states "It needs a new trim knife"

Brandt KTD 65 Edgebander

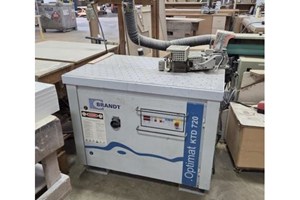

BRANDT KTD 720 CONTOUR EDGEBANDER0.4 - 3 mm (1/8") Edge cap., panel thickness 5/8" - 1-5/8", min. panel length 100 mm (4") and 100 mm (4") min. width. Variable feed speeds 2-14 FPM. -- Gluing/taping unit applies glue to the edging material, presses it onto the workpiece and moves via a motorized system which is guided by the operator. -- Quick heat-up glue system,(approx. 12 minutes) w/glue tank for maintenance & glue color change. Glue temperature indicator for both the glue pot and glue roller with LED thermostat and automatic temperature reduction if the machine is idle for 15 minutes or more. Pre-heating devise for thicker PVC eding is standard equipment to allow material to more pliable. -- Automatic coil cut off devise is supplied to pre-cut the banding material to lenth. -- Vacuum table equipped with (5) pods to secure panels to worktable. -- Also equipped with BRANDT OPTIMAT F13 top and bottom trimmer Sold per pair.

CAM-WOOD EB-L5PM EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 50 mm (0.75" - 2") panel thickness cap. (when edgebanding 3 mm PVC max. thickness is 40 mm). -- Minimum panel dimensions 63.5 mm wide x 160 mm long (2.5" x 6.3"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Motors. -- Top & Bottom Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 25 - 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensures accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at an added cost to convert to desired alternate voltage requirement.

CAM-WOOD EB-M7PM EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 60 mm (0.75" - 2.36") panel thickness cap. -- Minimum panel dimensions 160 mm long x 88.9 mm wide (6.3" x 3.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.7 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 1 HP (0.7 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 1 HP (0.7 kW) - 12,000 RPM. -- Top & Bottom Profile Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 43 / 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensure accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at additional cost to convert to desired alternate voltage requirements.

CAM-WOOD EB-L5 EDGEBANDER0.4 mm - 3 mm Edgebanding thickness capacity, 10 mm (3/8") - 50 mm (1.96") material thickness capacity, 63.5 mm (2.5") minimum part width, 160 mm (6.3") minimum part length. Equipped with: -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine. -- Teflon coated glue pot w/fast (10 - 12) Min heat-up time; 4-liter capacity. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled pressure section with (3) pressure rollers; 1st drive, (2) idle.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. Cutting group moves on rounded ways made of hardened steel, to guarantee high precision and reliability; cutting movement from the top of the panel. -- Top & Bottom Trim station with: (2) 0.75 HP (0.56 kW) - 12,000 RPM High-Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutterhead position by mechanical digital readouts, quick release (electrical & mechanical). Includes (2) 3 mm radius cutters. -- Top & Bottom Buffing unit with (2) 0.50 HP (0.37 kW) - 1,400 RPM motors. Feed & Holddown: -- Feed rate of 12 MPM (40 FPM); feed chain pads with replaceable rubberized surface inserts. -- Special design "track frame" to eliminate feed chain side-to-side movement after years of use. -- Rubberized holddown rollers with ball bearings for low friction and long life. -- Complete with: Sound enclosure protects the operator from noise and debris.

CANTEK MX340M Edgebander (Single Phase):The MX340M from CANTEK is designed to be a compact, and durable edgebander. -- Equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340M Edgebander is operated through a PLC control system with an LED display and keypad.Specifications: -- The MX340M handles panel thicknesses of 0.315" up to 1.77" (8 mm to 45 mm). -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed).Workstations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring loaded double pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.Also available in 220V/3PH/ 60 Hz

CANTEK MX330 EDGEBANDEREntry level edgebander packed with features at an economical price. Heated infeed fence pre-heats the panel for better glue penetrationEquipped with 1.1 kg teflon coated glue pot for granulated glue. (5) glue pot heating elements ensure a quick heat up time.Glue temperature is electronically controlled and is automatically lowered when the machine is not in use. Equipped with: -- Steel serrated glue spindle applied glue to the edge of the material. Pneumatic edgebanding cut off device (max. 3mm) with exclusion from the PLC control,Work Stations: -- Dual saw blade flush end trim. -- Top & bottom trimmers with mechanical digital readouts for accurate and fast adjustment -- Top & bottom buffing units -- User friendly PLC control. Working units can be turned on and off individually when not required. -- Automatic feed by belt feed with (11) adjustable table rollers to ensure workpiece is held against the fence. -- Numerical panel thickness indicator -- Adjustable infeed fence to compensate for edge thickness -- Extendable side support arm for assisting with larger panels -- Coil tape roller support: 800mm capacity -- Belt feed can be opened up for access to machine for blade / buffing wheel change & machine maintenance. --Comes with casters which can be mounted to allow you to move the machine out of the way when not in use.

CANTEK MX340 Edgebander (Single Phase or 3-Phase)The MX340 from CANTEK is designed to be a compact, and durable edgebander. -- This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340 Edgebander is operated through a PLC control system with an LED display and keypad.Specifications: -- The MX340 handles panel thicknesses of 0.315" up to 1.77" (8 mm to 45 mm). -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed).Work stations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring loaded double pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.

CANTEK MX340M EDGEBANDERThe MX340 from CANTEK is designed to be a compact, and durable edgebander.Specifications: -- This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340 Edgebander is operated through a PLC control system with an LED display and keypad. -- The MX340 handles panel thickness of 0.315" up to 1.77" (8 mm to 45 mm), -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed). --Work stations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon-coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring-loaded double-pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.

CANTEK - MX340, ...Edgebander (Single Phase)The CANTEK "MX340" is designed to be a compact and durable Edgebander. -- Equipped with: End trimming, flush trimming, PVC scraping, and buffing. -- Edgebander is operated through: PLC Control System, LED display, and keypad.Specifications -- Panel thickness cap.: 0.315" to 1.77" (8 mm to 45 mm). -- Edgebanding coil feed accepts: 0.4 mm -3 mm Thick; strip material can be hand-fed. -- Conveyor feed speed: 29-1/2 FPM (fixed).Workstations -- Heated infeed fence for optimum glue penetration; large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine: 3 mm Max. thick banding; followed by spring loaded double pressure rollers. -- Single front/rear trimming unit: 0.3 HP Motor. -- Double top & bottom trimming units: (2) 1/2 HP motors. -- Top & bottom scraper/radius scraper. -- Top & bottom buffing station: (2) 0.16 HP Motors.

CANTEK MX340M Edgebander (3-Phase Phase):The MX340M from CANTEK is designed to be a compact, and durable edgebander. -- Equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340M Edgebander is operated through a PLC control system with an LED display and keypad.Specifications: -- The MX340M handles panel thicknesses of 0.315" up to 1.77" (8 mm to 45 mm). -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed).Workstations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring loaded double pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.Also available in 220V/3PH/ 60 Hz

CASADEI - FLEXA 47 RMA8: Edgebander with Premill & Corner RoundingSpecifications -- 0.4 mm - 3 mm Max. edge thickness cap.; 0.5 mm to 3 mm for solid strip edge thickness. 8 mm - 50 mm (0.3" - 1.97") Panel thickness cap.; thickness is 40 mm when edgebanding 3 mm PVC max.) -- Min. panel dimensions 80 mm wide x 140 mm long (3.15" x 5-1/2"). -- Automatic feed of coil banding & semiautomatic strip fed magazine; strips 1- 3 mm max.; 3 mm PVC cap. guillotine.Equipped with -- TEFLON coated glue pot with: Fast (10 - 12) Min heat-up time; 1 kG capacity. -- Guillotine to cut edgebanding in coils: Up to 3 mm thick. -- Pneumatically controlled pressure section with: (3) Pressure rollers; 1st drive: (2) Idle.Workstations -- Premilling unit with: 3 HP - 8,300 RPM High Frequency motors. -- Cutting group moves on rounded ways made of: Hardened steel to guarantee high precision & reliability; cutting movement from the top of the panel is: Synchronized by PLC control. -- Single-motor, double-end trimming saw unit with: (1) 1/4 HP - 12,000 RPM High Frequency motor. -- Top & Bottom trim station with: (2) 0.45 HP - 12,000 RPM High frequency motors; unit features adjustable copying on: Vertical & horizontal floating movements; adjustable cutterhead position by: Mechanical digital readouts; quick release (electrical & mechanical). -- Includes: (2) 3 mm Radius cutters. -- Corner Rounding Unit: 2-Motor Corner Rounding unit for: Leading & trailing edges. -- Top & Bottom 3 mm scrape station. -- Top & Bottom Buffing unit with: (2) 0.20 HP - 1,400 RPM motors. -- Fixed feed speed: 23 FPM. -- Actual Model - CASADEI FLEXA 47 RMA8

CASADEI FLEXA 27 RMA8 Edgebander (W/PRE-MILL): -- Specifications: FLEXA 27 RMA8: CA1297 Standard equipment: Electrical data: E-Stop on main control panel: 230 V – 3 Ph – 60 Hz. 37 Amps. -- Equipped with:Kit for “NESTING"; processing. -- CA4048 Spray Mist Device for edge finishing improves panel. -- Cleaning and polishing of the applied edge. -- Welded Steel Frame & Steel pressure hold-down beam with (2) rows rubber rollers. -- Feed chain with industrial high grip rubber. -- Chain on hardened steel guides. -- Guides consist of one circular and one flat. -- Manual adjustment of the pressure beam w/ readout. -- Automatic pos. of the working units w/ reference to panel. -- Mechanical digital indicators for panel thickness. -- High Frequency Motors w/ Inverter. -- Centralized dust extraction. -- Adjustable panel support rollers. -- Sound enclosure & lockable switch cabinet -- Pre-milling unit:• Two cutter heads with automatic timing• Independent high frequency motors with Stock removal determined by infeed fence with digital display• Timed blower to clean the machined surface •Diamond tools 2.4 HP each.• Tools D=100mm H=49mm Max stock removal is H=45 mm / 55 mm. -- Working Units:Glue pot and edge processing magazine. -- 2-Motor end trimming Unit. 0 - 15 deg. -- 2- Motor Top and bottom trimming unit. -- Edge scraping unit for 3mm. -- CA5695 Glue Scraping Unit “GS/K2". -- CA9360 Brushing/ Buffing Unit “BFK";. -- Machine Features:• Guided by a chain for accurate feeding and long-lasting perfection. • Thick, Steel top pressure beam complete with two rows of rubber coated wheels.• Robust panel support which can be extended according to the size of the parts. • ²Nesting Kit Allows processing of predrilled parts• 3 Contacting rollers on Trimming Unit• Edge Scraping Unit• Rubber coated copy wheel for end trimming unit• Anti- Adhesive Unit RA• Perfect cleaning of the panel• Prevents glue from sticking to the top and bottom surfaces GP-200• Two Pressure rollers (1 large, 1 flat)• Teflon coated glue pot• Automatic glue temperature regulator to reduce glue temperature if machine is not in use to reduce glue heat time• Automatic recovery of glue• Automatic loader for strips • 2.4 kW. 3.3 HP Power. 1.5 Kg Capacity End Trimming Unit IK/200• (2) Independent high frequency motors w/blades• Pneumatic tilting of the saw blade 0 – 15 deg. from control panel• Units slide on THK guideways• Mounted to the base for vibration-free machining• 12,000 RPM and .3 HP each. Trimming Unit “TT/K";• 2 Independent high frequency motors• Vertical revolving copy devices and front copy pads for accurate positioning• Dust extraction hood• 3mm tooling standard12,000 RPM and .4 HP each• Corner Rounding Unit “A/1";• For automatic rounding of PVC/ ABS edging with radius of 1 – 3 mm• High frequency motors• Two manual working positions• Vertical and frontal copying device for adjustment of cutting point on the panel• Sup

CEHISA PRO-12 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Features: Pre-Milling Station with:2 x 1.5 Kw (2.0 HP) 12,000 RPM motors, standard equipped with diamond cutters. Both spindles pneumatically controlled. -- Spray agent unit for top and bottom with (2) sprayer and (2) reservoir -- Automatic Edge Magazine: For coiled material up to 3 mm thickness, strip feed magazine for up to 5 mm (3/16") solid wood banding. -- Quick Melt Glue System, MR-5:10 - 15 min. heat-up time, auto temperature drop. Glue Tank is coated with nonstick material, quick-change mechanism for easy maintenance and/or color change. -- Pressure Section:(1) Large dia. driven and (2) idle rollers. Digital read-out and pneumatic positioning selectable from controller touch screen.Edgebanding Workstations: -- End Trimming Station, V-7: Double motor front & rear, 2 x 0.35 Kw (0.5 HP) - 12,000 RPM. -- Edge Trimming Station, BC-5: Top & bottom flush/bevel/radius trimming, 2 x 0.55 Kw (0.75 HP) - 12,000 RPM, tiltable 0° - 10°, pneumatic exclusion from operator panel. -- Corner Rounding Unit, FD-50: To process overhanging edges and trimming around the leading & trailing edge, 1 x 0.27 Kw (0.36 HP). -- Profile Scraping Unit, R-8: For thick PVC/ABS radius scraping, pneumatic in/out positioning from control panel with chip collection box. -- Flat Glue Scraper, RR-7: To remove potential glue squeeze-out. -- Buffing Unit, PC-9: with spry mist unit top/bottom Top/Bottom, 2 x 0.12 Kw (1/8 HP) - 1,650 RPM motors, tilting horizontally and vertically. -- Operator Interface:PLC Microprocessor control with color touch screen, memory up to 20 programs.Equipped With:Feed Speed, 9 - 14 MPM (29' to 45 FPM), -- Power hold-down beam, work-piece support outrigger, safety & sound enclosure. Included Options:Riepe, non-stick spray system. -- Nesting Tracer Shoes for top/bottom trimmers
