Woodworking Equipment For Sale

CAM-WOOD BR 25 Horizontal DrillFeatures & Specifications: -- Single Spindle, 2 HP - 3450 RPM 3-phase motor, adjustable vertically and front to back. -- 5" Horizontal spindle travel (drilling depth) w/foot pedal control. -- 3-1/2" Vertical table adjustment. -- Pneumatic holddown clamp for up to 3" thickness. -- 12" x 10" Table size. -- 1/2" Drill chuck / 3/4" max. bit diameter.

CAM-WOOD SFJ-300A End Matcher, 12" Performs tongue and groove, tenoning, mortising, and shaping at both ends of the boards; -- Includes 10'-6" Powered Infeed and 7' Non-Powered Outfeed Conveyors. -- Air-operated hold-downs keep material firmly in place during the machining process. -- Cutter heads move in and out while cutting a tongue on the trailing end of one part and a groove on the leading end of the following part.FEATURES: -- PLC controls combined with a touch-sensing screen for maximum convenience of operation. -- Each cutter head is driven by a separate motor driving the spindle at 7,500 RPM spindle speed. -- Accepts unlimited wood lengths via an automated conveyor for infeed and outfeed processing. -- Cutterheads feed thru the wood is controlled by a frequency inverter that permits speed changes to suit various cutting conditions. -- Pressure plates are actuated by air cylinders. -- Hard chrome-plated table features maximum wear resistance. -- Table rollers increase feed smoothness. -- Powered in feed roller conveyor is driven by a 1 HP motor. -- 3,400 mm in feed roller conveyor and 2,200 mm out feed conveyor table are standard equipment. -- Fully enclosed chip guards. -- Air-operated clamp holds stock firmly in place. After the workpiece is clamped, the cutter head moves in and performs the shaping operation. -- The spindle is precision constructed to cut accurately -- The spindle height adjustment is displayed on a dial gauge. -- CAM-WOOD’S 2-spindle design accommodates cutterhead dia. up to 6"; -- When end matching, one spindle cuts the tongue, and the second cutterhead machines the groove. SPECIFICATIONS: -- 1-1/2" To 12" width cap. -- 10-1/2"; min. length cap. -- Thickness 3/8" to 1 3/8" -- Unlimited length, no restriction. -- Material feed speeds up to 297 FPM; cutterhead travel speed of 79 FPM -- Cutting cycle time 1.5 second.and up to 20 cycle per minute -- (2) 5-1/2 HP Spindle motors and a 2 HP feed drive -- 1/2 HP motor for in/out cutterhead travel. -- 40 mm Dia. spindle -- Requires 1300 CFM dust collection.

CAM-WOOD 16' Pusher Type Cutoff Saw with Crayon Marking connected to a CAM-WOOD 12" wide End Matcher; System width capacity is 12" with a maximum inbound board length of 16' (as priced here). 8' and 12' Saws are also available. Call Jeff for price deduction.General Data: -- Cut-Off Saw is arranged to remove defects from Clear. Will chop for random length clear material OR optimize clear wood according to your cutlist, delivering either to the End Matcher. -- The line requires (1) man to mark and feed the Cutoff Saw and (1) man to offbear and stack finished work coming from the End Matcher. Price includes the following equipment and specifications: Defect Saw Features: -- 18" CAM-WOOD Model CS-18AAT-16' Automatic Cut Off Saw equipped with Automatic Pusher for increased automation and efficiency -- 16' Infeed table -- Works as an automatic pusher for defect removal and fixed length cutting when crayon marking -- PLC controlled automatic pusher device is driven by servo motor at feed speeds up to 200 FPMAutomatic Pusher Operation: -- Operator places crayon marks at the leading and trailing ends of a defect or waste zone (Optional) -- Pusher moves the board to the first crayon marked defect, automatically completes the cutting cycle, and continues to position and chop the board at each crayon mark, thereby removing all waste zones. When the board is finished, the pusher returns to its starting position at top speed and starts on the next board -- Super Pusher travels up to 200 FPM -- Sealed, long-life ball bearings -- Precision ground cast iron table with heavy metal stand -- Easy to operate in all operations -- Saw blade comes up from beneath the table and returns after cutting for safe operation -- Totally enclosed blade guard prevents danger during cutting cycle -- Includes magnetic starters with overload protectionCutting & Other Specifications: -- (45) Strokes/Min -- 18"; Saw Blade Diameter with 1"; Saw Arbor -- 10 HP Arbor Motor -- 3,200 RPM Blade Speed -- 90 PSI Compressed Air requirement with 1" Inlet -- (1) 4"; Dust Hood -- Machine Size (W x L), 30" X 28-1/2'Automatic Transfer between Defect Saw and End MatcherCAM-WOOD SFJ -300 End Matcher with the following Specifications: -- Machines tongue and groove at ends of random or fixed length boards as provided by the Defect Saw -- Includes powered conveyor for infeed and steel landing table at the outfeed -- Air operated hold downs keep material firmly in place during the machining process -- Cutter heads move in and out while cutting a tongue on the trailing end of one part and a groove on the leading end of the following pieceFeatures: -- PLC controls combined with touch-screen for maximum convenience of operation -- Each cutter head is powered by a separate motor driving the spindles at 7,500 RPM -- Accepts unlimited wood lengths via an automated conveyor for infeed and outfeed -- Cutterhead travel thru the wood is controlled by a VFD which permits automatic speed changes to suit various

CAM-WOOD EB-L5PM EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 50 mm (0.75" - 2") panel thickness cap. (when edgebanding 3 mm PVC max. thickness is 40 mm). -- Minimum panel dimensions 63.5 mm wide x 160 mm long (2.5" x 6.3"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 0.75 HP (0.56 kW) - 12,000 RPM Motors. -- Top & Bottom Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 25 - 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensures accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at an added cost to convert to desired alternate voltage requirement.

CAM-WOOD EB-L5 EDGEBANDER0.4 mm - 3 mm Edgebanding thickness capacity, 10 mm (3/8") - 50 mm (1.96") material thickness capacity, 63.5 mm (2.5") minimum part width, 160 mm (6.3") minimum part length. Equipped with: -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine. -- Teflon coated glue pot w/fast (10 - 12) Min heat-up time; 4-liter capacity. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled pressure section with (3) pressure rollers; 1st drive, (2) idle.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.75 kW) - 12,000 RPM High-Frequency motors. Cutting group moves on rounded ways made of hardened steel, to guarantee high precision and reliability; cutting movement from the top of the panel. -- Top & Bottom Trim station with: (2) 0.75 HP (0.56 kW) - 12,000 RPM High-Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutterhead position by mechanical digital readouts, quick release (electrical & mechanical). Includes (2) 3 mm radius cutters. -- Top & Bottom Buffing unit with (2) 0.50 HP (0.37 kW) - 1,400 RPM motors. Feed & Holddown: -- Feed rate of 12 MPM (40 FPM); feed chain pads with replaceable rubberized surface inserts. -- Special design "track frame" to eliminate feed chain side-to-side movement after years of use. -- Rubberized holddown rollers with ball bearings for low friction and long life. -- Complete with: Sound enclosure protects the operator from noise and debris.

CAM-WOOD A-3775 Single Head Wide Belt SanderSpecifications: -- 36" Width cap. - Combination Sanding head with rubber-covered contact roll and adjustable finishing platen. 20 HP main drive motor. -- 37" X 75" Abrasive belts, pneumatic abrasive belt tensioning. -- 0" - 5" Feed through bed adjustment, Digital thickness set-up via 0.5 HP motor power elevation for thickness opening. -- Variable conveyor feed speed from 20 to 60 FPM, 2 HP feed motor. -- 5" Max. working thickness, 7" min. working length, -- Double Infeed & outfeed spring loaded holddown rolls.Complete with: -- Magnetic controls, 6" dia. dust collection hood, and safety shutoff. - 1,500 CFM Dust collection required.

CAM-WOOD SET-84 -TS - SH Double End Tenoner, (4) Heads4-Head machine (two on each side) with Scoring/Cutting and HoggingCapacity & Style: -- Max. 98" working capacity, min. 12"; max. 4" opening, 24" load area in front of hold-downs. -- Single-post machine, single "dual-track" base, right side fixed, left side movable. -- Motorized opening with LED indicator.Each side equipped with: -- Scoring head, 3 HP - 3,600 RPM motor, and 1" dia. arbor for up to 10" blade. -- Hogging/cutting unit 5 HP - 3,600 RPM motor, 1" dia. arbor, 10" max. dia. cutter-head. -- Variable feed speed from 12 - 52 FPM, 1 HP motor, steel feed chains with plastic anti-slip pads, and dogs at 6" center. -- Spring loaded overhead hold-down beams with endless belts. -- Separate electrical control cabinet with operator controls.Options Available: -- Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional $38,900). -- Hopper feed magazine (additional $3,990). -- 42" Infeed extension (additional $4,500) -- Sound enclosure ...$6,900 -- Electric motor brake -- Central supportNote: Pictures are showing the machine with several options included

CAM-WOOD SFJ-3800-205-FM-FAH HIGH SPEED, LONG BOARD, HORIZONTAL JOINT, FINGER JOINTER: Specifications: -- Double Chain & Slat Type Shaper Section designed for long incoming boards -- Manual infeed; Slat Bed Feed Chain runs at up to 75 FPM; lugs on 30" centers. Slat Bed powered with a 15 HP gear motor with 1:40 gear ratio. -- Table Transfer Conveyor (Powered), even ends boards to the Right and Left Shaper Fences: powered by (2) 7-1/2 HP motors -- Power raising and lowering of the holddown assemblies on both Shaper Sections; Powered with (2) 2 HP motors -- (1) Pair Scoring Saws with 2 HP motors, 50mm arbor, 2,850 RPM, scoring blade size of 7"; x 50 tooth, (4) Blades included -- (1) Pair Trim Saws with 10 HP motors, 50mm arbor, 4,275 RPM, trim saw blade size of 10"; x 100 tooth. (2) Blades included -- (1) Pair Vertical Hogging Shaper Spindles with 10 HP motors, 50mm arbor, 4,375 RPM, hogging blade size of 9.4"; x 50-tooth. (2) Blades included -- (1) Pair Vertical Finish Shaper Spindles with 20 HP motors, 50mm diameter spindles, 5,300 RPM. For -- 50mm bore x 160mm dia. cutterheads; finger length of 1.122";; cutterheads and knife profile to buyer’s specification -- Extrusion Type Glue Application System for PVAC Glues; mounted on Right Side Shaper Section. Includes glue pump, valves, and glue injection thru the applicator comb machined to buyer's specifications. -- Optional APQUIP Glue System available at extra cost -- Optional Glue Equipment available for Loctite HB X Glue at extra price -- Deduct $5,200 if provided without a Glue SystemSCC-20 TRANSFER CONVEYOR -- Conveyor between Shaper Section to the Press Section -- Working dimension: from 1"; to 8"; wide x 12"; to 12’-6"; long -- Speed 230 FPM -- Powered by (1) 3 HP HSC-65 HIGH-SPEED PRE-PRESS ASSEMBLY SECTION -- Working dimensions: 1"; to 8"; wide x 3/4"; to 2-1/4"; high x up to 21’ long -- (2) 5 HP motors drive the double flat-top chains -- Feed speeds from 32 to 295 FPM -- Includes (1) 15 HP Frequency Converter to power the feed chain motors at speeds determined by incoming boards lengths NFJ-1500 50’ HEAVY-DUTY AUTOMATIC ASSEMBLY PRESS -- Working dimension: 1"; to 8"; wide x 3/4"; to 2-1/4"; high x up to 50’ long -- Power of upper rollers: (2) 3 HP motors with a 1:10 gear ratio -- Power of lower roller: (1) 5 HP motor with a 1:10 gear ratio -- In-feed Inverter: (1) 15 HP motor -- In-feed speed: From 32 to 295 FPM -- Cut-off saw: With 7.5 HP motor driving the arbor at 2,850 RPM -- Sawblade: 14"; Diameter x 120 tooth -- Hydraulic power to the Pressing Cylinders: (2) 20HP with high-speed oil tank -- Hydraulic pressure output: 1,700 PSI at the joint -- Capacity (1) to (4) 50’ assembled boards per minute -- Machine comes arranged with equipment to assemble (3) sizes of material cross sections according to buyer’s specifications for width within +/-3/16"; width toleranceSYSTEM REQUIREMENTS FOR INCOMING BOARDS -- Incoming lumber length: 1’ to 12

CAM-WOOD SFJ-460L FINGER JOINT ASSEMBLY PRESS SYSTEM With Optional GluingDescription: -- The SFJ-460L is an automatic Assembly System, Cutoff Saw, and Press. The system performs three functions; pre-assembles finger jointed blocks with glue previously applied in the FSG 150 manual Glue Applicator (not included), cuts the assembled boards to length, and performs the final assembly when pressed by a powerful hydraulic system. When pressing is complete, boards are fed out of the Press. -- Power feed for feeding boards, stops automatically at the desired board length using the included cut-off saw as standard equipment for cutting boards to length. -- The maximum assembled board length is 15'. Specifications: -- Max. length capacity, 188"; max. width, 6"; max. thickness, 3". -- Feed speeds from 0 - 26 FPM; -- Cutoff Saw runs at 3,500 RPM and is powered by a 5 HP motor; Blade diameter is 355 mm (14") with a 1" arbor; -- With 1/2 HP feed motor and 5 HP hydraulic pump motor. Option: -- Manual Gluing unit FSG 150 Additional $ 8,990Note: Same press with 6,000 mm (19.7') capacity additional price is $6,900

CAM-WOOD XCL-1000S 4-Spindle Auto Copy Lathe/Shaper w/Sanding of Asymmetrical parts .via a template. Shaping with (4) cupped cutters and sanding with individual belts.Specifications: -- Capacity: (4) Spindle duplicating/carving/copy heads with (4) copy belt sanders for asymmetrical parts. Working length 6-3/8"- 39.5" -- Working dia. 1-1/8" - 8-1/4". Cutter diameter approx. 1.4" -- Speeds: Spindle Speed : Variable 2000 - 6000 RPM. Cutting Circle 2 - 12 times/min. -- Features: (4) Spindles with pre-loading centering station and pneumatic clamping. -- Drives: Hydraulic carriage motor 3 HP; Cutter drive motor 7.5 KW (10 HP). Sanding heads motor 2 x 1 HP. -- Electrical controls: 220 V Relay style. -- Overall Dimensions: 120" long x 47" deep x 110" high -- Approx. net weight: 6,240 Lbs. -- NOTE 1: Larger diameters are possible by using every second carriage position, ie. (2) heads instead of four heads. -- NOTE 2: Version without Sanding, XCL-1006 is priced at

CAM-WOOD A-2560 Single Head, Wide Belt Sander;Features & Specifications: -- 24" Width cap. - sanding head with a rubber covered contact roll and adjustable finishing platen, 10 HP motor. -- 25" x 60" Abrasive belts, pneumatic abrasive belt tensioning. -- 0" - 5" Feed through bed adjustment, 0.5 HP motor power elevation for thickness opening. -- Variable conveyor feed speed from 17 - 51 FPM, 1 HP feed motor. -- 5" Max. working thickness, 7" min. working length, -- Double Infeed & outfeed spring loaded holddown rolls.Complete with: -- Magnetic controls, 6" dia. dust collection hood, and safety shutoff. - 1,500 CFM Dust collection required. Optional: 10 HP Single Phase motor

CAM-WOOD TYPE F1, MODEL FAH, 6"; X 20’ Horizontal Fully Automatic Finger Joint System Single Chain TypeMECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 150 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305mm) x 80 Tooth x 5mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Speed: 230 FPM -- Feed Motor: (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 30 to 300 FPM (H) MECHANICAL SPECIFICATIONS: 20’ (6.2M) ASSEMBLY PRESS: --Working dimension: 3/4"; to 6"; wide x 0.60"; to 3"; high x up to 20’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 30 to 300 FPM --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high speed oil tank) --Cycle Speed: 1 to 8 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 20"; --A verage block cross section is 2"; x 4"; -- Chain speed at the Shaper sections is 150 lugs/Min -- Press capacity is (8) 20’ loads per minute (maximum) CAPACITY OF THE SHAPERS WHEN FINGER JOINTING 2"; X 4"; x 20" BLOCKS -- (120) Blocks per minute -- x 20"; Average infeed length -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 76,800 lineal feet per shift CAPACITY OF THE PRESS ASSEMBLING 20’ LENGTHS: -- (8) Assembled lengths per minute -- x 20’ Per minute -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 66,440 lineal feet per shift -- NOTE: If using the cutoff saw for multi-section pressin

CAM-WOOD HIAT-620-205 WITH 3"; HIGH X 8"; WIDE X 20’ LONG WORKING CAPACITIESTECHNICAL SPECIFICATIONS:Incoming Block Requirements: --Incoming block lengths from 6'' to 39"; (optionnal 122") --Blocks must be at least 50% longer than their width. --Block thickness from 1/2"; to 3 1/2" --Block width from 1"; to 8" - --Assembled lengths from 10’ to 20’ - 24’ Optional --For use with PVAC adhesives --Works equally well with soft & hardwoods. --Moisture content preferred from 8% to 12% --Blocks should be surfaced (4) sides to ± 0.2 mm with 90° right-angle corners. To be supplied by the customer: --Electric power supply to electrical cabinet --Constant voltage with deviations of 5% or less --Temperature range for computer control should not exceed 95°F. --Maximum humidity for computer control system under 65% --Hydraulic oil --Skilled operating and maintenance personnel --Motor Control Center with under-voltage and overload protection; includes UL and CSA approved electrical components. Electric parts only, not the complete machine. --Total electricity demand: 63.75 KW, 85 HP --30 HP Compressor with a 50-to-60-gallon Air Receiver PRODUCTION CAPACITIES:Shaper Capacity: --Shift = 480 minutes --Finger length to buyer’s requirement --As an example: 1-1/2"; X 5/1/2"; X 24"; average finished block size at the Shapers --Shaper max. speed of (3) table strokes per minute --Table cycles will change as block widths become “wider"; or “taller"; at the Shapers --Table accepts up to (16) blocks when vertical finger jointing 1-1/2"; X 5/1/2"; example blocks. --Table accepts up to (4) blocks when horizontal finger jointing 5-1/2"; x 1-1/2"; example blocks.Press Capacity: --Assembly Press w/2 operators: -- (4) Table loads per min. x 20’ lengths x 480 min. per shift x 0.8 rate of utilization = 30,720 lineal feet per shift OR 36,864 lineal feet per shift with 24’ Press)Production Calculations: --VERTICAL Finger Jointing w/2 operators: -- Capacity of the shaper when finger jointing 1-1/2"; x 5-1/2"; x 2’ long blocks: (3) tables stroke per minute X 16-blocks per table load X 2’ average infeed block length x 480 minutes per shift X 0.8 rate of utilization = 36,864 lineal feet per shift (63.34 M³) --HORIZONTAL Finger Jointing w/2 operators: -- Capacity of the shaper when finger jointing 5-1/2"; x 1-1/2"; x 2’ long blocks: (3) table strokes per minute X 4 blocks per table load x 2’ average infeed block length x 480 minutes per shift X 0.8 rate of utilization = 9,216 lineal feet per shift (19.46 M³) NOTE: Capacity is maximum as shown at Assembly Section and is dependent on blocks thru the Shapers System consists of

CAM-WOOD IAT 620-150H INVERTER DRIVEN FINGER JOINT SYSTEM 3" X 6":Lay-Up and Block-Staging Infeed Conveyor: -- 24" Wide x 31.5" long belt conveyor powered with 1/2 HP motors. Conveyor is controlled by the operating and system. Feeds at a constant rate of 180 FPM. Block delivery is controlled by the operator and machine system criteria to feed the Shaper. The conveyor facilitates keeping the system full and productive. FSR-62I Right Hand Inverter Type Finger Joint Shaper: -- Feed table is 24" wide and accepts blocks from 6" wide x up to 31.5" long x 5/8" to 6" wide. Shaper spindle is driven by a 20 HP motor and is equipped with provisions for vertical adjustment of 20 mm up and 20 mm down. Spindle diameter is 50 mm and runs at 6,600 RPM. 8-1/4"; maximum shaper cutterhead diameter - without knives. 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. 2 HP - 2,850 RPM Scoring saw, accepts 7" dia. x 50 tooth x 5 mm blades. Table movement is Inverter driven; powered by a 3 HP + 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses load and varies travel speed as needed. Speed is also controlled by system criteria STC-62A Single Table Transfer Conveyor to the 2nd (Left Hand) Shaper: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeds at a constant rate of 180 FPM. FSL-62I Left Hand Inverter Type Finger Joint Shaper with Glue Extruder: -- Feed table is 24" wide and accepts blocks from 6" up to 31.5" long x 5/8" to 6" wide. Shaper spindle is driven by a 20 HP motor. Spindle diameter is 50 mm and runs at 6,600 RPM. 8-1/4" maximum shaper cutterhead diameter - without knives. 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. 2 HP motor powers a top and a 2nd 2 HP motor powers a bottom scoring saw, both running at 2,850 RPM; accepts 7" dia. x 50 tooth x 5 mm blades. Conveyer powered by 1/2 HP motor. Table movement is Inverter driven; powered by a 3 HP + 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses load and varies travel speed as needed. Speed is also controlled by system criteria Injection Type Glue Applicator: -- Extrudes adhesive into the fingers without the messy runoff associated with glue rollers. 6" Comb height is standard. Finger pitch 4 mm, 10 - 12 mm finger length is standard equipment (special sizes available as optional equipment) STC-62A Single Table Conveyor Belt to the Assembly Section: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeding at a constant rate of 180 FPM. FJ-500A (198") Assembly Press with Cut-Off Saw: -- Capacity from 1" to 6"; wide x 1/2" to 3" high x and from 6' to 16-1/2' long. A 2 HP motor powers the upper and a 2nd 2 HP motor powers lower pre-assembly/crowder rolls. With 5 HP infeed inverter drive. In-feed speed from 30 to 230 FPM. Speed is controlled by system criteria. 5 HP - 2,85

CAM-WOOD MODEL FSG-150X Manual FINGER JOINT GLUE APPLICATOR -- Manual operation of sliding table ; Specification: -- Glue roller type -- Working width 24" maximum -- Working thickness 6" -- Glue roller drive 1/2 HP with reducer -- Standard clus height 4"

CAM-WOOD TYPE F1, MODEL FAH 8" X 30’ HORIZONTAL FULLY AUTOMATIC FINGER JOINT SYSTEM - SINGLE CHAIN TYPEMECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 150 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305mm) x 80 Tooth x 5mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180mm) x 50 Tooth x 5mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Speed: 230 FPM -- Feed Motor: (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 30 to 300 FPM (H) MECHANICAL SPECIFICATIONS: 30’ (9.3M) ASSEMBLY PRESS: --Working dimension: 1"; to 8"; wide x 0.60"; to 2 3/8"; high x up to 30’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 30 to 300 FPM --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high speed oil tank) --Cycle Speed: 1 to 8 Cy/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 20"; --A verage block cross section is 2"; x 4"; -- Chain speed at the Shaper sections is 150 lugs/Min -- Press capacity is (8) 30’ loads per minute (maximum) CAPACITY OF THE SHAPERS WHEN FINGER JOINTING 2"; X 4"; x 20" BLOCKS -- (120) Blocks per minute -- x 20"; Average infeed length -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 76,800 lineal feet per shift CAPACITY OF THE PRESS ASSEMBLING 30’ LENGTHS: -- (8) Assembled lengths per minute -- x 20’ Per minute -- x 480 Minutes per shift -- x 0.8 Rate of utilization = 66,440 lineal feet per shift -- NOTE: If using the cutoff saw for multi-section pressin

CAM-WOOD EB-M7PM EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 60 mm (0.75" - 2.36") panel thickness cap. -- Minimum panel dimensions 160 mm long x 88.9 mm wide (6.3" x 3.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.7 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 1 HP (0.7 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 1 HP (0.7 kW) - 12,000 RPM. -- Top & Bottom Profile Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 43 / 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensure accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at additional cost to convert to desired alternate voltage requirements.

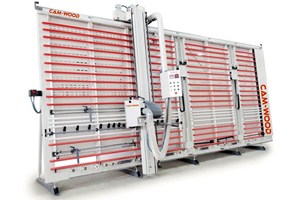

CAM-WOOD VPS PL w/Scoring & Panel Lifting Clamps (82-1/2" x 196-1/2" w/Scoring)Features: -- Panel Clamps for bottom cuts; top to Bottom cutting height is 82-1/2" (2,100 mm) without scoring and 78-3/4 (2,000 mm) with scoring; saw head w/motor rotates 90° for rip or crosscutting. -- Cutting length "rip cut from left/right" is 196-1/2" (5,000 mm); cuts single or stacked panels up to 2-23/64" (60 mm) in thickness. -- Equipped with: -- 4 HP Motor (5.5 HP available); 250 mm (10") dia. x 80-tooth x 30 mm bore main blade; separate 80 mm (3.15") x 20-tooth dia. scoring, blade belt driven at 7,800 RPM to insure clean cuts on everything from Plywood to Melamine to Hardwood. -- Features: -- 2-Motorized panel lifting clamps "grab panel on top edge" for bottom cuts (660 Lbs. lift cap.), clamps travel on (2) vertical screws for positioning of panels. -- (2) LED Readouts (1) for crosscutting at the middle of the frame and (1) for horizontal rip cuts; (2) flip-stops for crosscut measuring, one located on the bottom rail and the other on the mid height measuring rail. -- Complete with: -- Foldout shelf at the middle of the frame for small part cutting; automatically shifting material back support grid shifting away from the saw blade cutline prevents cutting into the grid support strips while rip cutting horizontally. -- Precision ground bottom edge support rollers to facilitate easy loading & positioning of the larger or heavy panels; standard inch preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- Rip gauge for repeat (same size) rip cuts and (3) adjustable preset stops; material always rests firmly against the "angled" back grid support. -- Includes: -- Spring loaded floating saw blade enclosure shoe glides over panel surface applying a holddown force while it enhances dust collection & safety by enclosing the saw blades. -- (1) Main blade; (1) scoring blade.

CAM-WOOD - EXRAPID-40812L, 4' x 8' CNC Router with Linear Tool Changer, Drill Block and Vacuum Pump.4' x 8' Flat Table CNC Router, great for "Nested Base Manufacturing" or just about any type of 3-Axis work. --.Overall Description: -- 4’ x 8’ (1,300 mm x 2,500 mm) Phenolic Matrix Grid Vacuum Table with (6) independent zones and 8 location pins -- 12.8 HP (9.6 kW) Air-cooled Router Spindle, 6,000 - 24,000 RPM. -- Industrial Grade "SYNTEC" CNC controller with 8" color LED monitor with full Keyboard. -- 12-Position tool changer under gantry ATC that moves with the gantry. -- YASKAWA 850 W Servo drives and motors with SHIMPO gear boxes. -- Travels via 1"; HWIN linear rails with pre-loaded bearings. -- Driven by dual inclined-toothed helical rack and pinion rails and motors. -- Z-axis movement via 1"; diameter ball & screw with preloaded bearings. -- 2,350 IPM max. Traverse speed; 1,100 IPM max. working speed. --Comes with: HSD Boring Head with (9) mandrels in 5 x 5 L-shaped configuration - Included Option. --Features: - Automatic pneumatic pushed 12 linear type auto tool changer under the gantry for increased productivity. (12) Toolholders ISO 30& (12) ER 32 Collets.- All “servo motor"; driving system: All axis are driven by brush-less type, high torque AC servo motors.- CNC controller is setup to accept standard G-code programming formats along with on board conversational applications.- Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF filescan be imported, modified and edited from here to create a G-code.- DNC is no longer required as the PC directly stores all part programs in a text editable file.- Machine designed ready for 3-D cutting usage and superior performance.- Moving gantry construction for space saving.- The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.- Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.- Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision. - The X & Y axis are equipped with a precision rack & pinion driving system.- The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.- Special design (6) zone vacuum table surface for powerful hold down.- Automatic Lubrication. -- Machine Bed/Base:- Welded & Structurally Engineered machine base provides a solid foundation for superior cut quality; the entire frame is stress relieved and heat treated.- Moving Gantry Bridge travels in the X- & Y-axis via inclined helical rack & pinion on 1" (25 mm) thick, hardened & precision ground "HIWIN" rectangle linear guide ways with preloaded bearings, giving extra smooth movement, high speed traverse, and accurate cutting.- Tool Gantry Movement for the vertical Z-axis travels on a 1" (25.4 mm) diameter

CAM-WOOD SET-14TS Double End Tenoner, (4) Heads, with Single feed chain for Narrow PartsFeatures: --The automatic high-speed through feed tenoner allows for perfect finishing at speeds ranging from 1 ~ 43 FPM. -- Suitable for mass production for processing of double-end cutting, tenoning, grooving, and moulding. -- SET-14TS Shaper, Sander: Total (2) stations on both sides. -- Variable speed, through feed, wide rubber pad, and spring-loaded dogs feed chain for the best finish selections. -- Heavy-duty pressure rolls at top of the wide-width conveyor to hold the material tight to prevent sliding during the cutting process.Specifications: --Max. Working Thickness 2" --Working Width 2-3/4"; ~ 10"; -- Working length 4" to 14" -- First head Tilting cutting saw -- Second head Tilting cutting Saw --Optional: Shaper Cutter Heads, Sander Heads 6" ~ 8" x 1" Dia. --Feed Speed 1' ~ 43' FPM, Variable --Feed Drive 3 HP, 220 or 440 V -- Saw Heads 5 HP x 2 -- Saw heads 5 HP x 2 -- Feed drive motor 1 HP Option: -- Tiltable saw blade 0° to 90° Additional $2,800
