Woodworking Equipment For Sale

CANTEK EM-12 End Matcher;1.6" to 12" Width x 0.4" to 1.38" thickness x 10.6" min. length capacity. Unlimited lengths possible.Specifications: -- Feed speeds to 295 FPM with approximate production speeds of 77 FPM (based on 6-1/2' incoming boards). -- Standard 173" long infeed table and standard 86" (2,200 mm) long outfeed table; -- (2) 10 HP cutterhead motors with 40 mm spindle diameters; 1 HP feed motor; 1/2 HP motor drive to cutterhead carriage; clamping pressure from top and side; 24 volt DC controls.Standard equipment and Features: -- Designed for machining tongue & groove with or without V's on flooring and panel products; designed to be used for finger joint cutting. -- Heavy-duty self supporting main frame; compact design requires minimum floor space.Feedworks: -- Capable of processing material as short as 11" to an unlimited length; variable speed through-feed systems is controlled by frequency inverter; through-feed system allows the tongue to be cut simultaneously on the tail of one board and the leading edge of the next board. -- Powered top Urethane rolls and spring loaded bed rollers feed the material into position for processing. -- Pneumatic side pressure ensures the material is held square against the fence.Complete with: -- Safety and noise reduction enclosure; convenient touch screen control is used to quickly activate and adjust the machine functions. -- Powered 176" long infeed conveyor is included (additional length optional); with a 86.6" long outfeed table (additional length optional). -- Includes: (2) Individual Precision Insert Tooling Heads as Supplied with Machine & stacked to make (1) pair of heads; set of heads provided for groove on left and tongue on right.

CANTEK - MX-370P: Edgebander (w/Premill & Corner Rounding) -- Specifications0.4 - 3 mm Edge thickness; panel thickness: 0.315" - 1.77"; min. panel length: 6.7"; min. panel width: 3-3/4". Heated infeed fence for better glue adhesion; fixed feed speed: 29 FPM. -- Equipped with: Premill: (2) 1.5 kW each (12,000 RPM) counterrotating cutterheads for removing up to 3 mm of the panel edge. -- Quick Change: 1.2 kG Teflon coated glue pot: Designed for EVA hot-melt glue; glue pot is a Quick-Change type & can be removed and replaced in less than (1) minute. -- Guillotine Shear: Guillotine shear can rough trim coiled material up to 3 mm in thickness. Pressure rollers section consists of: (1) Large driven roller followed by a smaller one. -- Workstations End Trim: System is a single motor with: (2) Saw blades. Unit is mounted on high precision linear guide rails. -- Top & Bottom Trimmers with: (2) High frequency motors for top & bottom trimming of the panel. Each motor equipped with: Inset knife cutterhead, which can be adjusted from flush to beveled finish for thin edges & radius trimming (2 mm radius). Single motor Corner Rounding Unit can process between: 0.4 - 3 mm & Up to a board thickness of 1.77" (45 mm).Multifunctional Cutter can: Round straight or radius edges with a 2 mm radius cutter. -- Radius Scraping Unit: Fine-tunes the edge radius, while removing knife marks during the milling process on radius edging; insert knives: 2 mm Radius. -- Buffing Unit: Leaves a super finish on ABS & PVC edging and removes any discoloration on the edges.

CANTEK MX340M Edgebander (Single Phase):The MX340 from CANTEK is designed to be a compact, and durable edgebander. -- Equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340 Edgebander is operated through a PLC control system with an LED display and keypad.Specifications: -- The MX340 handles panel thiknesses of 0.315" up to 1.77" (8 mm to 45 mm). -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed).Work stations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring loaded double pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.Also available in 220V/3PH/ 60 Hz

CANTEK MX340 Edgebander (Single Phase or 3-Phase)The MX340 from CANTEK is designed to be a compact, and durable edgebander. -- This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340 Edgebander is operated through a PLC control system with an LED display and keypad.Specifications: -- The MX340 handles panel thicknesses of 0.315" up to 1.77" (8 mm to 45 mm). -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed).Work stations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring loaded double pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.

CANTEK - EM-12: Finger Jointer / End MatcherMachine arranged to Finger Joint but can be easily converted to End Match.Specifications -- 1.6" to 12" Width x 3/8" to 1-3/8" thickness x 10.6" min. length capacity.Unlimited lengths possible.Feed speeds to: 295 FPM with approx. production speeds of 77 FPM (based on 6-1/2" incoming boards). -- Standard 118" long infeed table; standard 98" long outfeed table. -- (2) 5-1/2 HP Cutterhead motors; 40 mm spindle diameters; 1 HP feed motor; 1/2 HP motor drive to cutterhead carriage; clamping pressure from top and side.Standard Equipment & Features -- Heavy-Duty self-supporting main frame; compact design requires: Min. floor space; capable of processing material: As short as 11" to an unlimited length. -- Variable speed through-feed systems is: Controlled by frequency inverter; through-feed system: Allows the fingers to be cut simultaneously on the tail of one board & the leading edge of the next board. -- Powered top urethane rolls & spring-loaded bed rollers: Feed the material into position for processing. -- Pneumatic side pressure: Ensures the material is held square against the fence. -- Complete safety & noise reduction enclosure; convenient touchscreen control: Used to quickly activate & adjust the machine functions. -- Infeed & Outfeed Roller Conveyor.

CANTEK - EM-10: Finger Jointer / End MatcherMachine arranged to finger joint but can be easily converted to end match.Specifications -- 1.6" - 10" Width x 3/8" to 1-3/8" thickness x 10.6" min. length capacity; Unlimited lengths possible.Feed speeds: To 295 FPM with approx. production speeds of 77 FPM (based on 6-1/2" incoming boards). -- With standard 118" long infeed table and standard 98" long outfeed table. -- (2) 7-1/2 HP Cutterhead motors; 40 mm spindle diameters; 1 HP feed motor; 1/2 HP motor drive to cutterhead carriage; clamping pressure from top & side.Standard Equipment & Features -- Heavy-Duty self-supporting main frame; compact design requires minimum floor space; capable of processing material as short as 11" to an unlimited length. -- Variable speed through-feed system is controlled by: Frequency inverter; through-feed system allows the fingers to be cut simultaneously on the tail of (1) board and the leading edge of the next board. -- Powered top urethane rolls & spring-loaded bed rollers feed the material into position for processing. -- Pneumatic side pressure ensures the material is held square against the fence. -- Complete safety & noise reduction enclosure; convenient touchscreen control is used to quickly activate & adjust the machine functions. -- Infeed & outfeed roller conveyor.

CANTEK - C 12 RSH, ...Straight Line Rip SawRuggedly constructed with cast iron & ground tables; cast iron pressure housing with (6) guide rollers, and solid welded steel base chassis.Specifications: -- Saw blade dia. 8" - 12"; saw arbor dia. 1"; saw arbor speed 4,400 RPM. -- 15 HP Saw arbor motor, 2 HP feed motor, 45 - 120 FPM variable speed range. -- Min. workpiece length 8", max. cutting thickness 3-3/8", distance from column to center of chain 18". -- Table size is 39" x 57"; table height 31-1/2".Equipped with & Features -- The cast iron upper pressure housing provides a stable mounting for the precision ground & Nickle chrome steel saw arbor and can be easily adjusted by hand wheel for thickness changes. --:1-Piece cast iron chain with a diamond cut surface for positive material feeding.Total amperage is 21.5 and the gross weight approx. 2,530 Lbs.

CANTEK MT-610 24"; Rotary Milling PlanerSpecifications -- Heavy duty welded steel construction. --Moving table type -- Display position number. -- Alarm bell and flash light. -- Speed change for feeding, controlled by Inverter (VFD) -- Rubber Endless Belt. -- Automatic device for feed belt tracking. -- Air jet cleaner for cutter -- Working width 610mm -- Workpiece thickness 3-125mm Equipped with & Features -- Number of cutters 2 units -- Spindle motor power 20 HP -- Brush motor power 1 HP (150 mm dia) -- Vacuum motor power 1 HP (suction for conveyor belt) -- Feed motor power 1 HP -- Lifting motor power 0.5 HP

CANTEK D405A 10' Sliding Table SawSpecifications: -- Max. cutting length 126". -- Max. depth of cut: 4.13" at 90° (355 mm), 5.12" at 90° (400 mm), 2.75" at 45° (355 mm). -- Main saw: 7-1/2 HP Motor, Blade dia. 16", Arbor dia. 30 mm (1.18"), Arbor tilt 0° - 45°, & Blade speeds 3,000, 4,000, & 5,000 RPM. -- Scoring saw: 1 HP - 8,000 RPM Motor, Blade dia. 120 mm (4.72"), & Arbor dia. 20 mm (0.79").Equipped with: -- 15-1/2"; x 126"; x 35-1/4"; H Precision anodized aluminum sliding table with Prismatic rollers running on precsion ground steel guides, 21.6"; x 35"; x 35.3"; H Cast-iron fixed table, 12.6"; x 32.7"; x 35.3"; H Auxiliary table. -- Main saw blade motorized height & tilt adjustment. -- 39-1/2"; L x 3-1/2"; H Aluminum rip fence, with 130 mm (51.18";) Cutting cap. -- Aluminum extruded crosscut fence, with (2) Flip stops with miter angle adjustment, & Sliding outrigger support. -- Eye-Level touchpad control, with LED Displays for main saw blade height & tilt. -- Overhead blade guard.

CANTEK - C 12 RS, ...Straight Line Rip Saw:Ruggedly constructed with cast iron & ground tables, cast iron pressure housing with (6) guide rollers, and solid welded steel base chassis.Specifications: -- Saw blade dia. 8" - 12", -- Saw arbor dia. 1", saw arbor speed 4,400 RPM. -- 16 HP Saw arbor motor, 2 HP feed motor, 45 - 120 FPM variable speed range. -- Min. workpiece length 8", max. cutting thickness 3-3/8", -- Distance from column to center of chain 18". -- Table size is 39" x 57", table height 31-1/2".Equipped with & Features -- The cast iron upper pressure housing provides a stable mounting for the precision ground & nickel chrome steel saw arbor and can be easily adjusted by hand wheel for thickness changes. -- 1-Piece cast iron chain with a diamond-cut surface for positive material feeding.

CANTEK - MX340, ...Edgebander (Single Phase)The CANTEK "MX340" is designed to be a compact and durable Edgebander. -- Equipped with: End trimming, flush trimming, PVC scraping, and buffing. -- Edgebander is operated through: PLC Control System, LED display, and keypad.Specifications -- Panel thickness cap.: 0.315" to 1.77" (8 mm to 45 mm). -- Edgebanding coil feed accepts: 0.4 mm -3 mm Thick; strip material can be hand-fed. -- Conveyor feed speed: 29-1/2 FPM (fixed).Workstations -- Heated infeed fence for optimum glue penetration; large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine: 3 mm Max. thick banding; followed by spring loaded double pressure rollers. -- Single front/rear trimming unit: 0.3 HP Motor. -- Double top & bottom trimming units: (2) 1/2 HP motors. -- Top & bottom scraper/radius scraper. -- Top & bottom buffing station: (2) 0.16 HP Motors.

CANTEK MX340 EDGEBANDER (COMPACT): (Single Phase)The CANTEK "MX340" is designed to be a compact and durable Edgebander. -- Equipped with: End trimming, flush trimming, PVC scraping, and buffing. -- Edgebander is operated through: PLC Control System, LED display, and keypad.Specifications: -- Panel thickness cap.: 0.315" to 1.77" (8 mm to 45 mm). -- Edgebanding coil feed accepts: 0.4 mm -3 mm Thick; strip material can be hand-fed. -- Conveyor feed speed: 29-1/2 FPM (fixed).Workstations: -- Heated infeed fence for optimum glue penetration; large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine: 3 mm Max. thick banding; followed by spring loaded double pressure rollers. -- Single front/rear trimming unit: 0.3 HP Motor. -- Double top & bottom trimming units: (2) 1/2 HP motors. -- Top & bottom scraper/radius scraper. -- Top & bottom buffing station: (2) 0.16 HP Motors.

CANTEK MX340M Edgebander (Single Phase) --The MX340 from CANTEK is designed to be a compact, and durable edgebander. -- Equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340 Edgebander is operated through a PLC control system with an LED display and keypad.Specifications: -- The MX340 handles panel thickness of 0.315" up to 1.77" (8 mm to 45 mm). -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed). --Work stations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon-coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring loaded double-pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.

CANTEK MX-370P EDGEBANDER (W/ PRE-MILL & CORNER ROUNDING): --Specifications:0.4 - 3 mm Edge thickness, panel thickness 0.315" - 1.77". Minimum panel length 6.7", minimum panel width 3-¾". Heated infeed fence for better glue adhesion. Fixed feed speed 29 FPM.Equipped with: -- Pre-mill (2) 1.5 kW each (12,000 RPM) counter-rotating cutter-heads for removing up to 3mm of the panel edge. -- Quick change 1.2 kg Teflon-coated glue pot is designed for EVA hot-melt glue. The glue pot is a Quick-Change type and can be removed and replaced in less than 1 minute. -- Guillotine shear: The guillotine shear can rough trim coiled material up to 3 mm in thickness. Pressure rollers section consists of one large driven roller, followed by a smaller one. Workstations: -- End Trim: The end trim system is a single motor with (2) saw blades. The unit is mounted on high-precision linear guide rails. -- Top & bottom trimmers with (2) high-frequency motors for top & bottom trimming of the panel. Each motor has an inset knife cutter-head which can be adjusted from flush to beveled finish for thin edges, and radius trimming (2 mm radius). Single motor Corner Rounding Unit Can process between 0.4 - 3 mm and up to a board thickness of 1.77" (45 mm). The multifunctional cutter can round straight or radius edges with a 2 mm radius cutter. -- Radius scraping unit fine-tunes the edge radius while removing knife marks during the milling process on radius edging. Insert knives have a 2 mm radius. -- Buffing unit leaves a super finish on ABS and PVC edging and removes any discoloration on the edges.

CANTEK C251 24" WIDE BELT SANDERSpecifications: -- 24" Width cap. - sanding head with a rubber covered contact roll and adjustable finishing platen, 10 HP motor main drive motor. -- 25" x 60" Abrasive belts, pneumatic abrasive belt tensioning. -- 0" - 5.9" thickness capacity, Power elevation for thickness opening with digital thickness programming. -- Variable conveyor feed speed from 15 - 50FPM, 1 HP feed motor. -- 5.9" Max. working thickness, 13" min. working length, -- Spring loaded holddown rolls.Complete with: -- Magnetic controls, (2) 4" dia. dust collection outlets, and safety shutoff. - 825 CFM Dust collection required. Optional: 10 HP Single Phase motorElectronic belt tracking for optimum belt life and sanding results. Ammeter for load monitoring main drive motor. Disc brake on the main motor. Pneumatic belt tensioning with quick release outboard support. Safety Interlocks are located on all access doors.

102" Width cap. Veneer Clipper completely reconditioned to modern mechanical and safety standards to meet todays manufacturing needs. Original machine frame will be fully disassembled cleaned and repainted. The frame is the only part of the original machine used and all components are upgraded.Mechanical upgrades include:1. 2-Hand anti-tie back push button cycle activation 2. Photo safety eyes located on both front and back side of blade3. Full safety guarding including a fully enclosed knife section 4. New electric motor and gear box main drive system5. New knife and shear bar6. All new electrical/control box with Components and Wiring7. All new upgraded bearings including replacing Babbitt bearings Machine comes with a full (1) year warranty

CARGATE D-860 Rotary Veneer Lathe, Heavy Duty: -- Built specifically to handle large-diameter logs as well as small logs. It has a log length capacity of an easy 8'-6" and a diameter capacity of up to 5', peeling down to perfect 4" cores for optimal log utilization. -- This moneymaker looks like a big brother to a Premier Lathe. It comes complete with beefy Bull Gears and boasts plenty of output capacity along with the following main features and components:Specifications: -- BRUNETTE MACHINE WORKS Hydraulic Retractable Spindles - 4" inner, 8" and 11" outer. These are the same spindles as are utilized on a Premier Lathe. -- The spindles are driven by angle-cut 72" diameter Oil-Bath Bull Gears. (This is actually identical to an upgrade to Premier lathes still running.) -- Factory Hydraulic Backup Roll. (This backup roll rides on adjustable rollers riding down on top of the carriage. This prevents the backup roll from pushing excessively hard against the core. It produces perfect 4" cores).Equipped with: -- DURAND Charger and Pumps (self-centering). -- Factory Log Deck - Complete with S-drive and Gearbox. -- Factory Air Trash Gate, Infeed Conveyor (infeed to chipper). Infeed to PRENTICE Air Bag Clipper, Timing Wheel and Holddowns. -- Factory 5' Wheel, 6-knife, Veneer Chipper with Hold-down Drum Roller, and S-drive complete. -- 6' FERANO Chip Screen and Conveyor. -- Steel Framework and 450 FPM plus unwind speed!Highlights & Background: -- This lathe is capable of peeling very high production. In 1967 it was regularly peeling 225,000 sq. ft. 3/8 basis, or 400 - 500 cubic meters per 8-hour shift. The lathe is in wonderful overall condition and portions can be turned on today although it has not seen service since 2005. When you think "CARGATE" think "big PREMIER" and you will have the right idea.Price shown is in US Dollars. - Experienced Owner is flexible to assist in removal and perhaps installation.

CARLSON CD PINNER PLUS Cabinet Door Clamp & Pinner; 30" Wide x 48" High max. Capability. The ProMax Cabinet Door Pinner is an affordable system that squares, clamps and fastens a variety of cabinet door styles and sizes. This machine is designed to handle stile widths between 1-1/4" and 3-1/2" in 1/8" increments and any rail widths. Standard product minimum: approximately 7" wide X 6" tall for 2" stile and rail cabinet doors. Standard product maximum: approximately 30" wide X 60" tall for 2" stile and rail cabinet doors.General Specifications: -- Standard joy stick operation allows quick and accurate size adjustments. -- The frame is ergonomically designed at an angle for easy placement of sub-assembled door parts and fast removal of the finished product. -- Operating controls are simple and convenient to minimize training time. -- Machine functions are air powered with programmable electrical controls for accurate and reliable operation.Includes: -- Air motor drive system. -- Standard clamp pads. -- Cope & Stick door fastening. -- Spare tool assembly. -- Size upgrade - Height 60". -- Miter capability. -- Safety light curtain. Features: -- Heavy duty frame, low maintenance, powered size adjustments, precision linear bearings, overhead mar-proof clamping, programmable controller.

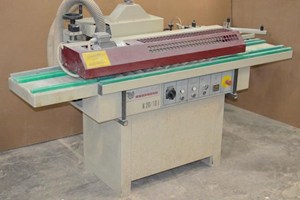

CASADEI K 20/10 I Compact EdgebanderSpecifications: -- Edgebanding thickness 0.4 - 3 mm (0.02" - 0.12"), -- Panel thickness 10 - 45 mm (0.39" - 1.77"), Min. panel width 90 mm (3.54"), Min. panel length 280 mm (11.02"). -- Feed speed 6 MPM (19 FPM). -- Table size 600 x 1,650 mm (23.62" x 64.96").Equipped with: -- 600 mm (23.62") Dia. Coil table. -- Automatic coil feed & Manual feed for HPL strips. -- Guillotine. -- Glue pot. -- Pressure section, with (3) Pressure rollers. -- 1/4 HP Feed belt motor. -- Front extension table & Outboard support. -- Control with Temperature controller with LED Display & Touchpad.Workstations: -- Front & Rear End Trim Unit, with 80 mm (3.15") Dia. Blades. -- Top & Bottom Flush Trim Unit, with Speed 9,000 RPM & 70 mm (2.76") Dia. Blades.Complete with: -- Instruction & Maintenance Manual.

CASADEI ALA 23 EDGEBANDER WITH CORNER ROUNDING0.4 - 15 mm (1/2") Edge cap., panel thickness 10 to 60 mm (.39" to 2.36"). Minimum panel length 120 mm (4-3/4") and 55 mm (2-1/8") minimum width. Equipped with: -- Quick heat-up glue system,(approx. 12 Min) 1.5 Kg glue pot capacity. -- Pressure roll section with (3) rolls - one driven. Pneumatic cut-off guillotine.Workstations: -- Double end trim, chamfers 0° - 15° -- Top & bottom flush/radius trim, bevels 0° - 15°. -- Double motor Corner Rounding station -- Top & bottom scraping for 3 mm radius, -- Top & bottom buffing (0.25 HP - 2,800 RPM motors).NOTE: Seller states that the buffing unit appears to have an electrical issue and is not currently being used by the current owner";Actual Model: "ALA 23 R"
