Woodworking Equipment For Sale

MARUNAKA Model RD – 8J WIDE Single Deck Veneer Roll Dryer;Complete with the following features: -- 1988 - year of manufacture. --Working width – 51"; --Length of the dryer – 24 Ft (4 Sections) --Type of heating - Steam --Operational in 2018 when mill closed --Professional rigging and loading available.

MARUNAKA Model RD-3UB/RD-6UB (Connected) Single Deck Veneer Roll Dryer;Complete with the following features: -- (3) 3 HP circulating fans with (1) 3 HP exhaust blower thru the ceiling. -- Optional heat source: electric (7) Elements/Zones, computer controlled thermocouples in addition to (2) Natural gas burners (OEM).. Both dryers have a 100amp circuit breaker with 100amp fuses. The RD 8 operates with 4 fan motors and 4 heaters. The RD 6 has 3 fan motors and 3 heaters";.. -- Capable of temperatures to 120° Celsius (250° Fahrenheit). -- Working width 1000 mm or about 39 inches. Veneer is fed endo.Please Note: -- Dryer is (2) separate units; all equipment will fit into a 40' container for shipment from Eastern USA. -- All equipment is in good working condition including all fans and blower, temperature control works properly; feed roll drive works well. -- Rolls have been nickel treated to minimize corrosion/oxidation. -- This dryer equipment is still in place. -- MARUNAKA (2) Models: RD-3UB and RD-6UB currently connected to increase capacity. Can easily be separated.NOTE: Refurbished in 2005, operated from 2005 - 2012. Still operational ready to work!

MASTER MACHINERY - MC-MDS-1: Single Spindle ShaperSpecifications -- Table size: 27-1/2" x 32". -- Spindle speed: 7,500 - 10,000 RPM. -- Main motor: 3 HP.

MASTERWOOD PROJECT 313 CNC MACHINING CENTER (W/ACT/BORING): -- Specifications:Working Capacity:"X" Axis 3,080 mm (121"), "Y" axis 1,100 mm (43") width; -- Positioning Speed:Programming speed in X-axis 197 FPM (60 MPM), Y-axis 162 FPM (49 MPM), Z-axis 58 FPM (18 MPM). -- Boring unit:(13) independent vertical spindles, (9) in X-axis, (5) in Y-axis; (4) horizontal spindles with (1 + 1) in X-axis for edge boring in the left- & right-hand panel edges. -- Machining:(1) 7.5 HP (5.6 kW) high speed router (1,000 - 24,000 RPM) by frequency inverter; 1.5 HP (1.1 kW), 6,000 RPM grooving saw with manual rotation for X-axis or Y-axis; -- Work Table: (6) moveable support rails with (2) vacuum cups ea., double zero settings, (6) pneumatic backstops and (2) pneumatic side stops creating (2) working zones. -- Operator & Machine Control:TECNOSUD "K68800" Microprocessor control for (3) axis, lineal, circular, and helical interpolation. Equipped with 14" color video graphic monitor, keyboard for data entry, 1.44 MB floppy disk drive, 64K RAM, RS-232 for possible connection to office PC, all mounted in separate free-standing control cabinet; features to run CPL/Parametric "TRIG" programming and "Spline" CAD/CAM. -- Complete with: Dual zone vacuum pump. Ontario Hydro approved electrics. -- Actual Model is MASTERWOOD PROJECT 313

MASTERWOOD - Project 450L: CNC Machining CenterSpecifications -- X-Y-Z Axis strokes: 5,820 - 1,900 - 350 mm.Axis speed X-Y-Z: 80 - 80 - 25 MP.Aluminum panel support blocks: 8.Middle reference stops: 8.Front reference stops: 9.Side reference stops: 2 dx - 2 sx.Panel carrying knives: 4. -- Distance between drills: 32 mm.Engine power: 1.7 kW.Drill rotation speed: 4,000 RPM.12 kW Air-cooled motor with: HSK 63 Tool holder. -- Numerical Control with: P; max. power: 37.3 kVA.Amps: 53.8.Working Pressure: 7 - 8 bar.Compressed air consumption: ~ 100 Nl/Min. -- Upper dust extraction outlet: Ø 250 mm. Dust extraction outlet for sawdust coming out of the conveyor belt: Ø 120 mm; dust extractor air output speed: 25 - 30 m/Sec; dust extractor air consumption: 4,900 cbm/Hr.Includes -- Vacuum Pump; (12) extra ISO collets; aggregate HSD.Note: Description based on Model Type, manufacturer's plate, and information from Seller. Please inspect to confirm the required specifications. Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

MASTERWOOD PROJECT 317 CNC MACHINING CENTER (P.T.P): Specifications -- Working Capacity: "X" Axis: 102" (2,600 mm); "Y" Axis: 37-1/2" (950 mm); "Z" Axis stroke: 5.9" (150 mm); max. material thickness: 2.36" (60 mm). -- Positioning Speed: "X" Axis: 164 FPM (50 MPM); "Y" Axis: 131 FPM (40 MPM); "Z" Axis: 25 FPM (8 MPM). -- Work Area: (6) Adjustable panel supports; ea. with: (2) Vacuum pods; (4) panel lifting blades for heavy parts; (6) fixed pop up rear stops; (1) side R/H stop; (1) L/H stop.Machine bed is divided into: (2) Independent working zones with mirror image capability. -- Boring Unit:.2 HP (1.5 kW) - 4,000 RPM Motor; (10) independent vertical boring spindles with: (7) Spindles in "X"-axis & (3) spindles in "Y"-axis. (6) Horizontal spindles with: (2 + 2) In "X"-axis; (1 + 1) in "Y"-axis; (1) 12,000 RPM "X"-axis grooving saw with: 125 mm Dia. blade. -- Machining: (1) 9 HP (6.7 kW) Vertically mounted electrospindle router with: ISO 30 Adaptor & ceramic bearings; variable speed: 6,000 - 24,000 RPM.(1) 4-Position automatic tool changer mounted to the machine head for "on the fly" ATC. -- Operator & Machine Control: PC Front-end controller; MASTERWOOD "MW 310" CNC + Windows Operating System; multitask software with: Graphic interactive editing & boring optimization program.Features -- 14" VGA Color monitor; MHZ processor; 64 MB SDRAM; 6.4 GB hard drive; 56 K modem, 1.44 MB floppy & CD ROM drives; Ethernet card; serial port; mouse; RS-232 port for remote programming from an office PC is possible -- Software includes: Realization of profiles & parametric drawings; graphic basic macros for simple & complex elaboration; graphic visualization of the surfaces to be machined; IN/OUT diagnostic; programming for drilling & routing operations with machine settings & tool editor.Includes -- Vacuum Pump.NOTE: Description based on Model Type, manufacturer's plate, and information from Seller; please inspect to confirm the required specifications. Dimensions & Weight data are based on: 3rd Party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

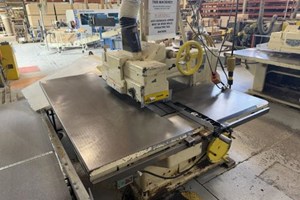

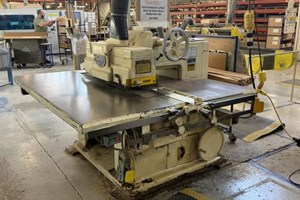

Mattison 404 Straight Line Rip 230 Volt 3 Phase 25 HP Total 230/460 Dual Voltage on 20HP Mandrel Motor

Mattison 202 Straight Line Rip

MATTISON - 404, ...Straight Line Rip SawSpecifications: -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.), 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from saw to left edge of table. -- 24-1/4" Between saw & column, and 24" rip distance to right of gauge. -- Top roller holddown with 7-1/2" shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features: -- Overhead cutting design with single cast chain links. -- Chain with automatic oil lubrication.. --4-Speed Feed: 62 - 93 - 124, & 186 FPM.

MATTISON - 202, ...Straight Line Rip SawSpecifications: -- 15 HP - 3,400 RPM Saw arbor motor, 9" - 14" max. blade capacity, 1-1/2" diameter arbor, overhead arbor design. -- 4" Max. depth of cut, 13" min. stock length, 24" max. rip capacity to the right of the blade, 77" x 65" table size.Equipped with & Features: --Overhead holddown with: (6) Pressure rollers, (3) front and (3) back; 2 HP feed drive, (4) feed speeds of 56 - 84 - 112 & 168 FPM (fixed at 25 FPM ).

MATTISON - 202: Straight Line Rip SawSpecifications -- 15 HP - 3,400 RPM Saw arbor motor; 9" - 14" max. blade capacity; 1-1/2" diameter arbor; overhead arbor design. -- 4" Max. depth of cut: 13" Min. stock length; 24" max. rip capacity to the right of the blade; 77" x 65" table size.Equipped with & Features --Overhead holddown with: (6) Pressure rollers; (3) front and (3) back; 2 HP feed drive; (4) feed speeds of: 56 - 84.

MATTISON - 404: Straight Line Rip SawSpecifications -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.); 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from: Saw to left edge of table. -- 24-1/4" Between saw & column; 24" rip distance: To right of gauge. -- Top roller holddown with: 7-1/2" Shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features -- Overhead cutting design with: Single cast chain links. -- Chain with: Automatic oil lubrication. -- Variable feed speed.NOTE from Seller: Saw will give an 8-foot glue line!

MATTISON - 202: Straight Line Rip SawSpecifications -- 15 HP - 3,400 RPM Saw arbor motor; 9" - 14" max. blade capacity; 1-1/2" diameter arbor; overhead arbor design. -- 4" Max. depth of cut: 13" Min. stock length; 24" max. rip capacity to the right of the blade; 77" x 65" table size.Equipped with & Features --Overhead holddown with: (6) Pressure rollers; (3) front and (3) back; 2 HP feed drive; (4) feed speeds of: 56 - 84.Note from the seller : Chain and lead guides are in very good condition.

MATTISON - 404: Straight Line Rip SawSpecifications -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.); 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from: Saw to left edge of table. -- 24-1/4" Between saw & column; 24" rip distance: To right of gauge. -- Top roller holddown with: 7-1/2" Shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features -- Overhead cutting design with: Single cast chain links. -- Chain with: Automatic oil lubrication. -- Variable feed speed -- Cater Laser

MATTISON - 404: Straight Line Rip SawSpecifications -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.); 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from: Saw to left edge of table. -- 24-1/4" Between saw & column; 24" rip distance: To right of gauge. -- Top roller holddown with: 7-1/2" Shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features -- Overhead cutting design with: Single cast chain links. -- Chain with: Automatic oil lubrication. -- Variable feed speed

Mattison 404 Rip Saw Seller was using until they upgraded to a gang rip. Ready to ship.

The Rip Saw is still in good running condition and still in use.

MATTISON - 404, ...Straight Line Rip SawSpecifications: approx.20HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.), 1-1/2" dia. arbor; 4" thickness capy. -- Table size: 65" x 77" Long. -- 30" Distance from saw to left edge of table. -- 24-1/4" Between saw & column and 24" rip distance to right of gauge. -- Top roller holddown with 7-1/2" shortest stock handled under (1) roll, 15" under (2) rolls.Equipped with & Features: -- Overhead cutting design with single cast chain links. -- Chain with automatic oil lubrication. -- 2 HP Feed motor with (2) feed speeds of 50 & 100 FPM

MATTISON 229 Push Feed Moulder4-Head Push Feed Moulder, 4" x 10" capacity. -- Head sequence: 10 HP Top head, 10 HP left head, 10 HP right head, 10 HP bottom head. -- 20 HP feed motor. -- 2-1/8" dia. top and bottom spindles; 1-13/16" dia. left and right spindles. -- Includes (6) extra heads that go with the machine.Approximate dimensions of 11 feet long, 4.5 feet deep, and 5.5 feet tall. The machine weight is approx. 5 Tons.

Description Mattison "55-F" Turning Lathe - Back Knife 30" Cap. in length and 4" x 4" cap. dia. - Pneumatic feed; rear arbor with cutter-head driven by a 10 HP V-belt motor. Work piece rotation is belt driven by main motor with variable speed gear box, double end drive, mechanical feed of work piece into cutter head. Rear dust shroud with collection outlet.
