Woodworking Equipment For Sale

Costa 53" Sander Model 80 CT 1350 Wide Belt Sander (2) Machines available!

Costa Model 81 C 1350 Wide Belt Sander

--This machine is in Auction @ https://exfactoryauctions.com/Detail/FD-230117/event/A122024$1. --Low starting bid! Equipped with: 1st & 2nd Heads: Each with 2” W Cross brush belts, 2.5 kW (3.35 HP) - 1,690 RPM Motor, Rotating belt on vertical axis supports series of pads with abrasive paper, Pads are adjustable to vary angle of contact on panel during rotation of belt, Pads with abrasive strip makes contact with workpieces from both sides as it rotates. (3) 2” Dia. Rubberized hold-down rolls, (1) before and after each cross brush belt head. 3rd & 4th Heads: Each with 62” L x 16” Dia. Brush Roll & 2.5 kW (3.35 HP) - 1,140 RPM Motor, & Horizontal angle adjustment. 2-5/8” dia x 7/8” w swivel rubber wheels before each brush roll head. (1) 2” Dia. Rubberized hold-down roll after last brush roll head. 53-1/2” W x 12’ L Vacuum feed belt, with 2.64 kW (3-1/2 HP) - 1,695 RPM Motor, Holes on 1-1/2” W & 2” L Centers, 2-1/2” Dia. Rubber-covered infeed & outfeed rolls, Motorized adjustment with Digital readout with LED Display. Control motor load meters. Complete with: Instruction Manual.

CR Onsrud Inverted Router more information to follow

- Dual Supported Gantry: Enhances stability and precision with independent servo motors and drives on both sides. - 18 HP Spindle: High-power, fully programmable, and capable of reaching 24,000 RPM, suitable for a wide range of routing and drilling tasks. - 5'x20' Phenolic Vacuum Grid Table: Ensures superior material hold-down through vacuum zones, ideal for flow-through spoil boards or dedicated fixtures. - Integrated Dust Collection System: Keeps the work area clean with integrated dust extraction hoods for chip removal during operations. - 12-Tool Dynamic Automatic Rotary Tool Changer: Facilitates efficient tool changes, with a fully servo-controlled system for quick transitions between tools. - OSAI PC Front Series Controller: Provides advanced control options with a high-resolution touch screen, PLC capabilities, and compatibility with AlphaCAM for programming automation. - 11-inch Z-Stroke: Suitable for various materials and applications, offering flexibility with under-bridge clearance. - 2-Year Warranty: Includes full parts and labor coverage, ensuring reliability and long-term operational support. Included Options: - 9 Spindle Drilling Block Package: Allows for simultaneous or independent drilling along the X and Y axes. - Pneumatic-Controlled Vacuum Table Switch: Actuated via a push-button or PLC control for precise operation. - 20 KVA Isolation Transformer: Ensures stable power supply and noise filtering for optimal performance.

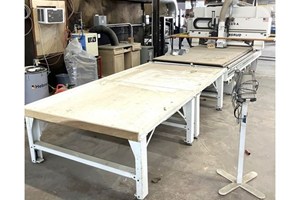

Equipment located in Fort Worth, TX. 2018 CR Onsrud M-Series CNC Router w/ 5'x10' Table, Model: 121M12DA, 3-Phase, 460-V, 60-HZ, (2) Becker VTTLF2.250 Vacuum Pumps, & Fanuc iPendant Controller w/ Stand, S/N: 121G180501 All equipment is sold “As Is, Where Is”. Reasonable offers will be considered. Can be inspected by appointment only. Please reference RTR# 6053590-01 All offers, including offers at the asking price are subject to review and acceptance by our client. Prices are subject to change without notice. There is a eight percent transaction fee on every invoice. For a complete description of our Terms of Sale, please contact an RTR Sales Representative. Stock# RTR# 6053590-01 Contact Info: RTR Services Inc. 1-800-238-3294

Model B2062 220 V / 3 Ph / 60 Hz Serial Number 20749 12" Cabinet Saw

Craftsman Drill Press

This item is in an Auction on exfactoryauctions.com. Go here to view item: http://exf.ac/i6k ROCKWELL/CRESCENT 5-Head Single Head Tenoner Equipped with: Manually-operated sliding table. (1) Top & (1) Bottom Tenon Heads, Each with 2 HP Motor, (1) Top & (1) Bottom Cope Heads, Each with 1 HP Motor, & (1) 7" Cutoff head with 1 HP Motor.

?Cresswood EF-60 Grinder 100 HP 60” Wide Feed Opening Includes 60”W Vibrating Conveyor (shaker table)

CUSTOM-BUILT 90º: Inside Notching MachineSpecifications. For precision notching of aluminum or wood door rails.

Each system is custom built to fit your specifications. Standard Electric Lateral Chain Feeders include Basic Feeder with transport length of 30" Workpiece width 3/4" - 9-1/4" Min. Workpiece length 12" Drive system with 4 HP total drive system Feed speed range 50 - 250 ft/min (up to 400ft/min available) Thickness 1/4" - 4" Steel flat top chain 60 Cycle per minute Adjustable Fence 35MM Feed Wheel Shafts Options 6'-16' Lateral Chain Feeder Feed Wheel Knurled, Urethane or Light Knurl Hub Options 3/4" or 2" Powder Coating Bridge Side Fence Feed Speeds up to 400 FPM Short Stock Fence 12" Wide Capacty

CUSTOM BUILT - 78" x 150": Panel & Door ClampSpecifications -- Work area: 78" x 150". -- (10) Clamps.

Orbital Sander Line 2004 DMC Unisand 2000 Timesavers Model 252-4C

D M C - UNISAND 135, ...3-Head Wide Belt Veneer & Finishing Sander. -- General Data:3-Head, 51" (1,300 mm) nominal width cap.; motorized part thickness opening with LED readout; 1/8" to 4" max. - Head sequence: Cross belt, rubber-covered Drum, Pad. Head Configuration/Specs: -- 1st Head: Cross belt with: EPICS 44 Segmented electronically controlled air platen; 2-speed abrasive belt; approx. 36/72 FPM (11/22 MPS) linear speed; driven by 19 & 24 HP motors; 6" wide x 238" (6,050 mm) long abrasive belt. Inside synchronized Chevron belt, approx. 228" (5,800 mm) long.Pad unit with pneumatic cylinders: Each acting on a high absorption felt strip; working pressure controlled via control panel. HYDRA Belt: 2' Electronic control with oscillating blower for cleaning. -- 2nd Head: Rubber-covered 45-durometer steel roll, 9.8" (250 mm) dia. with: 18 HP 2-speed motor, 52" x 103" (4,055 mm) long oscillating abrasive belt with electronic tracking; air blast abrasive belt cleaner. Belt runs approx. 3,550 FPM (18 MPS) linear speed; adjustment & indicator of working position. -- 3rd Head: Flexible Sanding Platen with: EPICS 44 Segmented electronically controlled air platens; 3-speed 24 HP motors; 52" x 103" (4,055 MM) long abrasive oscillating belt with electronic tracking, timed oscillating air blast abrasive belt cleaner.Pad unit composed of: Pneumatic cylinders, each acting on a high absorption felt strip. Working pressure controlled vial control panel. Special rails allowing a quick change of graphite cloth on pad. Interchangeable system to modify the hardness, stiffness, and profile of the contact surface. Controller: -- DMC "HYDRA 30" Upgraded computer with: Working position display modes mounted in a separate control cabinet; automatic thickness device reads and adjusts feet table height, motor load meters. Transport Belt Drive: -- Variable feed speed of 16 to 82 FPM, conveyor feed drive, infeed & outfeed holddown pinch rolls on all heads; infeed hand safety stop, outfeed emergency stop; high efficiency dust extraction and separate control console with monitor, keypad, etc. Also included: -- Cleaning brush head at machine discharge. -- High pressure vacuum blower. -- Dust manifold. -- Extended outfeed table.

DMC - UNISAND 2000-M2, ...Wide Belt Sander (2) Heads -- 53" Width cap. Drum, Platen.Head Configuration: --1st Head: 11" dia. (300 mm) Rubber-Covered Contac; (2) speeds or inverter adjustable 20 - 25 HP; Varied RPM. --2nd Head: Combination head with drum and graphite covered 2-1/2" finishing platen; 25 HP.Specifications: -- 54"x 103" Abrasive belts with electronic tracking. -- Shoe & Roller Holddowns. -- "Hydra 35" Computor controlled; set-up functions with keypad and LCD screen. -- Conveyor belt feed with variable feed speed from 11 - 60 FPM; 6.4 HP feed drive. -- Vacuum conveyor bed with: 7.5 HP Motor and suction fan. -- Automatic conveyor belt tensioning & tracking. -- Motorized part thickness opening with: LED Readout; 1/8" - 4" max. opening; automatic part thickness set-up sensor. Equipped with & Features: -- Infeed safety stop, outfeed emergency stop, motor load meters.2-Roll infeed conveyor extension; high efficiency dust extraction.

DMC UNISAND K (3) Bottom and (3)Top heads wide belt sander. --, 43" max. width. - Bottom Head sequence : 1st Head Contact roll, approx.18.5 KW motor- 2nd Bottom Head Contact roll, 2rd Bottom head, Combination head with roll and platen , approx.15 KW 2-speed motor, belt speed 118 m/sec. -- Bottom panel brush. -- Top Heads: 1st Top Head: Rubber covered contact roll approx. 18.5 KW motor, 2 speed, belt speed 9/18 M/Sec. adjustable contact roll with pneumatic grit adjustment. 2nd and 3rd Top Head: Combination head with Rubber covered contact roll and polishing platen, approx. 18.5 KW HP motor, adjustable contact roll with pneumatic grit adjustment.Top panel brush. -- 44"x 103" abrasive belts with electronic tracking; computer controlled set-up functions with key pad and LCD screen. -- Vacuum Conveyor feed belt with variable feed speed from 11 - 60 FPM, approx. 7.5 KW HP feed drive, automatic conveyor belt tensioning & tracking. -- Infeed & outfeed holddown pinch rolls on all heads, motorized part thickness opening with LED readout, 1/8" - 4" max opening, automatic part thickness set-up sensor. -- Complete with: Infeed safety stop, outfeed emergency stop, motor load meters, high efficiency dust extraction and control console with monitor. -- Actual model USK1350-IM3 + USK1350

DMC UNISAND K 1100 Wide belt sander4-Head, 43" (1,100 mm) max. width cap. Head sequence: (3) Contact rolls and (1) Combi with roller and segmented platen.Heads configuration: -- 1st Head: Helical grooved steel contact roll, 10" dia., 48 HP motor. -- 2nd Head: Helically grooved rubber covered contact roll, 12-1/2" dia. and 65-Shore covering hardness, 35 HP motor. -- 3rd Head: Helically grooved rubber covered contact roll, 12-1/2" dia. 45-Shore covering hardness, 30 HP motor. -- 4th Head: Combi head with roller covered with rubber, 30 shore and Finishing sanding pad unit , 30 HP 2-speed motor with segmented pads pneumatically controlled -- All heads use 44" x 103" (to be confirmed) abrasive belts and are equipped with electronic tracking, automatic tensioning, automatic emergency breaking, and oscillating sanding belt cleaners.Controls: -- "HYDRA V-PAD" 10" Touch-screen computer for setup functions, color LCD Display, allows operator to setup/recall part thickness, -- Conveyor feed speed (3.5 - 18 MPM), -- Abrasive belt direction, and reversible speed setting of 4th head. -- Conveyor belt feed with inverter control, feed speeds from 11 - 60 FPM, 5.5 HP feed drive; -- Infeed & outfeed holddown pinch rolls on all heads, automatic part thickness setup with the moving feed belt, -- 2-speed motorized part thickness adjustment, 1/8" - 6" max. opening; -- Infeed & outfeed motorized conveyor extension rollers, automatic part thickness setup sensor. Complete with: -- Safety stop at infeed, -- Anti-kickback device, -- Infeed & outfeed emergency stops, -- Motor load meters, i -- Infeed & outfeed idle rollers, -- High efficiency dust extraction, and control console with monitor.Note: (spare parts not installed) New feed belt , new front pressure roller, new front pressure bar and several new small parts for approx $15,000 of value +11 boxes (approx 5 belts/ box) sanding belts 100 grit, 120 grit, 180 grit and 220 grit.

DMCTC 1350-M2-RP Orbital Sander; (2) Heads, 53" Width cap. Drum, Combination Head.Head Configuration: --1st Head:10" Dia. helical grooved rubber covered calibrating roller, 26 kw (34 HP) motor. --2nd Head: Rubber covered contact roller with finishing platen 18 kw ( 28.5 HP) motor.Specifications: --Working width 1350 mm. -- Max thickness 170 mm --Belt size both heads 1370 mm X 2620 mm --Feed speeds variable from 3.5 -18 m/min. Feed motor 2.2 kw ( 3 HP) motor. --Sander dim. L 2600 mm X W 2400 mm X H 2550 mm --Weight 2900 kg.Equipped With: --Electronic sanding belt oscillation --Exhaust hoods with 4 outlets --Motor safety switch for main motor --Power rise and fall --Panel cleaning brushThere is a crack in the plastic housing but it does not affect the functionality of the machine.

D M C FINESAND 130 2PO WIDE BELT (50" - 90", 2-HEAD): -- Specifications:Orbital Pad Sander, designed for cross-grain scratch removal on style & rail frames; with (2) Orbital Platens & (1) Brush. -- Working Capacity: Width 51", height/opening 1/8" - 4-5/8", motorized part thickness adjustment with digital readout, (4) screw jacks rise & fall. -- Sanding Heads: (2) 10" Wide Platen heads with rubber surface for elimination of abrasive belt cross-grain scratches. Dual orbital action heads with (1) high speed orbit on sanding pad, powered by 5.5 HP motor, and a secondary "low RPM" orbit on head assembly (1.5 HP motor), superimposed over the high-speed orbit for fast cutting action. -- Rotating Cleaning brush on outfeed side. Abrasive material for Sanding Heads is 18" x 52" in size. -- Feed Conveyor: Variable feed speed from 6 - 40 FPM, inverter controlled by 5.5 HP motor; vacuum conveyor bed with 15 HP blower motor. -- Complete With: - Digital height readout. - Infeed and outfeed rubber coated hold-down rolls. - Infeed hand safety stop bar, emergency e-stop. - Star-Delta motor starter. - (2) Dial indicator motor load meters.
