Panel Saws For Sale

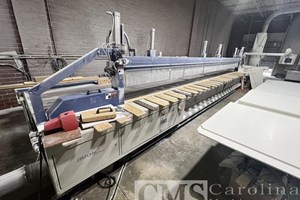

gabbiani g 2 Single beam panel saw for industrial applications - Cutting dimensions: 4500 x 4300 mm - Max. blade protrusion: max 130 mm - Max. saw carriage speed: 170 m/min - Max. pusher speed: 135 m/min - max 22 kW-50Hz main blade engine - Saw carriage runs on rectified round guides (opt. prismatic) - HI-TRONIC device - FLEXCUT 1/S for simultaneous execution of differentiated cuts flexstore elr Loading flexible warehouse with 3-axes - Variable configuration of number station – available surface up to 12 x 60 mt - Storage widtht: 7 - 9 - 12 m - Panel length: mm 1.800 ÷ 3.200 mm (2200 ÷ 4250 mm. Opt.) - Panel width: 800 ÷ 2.200 mm - Panel thickness: 10 ÷ 40 mm (3mm. Opz.) - Max. panel weight: 200 Kg - Loading arm with 3 degrees of freedom + rotation (opt.) - Vacuum loading arm with electronic adjustment depending of the dimension of the panels - Device for the automatic detachment of the panels - Check device for the detachment of the panels - Offcuts management - Mixed stacks management Price includes dismantling and install.

1995 SCMI Sliding Table Saw 230V 60HZ Model SI16 W

SCMI 5300W Sliding Table Saw

2014 SCMI ALFA 32C Beam Saw 230 Volt S/N AR3815

Selco WNT610 Rear Load Panel Saw Biesse Winstore Material Handling System This system is already dismantled by a technician and ready to be shipped. Installation can also be provided.

Selco EB80 Panel Saw This machine has already been dismantled and removed from service. It is ready to load. - 2004 Selco EB 80 - Three air flow tables - 144? cut line - Rear programmable pushing fence - 7 grippers - Auto saw height up to 80mm - 18 hp main motor - Programmable saw carriage speed for cutting and return stroke - PC controller with software

Giben WNAR6 Series Twin Pusher Angular Panel Saw Cutting length rip cut 3200 mm Cutting width cross cut 2200 mm Projection height 95 mm Lateral loading lift table with direct motorized infeed and right motorized infeed 2200 mm width interior panel turning station in the rip cut section Book aligners for both long and short rip stacks 17 material clamps Split pusher in the cross cut area

Selco WNT 200 Rear Load Panel Saw S/N 400.066.94

Model: EB108 Active Description: cutting dimensions 4300x4400mm optimization main motor power 13,5kW scoring unit motor power 2,2kW cutting height 107mm 6 pneumatic clamps feeding speed 5-100m/min beam speed 80m/min Year: 2007

SELCO - EB 70 L, ...CNC Front-Load Horizontal Beam CNC Panel SawSpecifications & Features -- 126" (3,200 mm) Overall cutting length, 2-3/4" cutting height (80 mm saw blade projection); 10 HP main & 3 HP scoring motor. -- Modular roller rear machine table; side aligning device for squaring ripped strips out to 59". -- Variable saw carriage travel speed from: 0 - 164 FPM (0 - 50 MPM). -- Electronically controlled overhead program fence; rack & pinion driven; forward speed of 80 FPM, 131 FPM return speed.Equipped with: -- (6) Clamps (open up to 70 mm - 2-3/4"); (3) are closely spaced in crosscut area & (3) are at equal distance in rip cut area; AC Servo motor drives on both saw carriage & pusher fence. -- PC Controller with: Graphics color monitor & "Assist Line"; LED readout integrated into "high tech" look operator control panel (displays cutting dimensions & patterns), (400) cutting patterns with (50) different dimensions for ea. pattern, self-diagnostic. Machine Features -- 1,500 mm (59") Long crosscut fence (front-to-back); (1) side/crosscut aligner. -- (1) Front mounted air flotation table in the crosscut area (24" x 80"), and (2) front mounted air flotation tables with patented rounded front for moving panel from rip to crosscut position (24" x 59" each). -- 36" Working height; rear of machine partially enclosed for safety.

SELCO EB 70 L CNC Front-Load Horizontal Beam CNC Panel SawSpecifications & features: -- 126" (3,200 mm) Overall cutting length, 2.75" cutting height (80 mm saw blade projection), 10 HP main & 3 HP scoring motor. -- Modular roller rear machine table, side aligning device for squaring ripped strips out to 59". -- Variable saw carriage travel speed from 0 - 164 FPM (0 - 50 MPM). -- Electronically controlled overhead program fence, rack & pinion driven, forward speed of 80 FPM, 131 FPM return speed.Equipped with: -- (6) Clamps (open up to 70 mm - 2-3/4"), (3) are closely spaced in crosscut area & (4) are at equal distance in rip cut area; AC Servo motor drives on both saw carriage & pusher fence. -- PC Controller with: Graphics color monitor & "Assist Line"; LED readout integrated into "high tech" look operator control panel (displays cutting dimensions & patterns), (400) cutting patterns with (50) different dimensions for ea. pattern, self-diagnostic. Machine features: -- 1,500 mm (59") Long crosscut fence (front-to-back), (1) side/crosscut aligner. -- (1) Front mounted air flotation table in the crosscut area and (2) front mounted air flotation tables with patented rounded front for moving panel from rip to crosscut position (24" x 59" each). -- 36" Working height; rear of machine partially enclosed for safety.

SELCO WNT 7/730 REAR LOAD, AUTOMATIC PANEL SAW -- Specifications: 177" (4,500 mm) Overall cutting length, 5" (127 mm) max. saw blade projection, 29 HP (22 KW) main & 3.5 HP (2.6 KW) scoring motor. -- Saw Carriage:Variable saw carriage speed from 0 - 606 FPM (0 - 185 MPM), return speed 600 FPM (185 MPM); Rack & pinion drive, driven by AC brushless Servo motors. -- Pusher Fence:Electronically controlled overhead program fence with (8) pneumatic gripper clamps (open up to 5" / 128 mm).Forward speed of 295 FPM (90 MPM) & return speed of 295 FPM (90 MPM); rack & pinion drive, driven by AC brushless Servo motors. -- Operator & Machine Control:PC front end with Selco "OSI" + WINDOWS "7" operating system with easy programming of very complex cutting patterns.15" Flat screen monitor displays REAL-TIME graphics of cutting dimensions & patterns, program cutting list, manual cuts, diagnostic & on-line help.Data input by industrial keyboard & mouse, floppy disk or CD; direct downloading from office PC is possible.OSI (Open Selco Interface) guarantees fully automatic management of cutting patterns by optimizing all machine movements (pressure beam, saw carriage and side aligner pusher positioning, etc.).The numerical control adjusts the optimum saw blade projection for the stack of panels being cut and sets the most appropriate cutting speed, in relation to the stack itself and, when necessary, to the width of trim cut too. -- Rear Load Lift Table:Automatic lift table 173" x 87" (4,400 x 2,200 mm), 12,000 Lbs (5,455 KG) lift capacity.4 HP (2.3 kW) Motor for raise-and-lower, encoder-controlled guide rods for automatic book height adjustment; 28.7" (730 mm) max book height w/o a pit or risers. -- Rear of machine:(3) Lateral aligners to accurately position book of panels on rear table prior to cutting.Rear modular roller support rails with 80 mm dia rollers; rear of machine enclosed for safety. -- Front of machine:Automatic side/crosscut aligning device located inside the pressure beam aligns the panels against the right angle fence prior to cross-cutting, 2.4" - 87" (60 - 2,200 mm) stroke.90" (2,300 mm) Long crosscut fence (front-to-back); (4) Front mounted air flotation tables with rounded fronts 26" x 81" (650 x 2,050 mm). -- Complete with: "Quick Change" saw blade system; "DIGISET" electronic scoring adjustment; Selco "Quick-Opti" optimizing software; CP link. -- Options Include:173" x 87" (4,400 x 2,200 mm), LH facing, rear in-feed/out-feed conveyors with fork cut-outs that allow for staging/loading/unloading from the Rear LH side of the machine. -- Actual Model is SELCO WNT 7/730/4500.

SELCO EBT 120 REAR LOAD, AUTOMATIC PANEL SAW: -- Specifications:175" (4,450 mm) Overall cutting length & 4.8" (122 mm) max. saw blade projection. 20 HP (15 kW) Main saw motor, 3.0 HP (2.2 kW) scoring motor. "DIGISET" electronic scoring blade adjustment from the PC. -- Saw Carriage:Variable saw carriage forward travel speed 0 - 426 FPM (0 - 130 MPM), return speed 426 FPM (130 MPM). -- Pusher Fence:Electronically controlled overhead program fence, rack & pinion drive, variable forward speed 0 - 262 FPM (0 - 80 MPM), return speed 262 FPM (80 MPM); both the saw carriage and pusher driven by AC brushless Servo motors. --(8) Gripper Clamps (open up to 127 mm), of which (4) are closely spaced in crosscut area and the other (4) are at equal distance in rip cut area. -- Operator Interface:PC front end with Selco "NC 500" + Windows "XP" operating system; 15" flat screen control panel, standard keyboard, on-board optimization (displays cutting dimensions & patterns), possible tele-service diagnostic via telephone line, data input by keyboard or possible direct downloading from office PC. -- Rear Load System:Automatic rear loading lift table; 177" (4,500 mm) x 87" (2,200 mm) max panel size; 28.75" (730 mm) max. Stack height (max. stack height with pit or risers 812 mm / 32"); 10,000 Lbs (4,500 kG) cap. with 4 HP (3 kW) motor for raise-and-lower, encoder controlled guide rods for automatic book height adjustment. -- Rear of Machine:(3) Lateral aligners to accurately position book of panels on rear saw table prior to cutting; modular roller rear machine table with (12) roller track modules, side aligning device cross aligners to accurately position book of panels against the right angle fence prior to crosscutting. -- Complete with:90" (2,300 mm) Long crosscut fence (front-to-back), (2) side/crosscut aligners, "Quick Change" saw blade replacement system. --(4) Front mounted air flotation table with rounded front 24" x 80" (650 x 2,050 mm); rear of machine enclosed for safety. -- NOTE: Forward pusher speed for this machine is currently set at 82 FPM (25 MPM), return speed currently set at 197 FPM (60 MPM) according the CE safety standards. -- Actual Model is SELCO EBT 120 L ACTIVE 4500/2200.

Model SF-45A 600 V / 3 Ph / 60 Hz 10ft table 8.5 HP main motor provides(2) cutting speeds 3,800 & 5,200 RPM

The seller has confirmed that this is in fair working/running condition and it is ready to load! - Cross cut panel saw

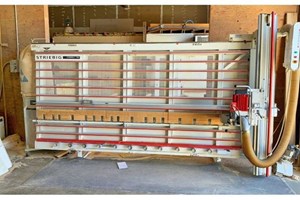

This item is in an Auction on exfactoryauctions.com. Go here to view item: http://exf.ac/i6f STRIEBIG STANDARD 5192A/875 SSD 2 6-1/4' x 13-3/4' Vertical Panel Saw (No Scoring) Specifications: Max. depth of cut 3-1/8". Blade dia. 300 mm (11.81"). Arbor dia. 30 mm (1.18"). Blade speed 4,750 RPM. Equipped with: 4.4 kW (6 HP) - 3,450 RPM Motor. Fold out shelf. Lower roller supports.

STRIEBIG COMPACT TRK Vertical Panel Saw Specifications: -- 5' x 10' Cap., 2-3/8" cutting depth, 4 HP motor with automatic Star-Delta starter & electric brake (stops within 4 Sec); 250 mm dia. (9-7/8") blade with 30 mm bore - 5,400 RPM rotation.Features: -- Auto-deflecting aluminum lath grid, auxiliary support channel for tall & narrow parts, repeat rip gauge with 23-1/2' cap., unique lower roller panel support system (1,200 Lbs cap.). Complete with: -- Program rail with stops for rip-cut presets; 4" dust extraction connection (requires auxiliary collection); patented "TRK" dust extraction system; (2) each adjustable base & rear supports for free-standing installation.Actual model is STRIEBIG Compact TRK 4164C.

WADKIN CP 32 Sliding Table SawSpecifications: -- 10' Cutting length sliding table saw with scoring unit. -- Equipped with: -- 9 HP 2-speeed (2,880 & 4,080 RPM) Main motor and 3/4 HP, 9,900 RPM scoring motor; 14" (standard) - 16" max. dia. saw blade. -- 4" Dia. scoring blade; 0° to 45° tilting arbor; sliding table size 15-3/4" x 125". -- Fixed table 29" x 42"; 36" max rip cap. from saw blade to rip fence.

Panel Rip Saw available in 60" and 72" width capacity - Main Motor: 40 HP (460 V) - Infeed Motor: 3 HP - Main Spindle: 74 mm - Main Spindle Speed: 2500 RPM - Blade Diameter: 205 mm - Moveable blades with locking collars - Maximum Width: 60" or 70" - (12) Rubber Hold Down Rollers - Quick Change Blade Holders - Thickness Capacity: 0-30 mm - Variable Feed Speed: 0-15 meters/minute - Anti-Kickback Safeguard Options: - Semi Automatic Hydraulic Infeed & Outfeed Tables (3000 kg) - Automatic Infeed System (including lift table)
