BUSELLATO JET 4002 XL CNC MACHINING CENTER (W/ATC/BORING): -- Specifications: Working Field "X" Axis of 168.1" (4,270 mm); "Y" axis of 47.2" (1,200 mm); "Z" axis stroke 9.8" (250 mm); 6.8" (175 mm) max. material thickness. -- Positioning Speed:"X" Axis at 230 FPM (70 MPM); "Y" axis at 197 FPM (60 MPM); "Z" axis 49 FPM (15 MPM). -- Worktable:(8) Pneumatic locking panel supports, (3) vacuum pods per support.(8) Pneumatic backstops, (2) pneumatic side stops & (2) pneumatic central stops.(4) Independent working zones; jig locking device on (2) work areas. -- Boring Head:(1) 4 HP (3 kW) Motor - 4,000 RPM; (20) vertical spindles with: (12) Spindles in "X" axis & (8) spindles in "Y" axis. -- Machining:(1) Vertically mounted 10 HP (7.5 kW) electro spindle with: ISO-30 Adaptor (0 - 18,000 RPM) with RH or LH rotation; (1) 6-position automatic tool changer.(1) Additional 5 HP (3.8 kW) vertical router; routers are driven by an 11 kW Digital Inverter -- Operator & Machine Control:PC Front-End with: "GENESIS EVOLUTION" 2.2.1 + Windows "NT" Operating System; 15" color monitor; 1.44 MB floppy & 32X CD ROM drives; 8.4 GB hard disk; 64 MB RAM; (2) RS 232 serial ports; integrated modem; Ethernet card, all built into a protective cabinet enclosure.GENESIS Software is continuously online providing real-time information on tool position & error messages, visualization of RPM, current load meter, and more; positioning of panel supports and vacuum cups.Software features: Automatic generation of G & M code, stop & restart, machine diagnostics, automatic optimization, and full graphic display with the possibility to associate up to (11) parameters and programming of up to (2,000) work lines per single program. -- Complete with:Front safety mats that will instantly place machine in "Pause Cycle" when operator steps onto the mats. Safety Perimeter Fencing. Transformer for 480 V. -- Actual Model is: Busellato Jet 4002 XL.

Buss No. 55 Planer

BUSS 44 SINGLE SIDED PLANER 36" x 6" Cap., 40 HP - 3,600 RPM direct drive single top head. -- Spiral NEWMAN WHITNEY cutterheadwith replaceable carbide inserts, top sectional infeed rolls and sectional chip breaker. -- 1/16" Min. - 8" max. manual opening with indicator, min. stock length 14" and 4" butted, motorized table raise-and-lower. Variable speed infeed 28 - 85 FPM by separate 3 HP motor. -- Pressure lubricator, push button magnetic control & shaving hood.

53" 3-head sander 1st head - Drum 2nd head - Combo head 3rd head - polishing head outlet rotary cleaning brush belts 54" x 103" Feed variable 8-43 FPM Controller with color screen Manuals available

Butfering 2-Head 53" Wide Belt Sander

--MAKE OFFER!--EXCELLENT CONDITION!-- BÜTFERING SWT134/RRC 1100 mm (43.31") 3-Head Wide Belt Sander, with Combination Head Specifications: Suitable for sanding of veneered parts in 1 or 2 passes with segmented pad only & Thickness tolerance compensation up to 1 mm (0.04”), Suitable for sanding of solid wood & wood based materials in single pass with 3 grit sequence. Thickness cap. 3 mm - 160 mm (0.19” - 6.30"). Variable feed speeds 2.5 - 13 MPM (8.5 - 42 FPM). Equipped with: 1st Head: 160 mm (6.30”) Dia. Grooved steel contact roll, with Grit size compensation, Automatic positioning for calibrating, & 15 kW (20 HP) - 2,930 RPM Motor with Electric braking. 2nd Head: 160 mm (6.30”) Dia. 85° Shore Grooved rubber-covered contact roll, with Grit size compensation, Automatic positioning for calibrating, & 15 kW (20 HP) - 2,930 RPM Motor with Electric braking. 3rd Head: Combination head, with 60 mm (6.30”) Dia. 65° Shore Grooved rubber-covered contact roll, 3-3/4" Dia. Smooth steel contact roll, 3-1/8” W Electronically-controlled segmented pad finishing platen with 35 mm (1.38”) W Segments, & 18 kW (15 HP) Motor with Electric braking. 1-7/8” Dia. Rubber-covered roller & spring-loaded segmented nylon rollers on infeed & 1-7/8” Dia. Rubber-covered spring-loaded hold-down rollers between heads & after 3rd head. 1,120 mm x 1,900 mm (44.09" x 74.80") Abrasive belts, with Electronic oscillation. 43-1/4” W x 5’ L Feed belt, with 1.3 kW (1-3/4 HP) Feed motor with Frequency inverter, 44” W x 8” L 2-Roll Infeed Extension, & Automatic conveyor belt tracking. Power raising of conveyor bed, with Automatic thickness adjustment & Over thickness Protection. LCD Touchscreen control, with 5-1/2” Display, & Motor load meters. Complete with: Original Production Instructions. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

Manufacturer’s Specification Single belt max. passage height : 150 mm max. working width : 1100 mm combination unit design roller/electronic shoe electronic single links segment width 50 mm Dedusting brush Sanding belt length 1900 mm Sanding belt width 1120 mm Motor. KW 10 Feed speed 4 and 8 m/min Unvfu3R3Ap Weight approx. : 1900 kg Dimension : 2000 x 2000 x 2600 mm

Homag Sander Butfering W300 SWT345/QCUH (4) Heads wide belt sander53" Width cap. Cross belt , Combi head Electronic platen, Universal oscillating brushing cups, Chevron super-finish head Electronic platen, Cleaning brushHead Configuration1st Head: processing unit Cross belt Electronic platen2nd Head: Processing unit Combi head Electronic platen3rd Head: Processing unit Universal oscillating brushing cups (includes additional brass wire 300mm drum and 300mm Tynex Drum in carts never used4th Head: Processing unit Chevron super-finish head Electronic platen5th Station Head cleaning brushSpecifications -- Air jet blowers -- Integrated vacuum -- Bed width 53"; -- Includes AC unit -- Digital calliper -- About 30 belts different grit sizes -- All heads are program controlled5’ out feed table with interoll rubber rollersEquipped with & Features -- Custom metal fencing -- 6 custom metal belt racks -- Voltage 460 -- Machine commissioned June 2021 -- Sellerwill include preparing the machine for shipping and loading NOTE Reason for sale. Changes in manufacturing process.

BÜTFERING SBO 109K 37" Single-Head Wide Belt Sander, with Combination HeadSpecifications: -- Working width 950 mm (37.40"). -- Thickness cap. 3 - 150 mm (0.12" - 5.91"). -- Feed speeds 14 & 28 FPM.Equipped with: -- Combination head, with Height adjustable steel contact roll with grit compensation & finishing platen, & 11 kW (14.75 HP) Motor with Electric brake. -- Infeed & outfeed hold-down rolls. -- Abrasive belt size 37" x 75", with Belt tracking & Electronic belt oscillation system. -- 970 mm (38.19") W Feed belt, with 0.86 HP Motor. -- Control, with Motorized part thickness adjustment with LED display & Motor load meter.

C.R ONSRUD - Pro Series 615DG24H8 "Dual Gantry Series" CNC router with ATC Multi spindles:5' X 51' working table with Multi spindles and Dual Gantry aluminum non-vacuum table. -- Features:Dual Gantry each with (4) spindles, each gantry has its own 12 position hide away tool changer. -- Thermal Heat Treated:Stress Relieved, & Normalized One-Piece, Steel Frame Base, & Thermal Heat Treated, Stress Relieved, & Normalized Steel Bridge; Dual Support, Dual Drive, Moving Gantry, Fixed Table Design with standard 2,500"; per minute machining speed, full 3-D capability, precision ball screw drives for Z & Y axis, case-hardened, precision ground, helical rack & pinion drives for X axis with forced-air continuous rack cleansing system & anti-contamination shielding, precision linear profile guide ways, centralized manual lubrication system, 11-inches of Z stroke - 14"; under bridge clearance & 11"; Z axis stroke.. -- Spindles:Total of (8), (4) per gantry, 18kW, 24HP "QTC" – 24,000 RPM Liquid cooled Long Nose Spindle w/ HSK-63F Spindle Taper, fully programmable & reversible, variable speed, liquid-cooled, quick-change spindle, capable of routing, drilling and ridged tapping, programmable feed rates w/override capability supported with a 12 hideaway tool changer on each gantry total of 24, Automatic Oil Mist Lubricator for each spindle. -- Spindle adjustments:Servo Adjustment of Spindle Center Distance. -- Controls:(2) FANUC 31i-B5 Machine Controller With Integrated PC Interface one for each gantry Fanuc 31i-B5 is Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High Res touch screen. Includes: Network capability, adds Larger FANUC Digital Drives & Servos. Includes Full remote diagnostic troubleshooting capabilities. -- Complete with:Assorted tool holders, centralized grease lubrication on Multi-Head, 63kVA Isolation Transformer, FANUC MPG Handheld Remote Jog Pendant, and manuals. -- Machine floor space required 64' by 14' 5"

C.R. ONSRUD 122RH18CDA Roller Hold Down Series with Roller Hold-Down, Boring, ATC, "C" axis, Loading & Off Loading: 5 x10 - Work Envelope. Manufactured in the USA. Designed and engineered utilizing Finite Element Analysis. Fabricated base consisting of heavy steel construction, cast iron bridge and fabricated vertical supports. All structural components are stress relieved utilizing thermal heat treatment. -- Specifications:Fixed bridge design with single moving table allows for up to – 4,000 IPM programmable feed rates. and 1G of acceleration. High precision ball-screw drive for all axis movements. -- Aluminum Universal Vacuum Table System - Includes: 4"; intake manifold, high-capacity vacuum plumbing, high-flow 45mm wide waffle patterns, with Onsrud’s Unique High Flow Vacuum Inlets, to offer maximum vacuum airflow & absolutely minimal airflow restriction for excellent part holding. -- High Flow Vacuum Zone - Pneumatic Ball Valve, actuated via Push Button or PLC Controlled -- 10' x 5' worktable with, 11-inches of Z stroke - 14"; under bridge clearance & 11"; Z axis stroke. -- Table includes pressure sensitive safety stop “edge switch"; on front and rear. In addition, a 360-degree emergency stop cable surrounds the machine. Industrial machine control system with full 3D capability (multi-axis interpolation). -- Operator Interface:FANUC 0i Machine Controller System - Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High-Res touch screen. Fanuc 0i is not a PC with a control card but is a dedicated Industrial PLC designed to control CNC motion, for maximum reliability and performance. -- Full remote diagnostic troubleshooting capabilities. M-code controlled vacuum zones. Provided with 4-port network hub. Network capability, FANUC Digital Drives & Servos. Air-Conditioned Electronics Cabinet. -- Machining:18 HP Spindle - 4-Pole, 13.5kW, 18HP – 24,000 RPM fully programmable & reversible, variable speed, HSK 63F tool interface, quick-change spindle, with air blast, capable of routing & drilling, programmable feed rates w/override capability. -- (1) 12 Tool - Dynamic Automatic Rotary Tool Changer - Fully Servo controlled instead of Stepper controlled or Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools. -- C-Axis Ability for Use with Aggregates - Adds a continuous rotation, rotational C-axis to Aggregate Tool Changer & Capability. Includes Aggregate Anti-Rotation Spindle Adapter Ring Option. -- Boring:9 Spindle Drilling Block Package - (Multi-Spindle Line Drills) Includes 9 independent or simultaneous firing. Vertical spindles arranged to drill up to 5 holes at a time in the X axis or 5 holes at a time in Y axis. -- Features:Roller Hold Down Option - 2 Rollers on each side of the cutting spindles, automatically extend & retract as rollers roll off cutting table, for holding down warped sheet stock such as low-grade plywood. Each roller’s pressure can be r

C.R. ONSRUD "MATE" 97M12 Series Moving Gantry 4 X 8 CNC Router with ATC: -- Specifications:• 97" x 49" Axes travel in a front-to-back configuration• Onsrud Universal High Flow Vacuum Table System for flow-through spoil boards and dedicated fixtures• (1) vacuum zone with (3) pop-up positioning pins.• (1) Router Head (HSD Mechatronics ES 929 4-Pole Spindle) 12 HP, 24,000 RPM• Fully Programmable, Variable Speed, Reversible, Capable of Routing & Drilling• Spindle adaptor HSK 63 Tooling (4 Tool Holders Included)• (10) Position Fixed Rack Automatic Tool Changer• Approximate Travel: X-Axis 97", Y-Axis 49"• Z-Axis 10" under bridge clearance and 9" Z-stroke.• Machining Speed 1,400 IPM• X & Y Rapid Traverse 2,500 IPM• Integrated Dust Transition System & Dust Extraction Hood• B & R Pendant CNC Controller• Airtech Vacuum Pump 8.6KW (11.5HP), 3,460 RPM

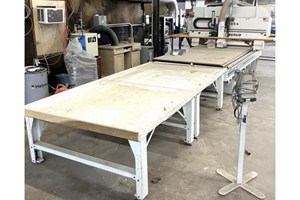

CR ONSRUD M-Series 121M12DA - 5'x10' CNC Router with ATC: -- Specifications:• Industrial-Grade CNC designed for precision/accurate routing of wood, plastics, aluminum, and composite components• Table Dimensions: 121 in × 61 in (5'×10').• X-Axis Travel: 145".• Y-Axis Travel: 78".• Z-Axis Travel: 9"(with an 8.9 in throat clearance).• Spindle Power: 12 HP (9kW) liquid-cooled spindle.• Spindle Speed: Up to 24,000 RPM• Using HSK-63F tool tapers.• Maximum Cutting Speed: 1,400 IPM (Inches Per Minute).• Rapid Traverse Rate: 2,500 IPM.• Tool Changer: 10-position automatic rotary carousel.• Vacuum System: High-flow universal grid table mapped to multiple independent vacuum zones.• (2) Becker VTTLF2.250 Vacuum Pumps, 10 HP each pump. • Fanuc "iPendant" Controller w/Stand • Frame Construction: Heat-treated, FEA-engineered all-steel bridge and base.• Actual Model is CR ONSRUD M-Series 121M12DA

CALPE TH5-1600 Heavy-Duty High-Production, Fully Automatic CNC Lathe: General Description: -- Multi-Spindle cutting simultaneously, (5) spindles using V-type gouge knives. -- 63" (1,600 mm) Max. distance between centers; 5-1/2" (140 mm) max. swing diameter between spindles. -- CNC Controlled with 2.95" (75 mm) travel for depth of cut. Motors/Speeds: -- Servo controlled CNC drives: -- CNC controlled electronic variable speed head drives the movement of the (5) gouge tools. -- CNC controlled feed speed carriage, variable up to 50 FPM (15 MPM). -- (1) Head stock variable speed drive for the (5) spindles, up to 6,000 RPM, approx 10 HP. -- Fast return travel of up to 590 IPM (15,000 mm/Min). 2 HP approx hydraulic drive -- Loading device & tail stock powered by hydraulic pump with 2 HP - 1,750 RPM motor; No. 5 Morse taper on main spindle shaft. Features: -- Automatic loading & unloading device; carriage mounted with linear guides providing high precision movement. -- Full CNC controller with on-screen CAD programming for all products.Matching CALPE L6-1600, record number LC-010996 spindle sander is available at additional cost at same facility.

CALPE L6-1600 Spindle Sander with Hopper Feed. -- (6) Spindles, semi-automatic sanding machine; distance between centers 63", 6-3/16" max sanding diameter, capable of sanding 1800 spindles per hour. -- 4 HP - 1,800 RPM head motor, (5) sandpaper holders, each for different grits, 4000-3200-2200-850 RPM head spindle speeds. Copier unit that follows all contours. -- Oscillating sanding units & stationary pick up of part. -- NOTE: This sander was running with lathe on our record number LC-010811 and owner prefers to sell at the same time.

CAM-WOOD SFJ-300A End Matcher, 12" Performs tongue and groove, tenoning, mortising, and shaping at both ends of the boards; -- Includes 10'-6" Powered Infeed and 7' Non-Powered Outfeed Conveyors. -- Air-operated hold-downs keep material firmly in place during the machining process. -- Cutter heads move in and out while cutting a tongue on the trailing end of one part and a groove on the leading end of the following part.FEATURES: -- PLC controls combined with a touch-sensing screen for maximum convenience of operation. -- Each cutter head is driven by a separate motor driving the spindle at 7,500 RPM spindle speed. -- Accepts unlimited wood lengths via an automated conveyor for infeed and outfeed processing. -- Cutterheads feed thru the wood is controlled by a frequency inverter that permits speed changes to suit various cutting conditions. -- Pressure plates are actuated by air cylinders. -- Hard chrome-plated table features maximum wear resistance. -- Table rollers increase feed smoothness. -- Powered in feed roller conveyor is driven by a 1 HP motor. -- 3,400 mm in feed roller conveyor and 2,200 mm out feed conveyor table are standard equipment. -- Fully enclosed chip guards. -- Air-operated clamp holds stock firmly in place. After the workpiece is clamped, the cutter head moves in and performs the shaping operation. -- The spindle is precision constructed to cut accurately -- The spindle height adjustment is displayed on a dial gauge. -- CAM-WOOD’S 2-spindle design accommodates cutterhead dia. up to 6"; -- When end matching, one spindle cuts the tongue, and the second cutterhead machines the groove. SPECIFICATIONS: -- 1-1/2" To 12" width cap. -- 10-1/2"; min. length cap. -- Thickness 3/8" to 1 3/8" -- Unlimited length, no restriction. -- Material feed speeds up to 297 FPM; cutterhead travel speed of 79 FPM -- Cutting cycle time 1.5 second.and up to 20 cycle per minute -- (2) 5-1/2 HP Spindle motors and a 2 HP feed drive -- 1/2 HP motor for in/out cutterhead travel. -- 40 mm Dia. spindle -- Requires 1300 CFM dust collection.

CAM-WOOD 16' Pusher Type Cutoff Saw with Crayon Marking (Optional) connected to a CAM-WOOD 12" wide End Matcher; System width capacity is 12" with a maximum inbound board length of 16' (as priced here). 8' and 12' Saws are also available. Call Jeff for price deduction.General Data: -- Cut-Off Saw is arranged to remove defects from Clear. Will chop for random length clear material OR optimize clear wood according to your cutlist, delivering either to the End Matcher. -- The line requires (1) man to mark and feed the Cutoff Saw and (1) man to offbear and stack finished work coming from the End Matcher. Price includes the following equipment and specifications: Defect Saw Features: -- 18" CAM-WOOD Model CS-18AAT-16' Automatic Cut Off Saw equipped with Automatic Pusher for increased automation and efficiency -- 16' Infeed table -- Works as an automatic pusher for defect removal and fixed length cutting when crayon marking (optional) -- PLC controlled automatic pusher device is driven by servo motor at feed speeds up to 200 FPMAutomatic Pusher Operation: -- Operator places crayon marks at the leading and trailing ends of a defect or waste zone (Optional) -- Pusher moves the board to the first crayon marked defect, automatically completes the cutting cycle, and continues to position and chop the board at each crayon mark, thereby removing all waste zones. When the board is finished, the pusher returns to its starting position at top speed and starts on the next board -- Super Pusher travels up to 200 FPM -- Sealed, long-life ball bearings -- Precision ground cast iron table with heavy metal stand -- Easy to operate in all operations -- Saw blade comes up from beneath the table and returns after cutting for safe operation -- Totally enclosed blade guard prevents danger during cutting cycle -- Includes magnetic starters with overload protectionCutting & Other Specifications: -- (45) Strokes/Min -- 18"; Saw Blade Diameter with 1"; Saw Arbor -- 10 HP Arbor Motor -- 3,200 RPM Blade Speed -- 90 PSI Compressed Air requirement with 1" Inlet -- (1) 4"; Dust Hood -- Machine Size (W x L), 30" X 28-1/2'Automatic Transfer between Defect Saw and End MatcherCAM-WOOD SFJ -300 End Matcher with the following Specifications: -- Machines tongue and groove at ends of random or fixed length boards as provided by the Defect Saw -- Includes powered conveyor for infeed and steel landing table at the outfeed -- Air operated hold downs keep material firmly in place during the machining process -- Cutter heads move in and out while cutting a tongue on the trailing end of one part and a groove on the leading end of the following pieceFeatures: -- PLC controls combined with touch-screen for maximum convenience of operation -- Each cutter head is powered by a separate motor driving the spindles at 7,500 RPM -- Accepts unlimited wood lengths via an automated conveyor for infeed and outfeed -- Cutterhead travel thru the wood is controlled by a VFD which permits automatic speed ch

CAM-WOOD SM-156AX Feed Through Moulder;6-Head (B-R-L-T-T-B), working cap. 6" x 4".Specifications: -- Head sequence: Bottom 7.5 HP, right 5.5 HP, left 5.5 HP, top 10 top, top 7.5 HP and bottom 7.5 HP motor. -- Spindle diameter 40 mm with cutterhead speed of 6,000 RPM; spindles equipped with mechanical readouts for axial and radial adjustments. -- 4 HP Feed Motor variable speed 16- 65 FPM; carden drive system. -- 1.2 M (4'0") Infeed table with lateral side pressure roller mounted at table infeed. Manual table lubrication pump. -- Includes: Short stock attachment, set up tools and manuals. -- Dust collection Min. 3,500 CFM -- Air requirement 90 psi. -- 150 AMPs. at 220 V. -- Machine dimensions , length & width 137"; long, x 54"; Width x 68"; High Note: Brand New with Warranty!

CAM-WOOD TYPE F1, MODEL FAH 8" X 16’ AUTOMATIC HORIZONTAL FINGER JOINT SYSTEM - SINGLE CHAIN TYPE Technical Specifications: -- Working thickness: 17 mm to 60 mm (0.66" to 2-3/8") -- Working width: 25 mm to 205 mm ( 1" to 8") -- Maximum finish length: 62 Meters ( 16') -- Glue type: PVAC -- Timber moisture: 8% to 12% -- Infeed quality must be S4S with tolerance +/- 02 mm, wood need 90° right angle and straight MECHANICAL SPECIFICATIONS FOR THE FEED SYSTEM: -- Operating speed: 120 to 180 lugs/Min -- Intermittent feed motor: 2 HP + 1:25 -- Feed chain motor: 30 HP (20 kW) Servo Drive (C2) MECHANICAL SPECIFICATIONS: RIGHT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP (C3) MECHANICAL SPECIFICATIONS: LEFT-SIDE SHAPER: -- Cutterhead Motor: 25 HP -- Spindle size: 2-3/4"; (70 mm) -- Maximum cutter head body diameter: 10"; -- Cutterhead speed: 5,500 RPM at 60 Hz -- Trim Saw Motor: 15 HP -- Trim Saw blade size: 12"; (305 mm) x 80 Tooth x 5 mm kerf -- Cut-off saw Speed: 4,300 RPM -- Scoring saw motor: 3 HP -- Scoring saw blade: 7"; (180 mm) x 50 Tooth x 5 mm -- Scoring saw spindle speed: 4,200 RPM -- Holddown rise and lower motor: 1/2 HP -- Glue Application by GLUE COMB -- Standard glue height: 6"; High, 3.8 mm pitch 3.8 mm. Finger lengths from 10 to 12 mm (Other lengths available) (K) MECHANICAL SPECIFICATIONS: SHAPER OUT-FEED: -- Working size: Length 150 mm to 900 mm ( 6" to 35-7/16"); Width 25 to 205 mm (1" to 8") -- Speed: 70 m/Min ( 230 FPM) -- Infeed inverter : (1) 3 HP -- Vacuum device blower with 3"; Vacuum port: 5 HP (G) MECHANICAL SPECIFICATIONS: PRE-JOINT ASSEMBLY: -- Working size: Thickness 17 mm to 60 mm (5/8" to 2,3/8"); Width 25 mm to 205 mm (1" to 8") --Feed chain drive: (2) 3 HP motors --In-feed Inverter: (1) 7-1/2 HP --Chain type: Flat top double chain --Feeding speeds from 10 to 90 m/Min (32 to 292 FPM) (H) MECHANICAL SPECIFICATIONS: 20’ (6.2 M) ASSEMBLY PRESS: --Working dimension: 3/4"; to 8"; wide x 0.60"; to 2-3/8"; high x up to 20’ long --Upper & lower roll power: (2) 2 HP motors --In-feed Inverter: 7-1/2 HP --In-feed speed: 10 m to 70 m/Min (32 to 227 FPM) --PROGRAMMABLE Cut-off saw power: 5 HP --Cut-off Blade dimensions: 14"; Dia. x 120 Tooth x 1"; bore --Cut-off saw speed: 2,850 RPM --Hydraulic power: 5 HP (With high-speed oil tank) --Cycle Speed: 1 to 8 Cycle/MinPRODUCTION CAPACITY - PARAMETERS: -- Based on a 480-minute shift -- Finger length to customer’s specifications -- Average infeed length at the shaper section is 500 mm (20";) --Average block cross-section is 2"; x 4"; -- Chain speed at the

CAM-WOOD Continuous in-line Long Board Vertical Finger Joint System, Model "UCT-305"Up to 12"; Wide x 4-1/4" Thick x Unlimited Assembled Length System Specifications: -- Incoming board lengths from 39"; to 236" (1,000 mm - 6,0000 mm). -- Board widths from 2"; to 12"; (50 mm - 305 mm). -- Board thickness from 1" to 4.3"; (25 mm - 110 mm). -- Board out-feed length 40’. (could be increased with an outfeed conveyor) -- Glue type to be used: PVAC. (Glue pump and applicator included) -- Board species: SOFTWOOD and HARDWOOD. -- Board moisture content: 8% to 12%. -- Infeed board qualities: Lumber runs best on Finger Jointers when surfaced on (4) sides (S4S) (Tolerance +/- .2 mm (.008"). System prefers straight boards with 90-degree corners. UCT-305 Mechanical Specifications: -- Top infeed feed rolls powered with (2) 2HP motors. -- Bottom infeed feed rolls powered with (2) 2 HP motors. -- In-feed Inverter with (2) 7.5 HP motors. -- Auxiliary conveyor wheel with 2.6 HP servo motor. -- Top Shaper Spindle powered with a 30 HP motor. -- Bottom Shaper Spindle powered with a 30 HP motor. -- Maximum Cutterhead length, 12“(305 mm). -- Maximum Cutterhead diameter, 6.3“(160 mm). -- Typical cutter pitch, 4.0 mm. Length, 10 mm - 12 mm (Other sizes available). -- Shaper spindle moving power by 2.6 HP Servo Motor. -- In-feed speed from 32 to 295 FPM (10 ~90 m/Min). -- Outfeed cut-off saw motor, 10 HP. -- Cut-off sawblade, 24“ dia x 120 teeth (included). -- Cut-off sawblade speed, 2,850 RPM. -- Hydraulic pump power, 30 HP. -- Outfeed conveyor, (2) 2 HP drives. -- Top outfeed feed rolls powered with (2) 2 HP motors. -- Lower outfeed feed rolls powered with (2) 2HP motors. -- Out-feed Inverter with (2) 7.5 HP motors. -- Glue injection Glue Applicator for Standard PVAC glue. -- Hydraulic oil tank with 150-gal capacity (oil not included)Outfeed options: -- Outfeed roller conveyor 20'' X 8' long Additional: $ 4,890 per sectionNot included with the machine: -- Cutter heads for the finger jointer (we can provide a quote) -- Gluing system with pump and nozzle Optional Cross Infeed Conveyor System:Optional Automatic 20 ft Cross InfeedPower Conveyor System Working size L = 1000 MM ~ 6000 MM, W= 50 ~ 305 MM, T=25 ~ 110 MM (Length 39" - 236" X Width 2" -12", Thickness: 1" to 43.3")Infeed roller Conveyor 3 HP1Cross feeding system 3 HP1Feeding speed of 15 M/min (48'/Min.)Storage area width 2500 mmAdditional cost: $68,900NOTE: Training, installation & tooling not included TO BE PROVIDED LOCALLY -- Electric power supply to Motor Control Center -- Constant voltage (voltage deviations max.: 5%) -- Temperature range for computer control should not exceed 95°F. -- 65% Maximum relative air humidity for computer control system --Dust exhaust system: (V=30M/S at a low pressure of 12M BAR) --Compressed air connection to machinery: 7~8 KG/cm² – 8 BAR --Electrical cabling, dust collecting ductwork. --Hydraulic oil --Skilled operating and maintenance personn
