Woodworking Equipment For Sale

Barr Mullin Wondersaw Optimizer with Computerized Laser Controls Tichniess: Up to 3" Width: 31" Min cut: 4" Feed height: 34-1/2" Floor Space: Apprx 21' x 15' 480 volt

The Compu-rip scans the board for width to determine the optimal cutting solution which is projected onto the board via overhead lazers. Specification: Material Thickness up to 3” Material Width up to 31” Maximum output no limit Minimum output 4” Feed Height 34.5” Floor Soace approx.21’ x 15’ Power supply 480 volt 3-phase

Barr-Mullin Opti Rip Wondersaw, optimizer w/computerized laser controls, Compu-rip scans the boards for width to determine the optimal cutting solution, floor space: 21'x5' (315 sq. ft.) Good condition. $14,950 or BEST OFFER

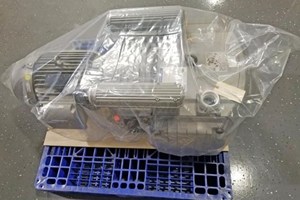

BECKER KVT 3.100 3.6 Kw (5 HP) Vacuum pump:Oil-less (Dry) Rotary Vane Vacuum Pump System, rated at 69 CFM and 100 cm/Hr with max. 27"Hg; Heavy Duty construction, compact design, small foot print. -- 100% Oil-less vacuum pump is virtually maintenance-free with built-in carbon vanes & built-in suction filters, vacuum regulating valve, secondary suction for additional cooling, blow off valve/silencer. -- Complete WithInlet vacuum air filter system.

"BECKER" VTLF 2.250 Vacuum PumpSpecifications: -- (1) 6.4 kW (9 HP) Oil-less (Dry) Rotary Vane Vacuum Pump System; -- Pump has 169 CFM total 338 CFM max. 25"Hg; Heavy Duty construction, compact design, small footprint. -- 100% Oil-less vacuum pump is virtually maintenance-free with built-in carbon vanes & built-in suction filters, vacuum regulating valve, secondary suction for additional cooling, blowoff valve/silencer; -- 2-1/2" BSP x 2" NPT nipple coupled to a TFC; 1,150 RPM motor.

BECKER VTLF 2.250 VACUUM PUMP (OIL-FREE VANE): -- Specifications: QTY (2) 7.5 kW (10 HP) Oil-less (Dry) Rotary Vane Vacuum Pump System; -- Pump has 169 CFM total 338 CFM max. 25"Hg; Heavy Duty construction, compact design, small footprint. -- 100% Oil-less vacuum pump is virtually maintenance-free with built-in carbon vanes & built-in suction filters, vacuum regulating valve, secondary suction for additional cooling, blow off valve/silencer; -- 2-1/2" BSP x 2" NPT nipple coupled to a TFC; 1,150 RPM motor. -- Complete Becker Pump Stack, VTLF 2.250, 10HP x 2.

Becker VTLF 250 Vacuum Pump: 9.3 kW (12 HP) Oil-less (Dry) Rotary Vane Vacuum Pump System, 176 CFM, max. 25"Hg; Heavy Duty construction, compact design, small foot print. -- 100% Oil-less vacuum pump is virtually maintenance-free with built-in carbon vanes & built-in suction filters, vacuum regulating valve, secondary suction for additional cooling, blow off valve/silencer; 2-1/2" BSP x 2" NPT nipple coupled to a TEFC; 190-255/330/440V, 1,160 RPM motorNote (2) unit available and the price is for each

84" maximum opening; 9" minimum opening on 90° trim; (2) 3 HP trim saw motors; 16" dia. saw blade capacity; 1" diameter saw arbor; (2) 3 HP boring units (boring heads not included); saws and boring units tilt 10° up, 23° down and swivel 90° for simple or complex miter work; .5 HP motorized open and close; (2) pneumatic holddown clamps; saw and boring units upgraded to hydraulic control; 5 HP hydraulic pump; retrofitted with electric brake system

BENCHMARK 205-HP3 Hot Melt Adhesive ApplicatorHot Melt Adhesive Applicator with: -- Bodine adjustable speed motor. -- Bead dispensing applicator. -- Also includes an extra Bodine adjustable speed motor regulator, for fine tuned glue application.

Bertheson Press Platform size 51 Wide X 102 Long with 2 16 ft shuttle driven aluminum runner platforms. Pressure 2500 psi and we ran a temperature of 350 degrees for Tego and 165 degrees for plywood. The Press can laminate Tego Film glue or pva c glue. This press is a double shuttle and can laminate up to 14 ft by double pressing on shuttle. We can get the press operational if you are interested. We only have to hook up the power. Very good condition!

Manufacturer Specs premill hot glue end trim top/bottom trim corner rounding scraping buffing Computer interface

Pressure Beam Type: Rollers Pre-Milling Station: 2 Motors Glue Station Pressure Rollers: 4 End Trimming Station: Straight & Bevel (2 motors) Rough Milling Station: 2 Motor Fine Milling Station: 2 Motor Corner Rounding Station: 2 Motor Flat Scraping Station: Top & Bottom Profile Scraping Station: Top & Bottom Buffing Station: Top & Bottom Heat: Top & Bottom Panel Height: 10-50 mm Edge-banding Material Height: 13-55 mm Min. Thickness of Edge-Banding Strip in Rolls: 0.4-3 mm Max. Edge Thickness w/Trimming Unit: 8 mm Max. Edge Thickness w/o Trimming: 3 mm Max. Section of Solid Wood: 8 x 55 mm Panel Protrusion from Track: 25 mm Min. Panel Length: 150 mm Min. Panel Width (150mm Length): 85 mm Min. Panel Width (250mm Length): 55 mm Chain Feed Speed: 12 m/min Dimensions: 18' L x 4' W x 5' H Weight: 4,000 lbs Electrical: 230 V 3 Phase

Pressure Beam Type: Rollers Pre-Milling Station: 2 Motors Glue Station Pressure Rollers: 4 End Trimming Station: Straight & Bevel (2 motors) Rough Milling Station: 2 Motor Fine Milling Station: 2 Motor Corner Rounding Station: 2 Motor Flat Scraping Station: Top & Bottom Profile Scraping Station: Top & Bottom Buffing Station: Top & Bottom Heat: Top & Bottom Panel Height: 10-50 mm Edge-banding Material Height: 13-55 mm Min. Thickness of Edge-Banding Strip in Rolls: 0.4-3 mm Max. Edge Thickness w/Trimming Unit: 8 mm Max. Edge Thickness w/o Trimming: 3 mm Max. Section of Solid Wood: 8 x 55 mm Panel Protrusion from Track: 25 mm Min. Panel Length: 150 mm Min. Panel Width (150mm Length): 85 mm Min. Panel Width (250mm Length): 55 mm Chain Feed Speed: 12 m/min Dimensions: 18' L x 4' W x 5' H Weight: 4,000 lbs Electrical: 230 V 3 Phase

Min. Panel Thickness: 0.39? Max Panel Thickness: 2.36? Height of Edge-Band Material: 0.55-2.51? Min. Banding Thickness: 0.01? Max Banding Thickness: 0.39? Min. Panel Length: 5.51? Min. Panel Width: 1.96? 2 Feed Speeds: 39ft/min & 59ft/min Electrical: 230V, 60Hz, 3Phase Equipped With Siemens TD200

BIESSE FSE SEMI-AUTOMATIC DOWEL INSERTER W/BORING 21-Spindle head (spindles on 32 mm centers) fixed horizontally for end boring, -- Equipped with:(8) Glue injectors & dowel inserters,(4) overhead "HD" pneumatic hold-down clamps. -- After the drilling cycle is complete, the head assembly traverses down to the glue & dowel injector line for the glue & dowel injection; quick cycle time. -- PLC function selector control for boring only, inserting only, or boring & inserting. -- Capacity: Handles 8 mm - 10 mm dia., digital indicator for adjustable dowel length from 25 mm - 50 mm, max. boring depth 70 mm. -- Features: Height adjustment w/digital readout for panel thickness, hydraulic brakes for adjustment of boring speed; 2.3 HP - 4,000 RPM motor.Complete with: -- (2) Side fences, front support table w/stop, glue reservoir tank with pressure control & rinsing tank for glue nozzles. -- 4way dowel feeding vibrator, and foot pedal for starting cycle.Note: Only (4) dowel line on the machine, you just need to add more dowel tube

BIESSE - ELIX B: CNC Bore, Glue, and Dowel InserterBIESSE Drill & Dowel Inserter features: Single-spindle for drilling; dowel insertion unit; glue injecting unit installed on a carriage moving in the X-axis.Position for drilling dowel insertion provided through simple programs through the NC control or third party software. Operator Control interface is: Intuitive, user-friendly, and very easy to use. -- Specifications Max. parts length: 1,300 mm (51";); min. parts length:120 mm (4.7";); parts thickness: 10 - 40 mm (0.4"; to 1-1/2";). -- Positioning Speed "X" & "Y" Axis positioning speed: 40 MPM (131 FPM); "Z" axis has manual adjustment with: Max stroke of 40 mm (1.57").The working units travel: Precision machine ground ball screws; powered by brushless AC Servo motors. -- Worktable(4) Working Zones with: Center fence position in up mode; (2) large work zones in down position; (4) holddown cylinders. -- Boring UnitDrilling Uunit. High-speed unit with: 6,000 RPM spindle; max. drilling depth of 30 mm (1-1/4"); max. drill bit dia.: 12 mm (0.47"); manual adjustment of depth with: Digital indicator. -- Dowel Insertion UnitDowel prepositioning ensures: high repeatability of inserting dowels for each hole; distance between the dowel insertion unit and the drilling spindle: 32 mm (1.3") for simultaneous drilling; dowel insertion when holes are spaced at 32 mm; standard dowel dimensions: 8 x 30 mm; Max. dowel projection: 14 mm (0.551"). Glue Tank: Holds up to 8 liters (3.1 gallons) of glue; max. glue density: 900 CPS. - Glue inserting unit: Flow sensor and electronic adjustment of the amount of glue. -- Operator InterfaceIndustrial Numerical Control with: Extremely simple Program Editor; macro & parametric programming. Icon driven. -- Includes: Original Factory Machine Documentation. -- Actual Model: BIESSE ELIX B

Biesse Elix B Boring Machine

Biesse Elix K3

BIESSE SKILL G FT 1536 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 12' "Matrix" Grid phenolic surface for "Nested Base Manufacturing". -- Working Capacity:"X" Axis 148.2" (3,765 mm); "Y" axis 61.4" (1,560 mm); "Z" axis stroke is 12.7" (324 mm); max. material thickness 4.7" (119 mm). -- Positioning Speed:"X" & "Y" Axis 197 FPM (60 MPM); "Z" axis 65.6 FPM (20 MPM)."X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws.All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.All motion components are maintained by an automatic lubrication system. -- Work Area:Flat table design with: "Matrix" grid phenolic surface for "Nested Base Manufacturing".(5) External pneumatic pop-up stops for piece positioning at (4) corners of workstations; automatic NC controlled 8-zone vacuum table.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2-1/2 HP (1.7 kW) Motor; variable speed up to 6,000 RPM; Boring unit with: (10) Independent vertical spindles; (7) in "X" axis & (3) in "Y" axis. -- Machining:(1) 16 HP (12 kW) Air-Cooled "HSD" Electro-spindle with: HSK F63 Adaptor; RH & LH rotation; variable speed from 1,000 - 24,000 RPM.(1) 12-Position ride along tool changer for "on the fly" ATC. NC Controlled tool presetting for the measurement of the tool length -- Operator & Machine Control:PC Front-End with: BIESSE "BH 660" + "BiesseWORKS + "WINDOWS "WRT" (Windows Real Time) Operating System'19" LCD Flat screen monitor; Server; full keyboard & mouse all mounted on a mobile cart.Intel(R) Core i CPU; 8 GB RAM memory; 500 GB (SSHD) hard disk; dedicated graphic card; DVD reader; USB ports; Ethernet card for network connection capabilities. -- Complete with:(1) 300 m³/Hr Vacuum Pump; air-conditioned control cabinet; automatic program update according to the tool length.Automatic Lubrication system for linear guides, pads, and recirculating ball screw; universal autotransformer for voltages between 200 - 600 V, 50 / 60 Hz; teleservice capabilities; perimeter safety mats; manuals & documents on CD. -- Options Include:Prearrangement for a "C" axis at a later date. -- Actual Model is BIESSE SKILL 1536 G FT.

--This machine is in an Auction on exfactoryauctions.com--NO RESERVE-- (2 Available) BIESSE SKIPPER 100 2-Head CNC Machining Center, with Infeed & Outfeed Tables – Seller states that machine was run (2) shifts from 2005 - 2021, then only a few hours per day since! Specifications: Flexible "Top & Bottom" Machining Center that uses an innovative panel handling system. Working Capacity: "X" Axis 3,000 mm (118.11"), "Y" Axis 1,000 mm (39.37"), Max. part thickness 60 mm (2.36"). Min. workable part size: "X" Axis 90 mm (3.54"), "Y" Axis 70 mm (2.76"), & "Z" Axis 8 mm (0.31"). Work Table: Left-hand infeed & Right-hand outfeed, Each with 20-1/2” x 66” x 35-1/2” H infeed & outfeed areas with Fixed caster-type conveyor rails. Positioning Speed: "X" Axis 120 MPM (393 FPM), "Y" Axis 90 MPM (295 FPM), "Z" Axis 30 MPM (98 FPM). Boring Units: (1) Top & (1) Bottom boring blocks, Each with: 3 kW (4 HP) Motor, Boring spindle speed 4,000 RPM, (29) Vertical spindles with (17) "X" Axis & (12) "Y" Axis, (10) Horizontal spindles with (4 + 4) "X" Axis & (1 + 1) "Y" Axis, & (1) "X" Axis Grooving saw with 3 kW (4 HP) Motor, Blade speed 5,000 RPM, & Blade diameter 150 mm (5.91"). Machining: (1) Top & (1) Bottom 3.5 kW (4-3/4 HP) Electrospindles, Each with: Variable spindle speeds 7,000 - 18,000 RPM, Right-hand/Left-hand rotation, HSK D-50 Adapters for Manual push-button quick tool change, ERC-32 Toolholders & RC-32 Collets. Operator & Machine Control: Mobile Control Console, with PC-Based Control, 18" LCD Monitor, BIESSE "WORKS" + "WINDOWS" Operating system. Pedestal & Pendant controls. Equipped with: Universal transformer, 200 - 600 V, 50/60 Cy, 3-Ph., Automatic lubrication system for guides & ways, Sound hood, 79" H Safety fence with Lock-out door, & TAPESWITCH "CONTROLMAT CKP" 24" x 72" Heavy-duty ribbed pressure-sensitive safety mat. Complete with: 7’ x 9’ x 35-1/2” H Infeed Table, with Rails & Pusher. 6-1/2’ x 8’ x 35-1/2” H Outfeed Table, with Transfer Belts. Handheld Bar Code Reader. Dust Manifold. Dimensions including Safety Fence: 307" x 184" x 98" H.
