Gang Rip Saws For Sale

RAIMANN - KM-310, ...Gang (Multi-Blade) Rip Saw12-1/4" Max. width cap., 13-1/2" chain width, 50 HP - 4,200 RPM V-belt driven arbor.Features: -- "Quickfix Hydro-Quick" Arbor: Multiple Saw blades are mounted on the arbor, they slide up-and-down the arbor into position and lock into place by tightening the end of the arbor; no tools & no spacers required. -- Frequency controlled feed speed of 13 - 110 FPM, 2.2 HP feed drive, chain spikes every 3rd chain link, automatic chain lubrication.Specifications: -- 300 mm (11.8") Max. saw blade dia. with 80 mm (3.15") bore, 65 mm (2.55") dia. arbor. -- Provides 3" max. depth of cut with pressure shoe, 3-1/2" depth of cut without. -- Manual thickness adjustment of upper holddown rolls with indicator scale. -- 6" Throat depth to the right of blade; 7/8" min. strip width, 17-3/4" min. stock length.Equipped with: -- (4) Sets of top & bottom antikickback fingers. -- Extended infeed with additional bed roll, and adjustable infeed fence. -- Motor load meters and automatic STAR DELTA starting. -- Automatic over thickness shutoff on infeed and 7-1/4" dia. dust hood. -- (4) Laser lights.Also included: -- (6) Used blades.

RAIMANN - KM-310, ...Gang (Multi-Blade) Rip Saw12-1/4" Max. width cap., 13-1/2" chain width, 50 HP - 4,200 RPM V-belt driven arbor.Features: -- "Quickfix Hydro-Quick" Arbor: Multiple Saw blades are mounted on the arbor, they slide up-and-down the arbor into position and lock into place by tightening the end of the arbor; no tools & no spacers required. -- Frequency controlled feed speed of 13 - 110 FPM, 2.2 HP feed drive, chain spikes every 3rd chain link, automatic chain lubrication.Specifications: -- 300 mm (11.8") Max. saw blade dia. with 80 mm (3.15") bore, 65 mm (2.55") dia. arbor. -- Provides 3" max. depth of cut with pressure shoe, 3-1/2" depth of cut without. -- Manual thickness adjustment of upper holddown rolls with indicator scale. -- 6" Throat depth to the right of blade; 7/8" min. strip width, 17-3/4" min. stock length.Equipped with: -- (4) Sets of top & bottom antikickback fingers. -- Extended infeed with additional bed roll, and adjustable infeed fence. -- Motor load meters and automatic STAR DELTA starting. -- Automatic over thickness shutoff on infeed and 7-1/4" dia. dust hood.

RAIMANN KM 310 M PROFIRIP Multi-Blade Rip Saw System ( 1 Moving Blade )PROFIRIP Gang Rip Saw with (1) MOVEABLE BLADE -- 12-1/4" Max. width cap. with 25" total feed width, 13-1/2" chain width. 3/4" min. strip width, 19-1/2" min. stock length -- Arbor motor with 50 HP - 4,200 RPM V-belt drive arbor with (1) movable and fixed blades. -- Operation: (2) Laser lights with the outside light moving with the shifting blade; up to (10) shifting blade positions are pre-set; rip width is selected by the operator from operator's control console.When the rip width is selected at the operator's panel, the computer shifts the blade and the outside laser light follows the blade; fixed saw blades are mounted on collars that slide up-and-down the arbor into position, then lock into place using hydraulic pressure. Equipped with & Features: --12" Dia. saw blade capacity, 65 mm (2-1/2" dia.) arbor, 3" max. depth of cut, 17-3/4" centers between last infeed and first outfeed upper holddown rolls (phenolic holddown shoe included). -- Feed works with: Variable feed speed from 13 - 115 FPM, feed drive 2.2 HP motor, feed chain with chain spikes every 3rd chain link, automatic chain lubrication. -- Includes (2) Sets of top & bottom anti-kickback fingers, 7-1/4" dust outlet and adjustable infeed fence.

RAIMANN KM 310 1M - Movable Blade Gang Rip Saw; 12-1/4" Max. width cap.; 13-1/2" chain width; with 25" width clearance,Specifications: -- 50 HP - 4,200 RPM V-belt drive arbor with (1) movable and (2) fixed blade; shifting blades positioned from operator controls. -- As the computer or operator moves blade, laser light follows; fixed saw blade with "Quick Fix" hydro-arbor is mounted on an individual collar that slides up-and-down the arbor into position, then locks into place by tightening end of arbor; no tools & no spacers required.Equipped with: -- Blade capacity 11" to 14.1" (280 -380 mm) Dia. saw blades, 65 mm (2-1/2" dia.) arbor, 4-1/4" max. depth of cut, 17-3/4" centers between upper holddown rollers (phenolic pressure holddown shoe plate included); 3/4" min. strip width, 19-1/2" min. stock length. -- Variable feed speed from 13 - 115 FPM, feed drive 2.2 HP motor, provision for chain spikes every 3rd chain link, automatic chain lubrication. -- (2) Sets of top & bottom anti-kickback fingers, extended infeed with additional bed roll, and adjustable infeed fence.Complete with: -- Automatic over-thickness shutoff on infeed. -- (4) Laser Lights. -- Automatic STAR-DELTA starting. -- "ProfiCut 1" PLC Controls. -- 8" Dia. dust hood. -- Includes with approx. (9) blades.Dimensions: 85" x 56" x 73" H. Weight: 3,750 Lbs.Note: Stated condition reflects that the chain is worn and per owner "?Chain should be replaced."

RAIMANN KM-US BV Gang Rip Saw with one (1) Moving BladeSpecifications: -- (1) Shifting blade with foot pedal control; -- Fixed blades mounted to individual collars that slide up-and-down the arbor into position, then lock into place by tightening the "Quick fix" nut on the arbor, no tools & no spacers required. -- 12" Dia. saw blades, 65 mm (2-1/2" dia.). -- Arbor, 3-1/2" max. depth of cut. -- 20" centers between upper holddown rollers (wood holddown shoe plate not included). -- 6" Throat depth to the right of the blade. -- 3/4" Min. strip width, 21" min. stock length.Equipped with & Features: -- Variable feed speed 16 - 110 FPM, -- Feed drive 1.2 HP motor; -- Chain spikes every 3rd chain link, -- Automatic chain lubrication, -- (2) Sets of top & bottom anti-kickback fingers, -- Extended infeed with additional bed roll, adjustable infeed fence. -- Complete with: Automatic over-thickness shutoff on infeed, -- Automatic starting, -- 8" Dia. dust hood. -- Includes (4) Lasers and Tooling as pictured.

RAIMANN (WEINIG) Variorip 310 M with Infeed and (2) Moving Blades SystemClean, very hard-to-find 2015 Weinig Raimann Variorip 310 M Optimizing Rip Saw with (2) moving blades and Infeed SystemSpecifications -- Working dims: Length 24″ to 184″; width to 12.2″ (310 mm) and thickness .59″ to 3.94″ (184″ is fence length) -- Cutting dims: Width min. 5/8″ (1st movable blade); min. 1-5/8″ to 10-1/4″ (2nd movable blade) and fixed pocket 1″ -- Production in auto mode 7 x 10′ boards per minute. -- Saw: 50 HP motor with arbor dimension of 2.6″; RPM of 4200. -- Quick fix arbor (hand turn nut) for position blades. -- Saw blade dia. 12″ to 14″ (300 - 350 mm). -- Blade positions by ball screw adjustment. -- Chain: Width 12-3/4″ steel chain with every 3rd link with spikes --. Automatic oiler for chain lubrication. -- The chain has auto shut-off when the oil level is low. Roto chain brush for continuous chain cleaning of debris. (4) set of antikickback fingers. -- Feed: Variable 26-157 FPM (8-48 m/min) with 3 HP motor.Equipped with and Features: -- Controller: Raimann TimberMAX, with 15″ color screen with storage for 100 cut lists, -- Production recording and yield. -- Also includes: (4) Lasers with mounts, spare parts, & manuals.Note: This was not a daily driver or a shift machine.Foot Print & Weight: Infeed is 3,306 Lbs and roughly 8' x 16'Saw is 4,603 Lbs and roughly 6' X 6'The saw slightly offsets the infeed. So the footprint together is a little larger.....probably closer to 9' x 23'

RAIMANN KR 310 2M Multiple Rip Saw System ( 2 Moving Blades )12-1/4" Max. width cap., 13-1/2" chain width, 50 HP - 4,200 RPM V-belt driven arbor.Equipped with:& Features -- Quick Fix arbor with: (2) Movable blade and (3) fixed blades; (5) Laser Lights. -- Enlarged movable saw housing with 25" pass through. Ball threaded adjustment of spindle. Saw blades mounted to individual collars. -- Chain with spikes every 3rd link, with automatic oiler with indicator light. -- Driven fluted lower roller with smooth upper roller for smooth feeding. Auto oiler fo guide lubrication. -- (4) Sets of anti-kickback fingers and 12" dia. dust hoods. Raimtech E5 with TimberMax Software optimizing software; makes it possible to get the most out of incoming lumber. -- The software optimizes rips for width or grade. -- TimberMax calculates the most profitable ripping solution for each board at which time shifting saw blades are positioned automatically. -- Infeed includes a infeed belt conveyor with pressure roller. -- Infeed is mounted on slide that automatically adjusts the board in the best position before entering the saw. -- Conveyor is 24" wide X 120" long. ( This option has to be verified )Cutting Specifications -- Cutting depth with 12" Dia. saw blades, 2-1/2" with pressure shoe; 4" without pressure shoe. -- Variable feed speed, 16 - 158 FPM, feed drive 2 HP motor.Additional Features -- Sound enclosure with vertical pneumatic lifting -- Adjustable infeed fence. -- Automatic over thickness shutoff on infeed. -- Automatic starting and swing arbor mount for control panel.

RAIMANN KR 310 2M Multiple Rip Saw System With Valu-Rip Inffed12-1/4" Max. width cap., 13-1/2" chain width, 50 HP - 4,200 RPM V-belt driven arbor.Equipped with: -- Quick Fix arbor with: (2) Movable blade and (3) fixed blades; (5) Laser Lights. -- Enlarged movable saw housing with 25" pass through. Ball threaded adjustment of spindle. Saw blades mounted to individual collars. -- Chain with spikes every 3rd link, with automatic oiler with indicator light. -- Driven fluted lower roller with smooth upper roller for smooth feeding. Auto oiler fo guide lubrication. -- (4) Sets of anti-kickback fingers and 12" dia. dust hoods. -- Raimtech E5 with TimberMax Software optimizing software; makes it possible to get the most out of incoming lumber. The software optimizes rips for width or grade. TimberMax calculates the most profitable ripping solution for each board at which time shifting saw blades are positioned automatically. Infeed includes a infeed belt conveyor with pressure roller. Infeed is mounted on slide that automatically adjusts the board in the best position before entering the saw. Conveyor is 24" wide X 120" long.Cutting Specifications: -- Cutting depth with 12" Dia. saw blades, 2-1/2" with pressure shoe; 4" without pressure shoe. -- Variable feed speed, 16 - 158 FPM, feed drive 2 HP motor.Features: -- Sound enclosure with vertical pneumatic lifting -- Adjustable infeed fence. -- Automatic over thickness shutoff on infeed. -- Automatic starting and swing arbor mount for control panel.Also included: -- Valu-Rip infeed system 16' long -- (4) movable Lazer light Note: This machine has recently been refurbished on the chain feed and the arbor

RAIMANN KR 310 2M Multiple Rip Saw System ( 2 Moving Blades )12-1/4" Max. width cap., 13-1/2" chain width, 50 HP - 4,200 RPM V-belt driven arbor.Equipped with:& Features -- Quick Fix arbor with: (2) Movable blade and (3) fixed blades; (4) Laser Lights. -- Enlarged movable saw housing with 25" pass through. Ball threaded adjustment of spindle. Saw blades mounted to individual collars. -- Chain with spikes every 3rd link, with automatic oiler with indicator light. -- Driven fluted lower roller with smooth upper roller for smooth feeding. Auto oiler fo guide lubrication. -- (4) Sets of anti-kickback fingers and 12" dia. dust hoods. Cutting Specifications -- Cutting depth with 12" Dia. saw blades, 2-1/2" with pressure shoe; 4" without pressure shoe. -- Variable feed speed, 16 - 158 FPM, feed drive 2 HP motor.Additional Features -- Sound enclosure with vertical pneumatic lifting -- Adjustable infeed fence. -- Automatic over thickness shutoff on infeed. -- Automatic starting and swing arbor mount for control panel.Note: Transformer for 600 volts included if necessary

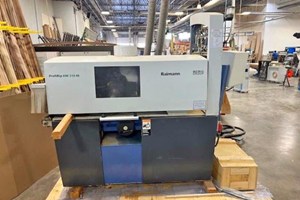

Raimann Unirip 310 Gang Rip

Raimann UniRip 310 Rip Saw Misc spacers and blades Bought new in 2020

Raimann KM310M Rip Saw 2 Moveable Blades

Raimann KM310 Rip Saw Per seller: The saw runs material. The variable infeed is stuck on one speed.

Raimann KM310M Rip Saw ValuRip Infeed System One moving Blade

ROSE MACHINERY LCFCMS14 PANEL RIPPER TO MOULDER TRANSFER SYSTEM OUTFEED ROLLCASE: -- Outfeed Rollcase receives material from the LHI Panel Ripper at 47 1/4"; elevation and drops down to place the lumber onto the Transfer Chains at 42"; elevation. 66"; wide rolls are 2-12"; diameter steel rolls, snap in style on 12"; centers. Rolls are powered by a line shaft using round Eagle Belts and a 1-1/2 HP gear-motor. The conveyor will be fabricated from tubular and sheet steel and designed to interface with the Transfer Chains. The conveyor speed is 80-120 FPM to create a gap between courses exiting the Panel Ripper. The drop will be triggered when a photocell detects the leading end of the boards, creating a far side lumber line. A pneumatic cylinder provides lifting power. When the transferred boards clear the rolls, another photocell triggers the rolls to return to the up position. Stock length handled by the Outfeed Rollcase is from 6’ to 16’. Elevation adjustment is +/- 1";.TRANSFER CHAINS: -- Transfer Chains receive material from the Outfeed Rollcase. The Transfer Chains are fabricated from tubular and structural steel. There are (6) strands of 2060H conveyor chain approximately 17’-6"; CC long, leaving 11’ clear space to accumulate (2) layers of ripped strips. (2) sets of pin stops are incorporated to keep the layers separate. The conveyor is powered by a 1-1/2 HP gear motor. Conveyor speed is 90 FPM maximum. Elevation is 42"; +/- 1";. LATERAL CHAIN FEED TABLE (ROSE MODEL LCFCMS14): -- Standard duty low friction flat top steel infeed chains drive the stock to the fence. The fence is adjustable for alignment with downstream equipment such as a Moulder. (3) lower powered feed rolls are smooth steel and non-marking. The feed rolls and chains are controlled by adjustable frequency drives. (3) upper pinch rolls are 5"; diameter urethane. The first (2) rolls singulate pieces while (1) pinch roll keeps the board moving on the bridge. The pinch rolls are triggered by photocells. A PLC in the control cabinet cycles the outputs based on operator input. Operator controls allow for start and stop of the chains and rolls, the feed to be paused, the rolls to be reversed and speed controls. -- Fabricated structural steel frame -- Passline height 42"; +/- 1"; -- Stock width 2"; to 9"; -- Stock Thickness 1/4"; to 4"; -- Stock Length 6’ - 16’ -- Rolls include a variable feed rate from 60 to 300 FPM -- Feed roll drive is by a 3 HP gearmotor -- (6) infeed chains, each 50"; long, are driven by a 1-1/2 HP gearmotor -- Infeed chain's variable feed rate is 20 to 75 FPM -- 2-1/2"; bore air cylinders actuate the pinch rolls -- With 3/4"; fence adjustment. ELECTRICAL CONTROLS: -- Controls are incorporated in the LCF Cabinet for the above Transfer System. It consists of operator controls, (2) VFDs, and additional PLC I/O and programming. STARTUP: -- 2-days startup assistance is included. Travel expenses are billed se

ROSE MACHINERY TRANSFER SYSTEM: PANEL RIPPER TO MOULDER INFEED OUTFEED TRANSFERA Rollcase will carry stock away from a LHI 72" Panel Ripper. When the stock reaches the far end-stop, a 6-Strand Transfer Belt will pop up and take the stock to a Lateral Chain Feeder (supplied by others). The lifting mechanism is triggered by photocells and powered by an air bag using plant air. When the stock clears the Rollcase, the transfer will return to the down position to receive the next batch of strips. Rollcase Specs:17' 0" long; 76" between frame; 1.9" dia. X 12 gauge rollers. Galvanized rollers are set high on 3" centers. 5-1/2" x 1-1/2" x 12 gauge formed steel channel frames; welded construction. 120 FPM maximum. Dual shaft w/jump chain; underhung drive; timing belt driven; 1 HP, 575 volt/3ph/60hz motor; less controls. With (3) H-style leg supports; 34" top of roller; adjustable 32" to 38", with knee braces. Fixed angle end-stop. Frame is powder coated blue; guards powder coated yellow. Transfer Specs:B/17 purple power twist belt; 36" strand centers; 10'-0" long. UHMW chain track; airbag lifting style; thru frame; 36" top of chain. With 1/2 HP Boston 575 volt/3ph/60hz motor with Boston reducer for 120 FPM; less controller; proximity switches to detect carriage position are mounted only; solenoid valve, mounted and plumbed; filter/regulator - mounted and plumbed. With central bearing lube. Frame is powder coated blue; guards powder coated yellow Electrical Controls:ROSE provides an Electrical Control & Cabinet that will control the above Outfeed Transfer System. Electrical Control will incorporate a fused disconnect for incoming power, transformer and power supply for control voltage, (4) variable frequency drives for the motors, a PLC to read input devices and control output devices, and pushbuttons/switches for operator control. The panel will be mounted and wired to the enclosed devices. Incoming power and other field wiring is by others. Two days startup assistance is included. Travel expenses will be billed at cost separately.Conditions:All gear-motors, mechanical equipment, limit switches, sensors or photoelectric devices as required for each item of this quotation, will be supplied and mounted. All pneumatic cylinders or other pneumatic power devices and their valves will be supplied and mounted. They will have connecting hoses and fittings installed. Filter/Regulator units will be supplied, mounted and connected by hose to the valves. Compressed air service to equipment is by others.Exclusions:This proposal describes the machinery to be provided by Rose Machinery Inc.. The equipment supplied by Rose Machinery Inc. is specifically limited to the items actually described in the itemized details of this quotation. Unless specifically mentioned herein, all other items and services are the responsibility of the Buyer. State or local sales taxes, or any permit or other fees that may be required are not included. All field wiring, plumbing, and installat

ROSE MACHINERY HBR Horizontal Band RE-RIP SawThe Horizontal Band Re-Rip Saw is an effective and efficient means of ripping short blocks into as many as six (6) set rip widths. Rip widths are easily adjustable, as well as the setting for stock thickness.Advantages of the system: -- Compact, efficient use of floor space. -- Accurate cutting of rips with minimum tear-out. -- Short blocks, 4" minimum length, without taper problems. -- Straight through feed design, good for sorting. -- Minimum dust collection required. -- Single point scrap collection. -- One saw drive motor, requires less power. -- Safety, no kickback problems.Specifications: -- Five (5) rip widths - (6) optional -- 20 HP bandsaw drive -- 30" diameter band wheels, 2" wide face -- (2) 3/4 HP feed works drives -- 1-1/2 HP feed belt drive -- 1" to 6" rip width (independently adjustable in each lane) -- 10" maximum board width at maximum rip -- 4" maximum waste piece width -- 3/4" to 2" stock thickness (all lanes adjust together) -- 4" minimum stock length -- 36" maximum stock length -- 80 FPM feed speed -- 52" to 58" pass line height -- Motor starters and push buttons included, wired for 440 volt, 3 phase, 60 Hz (uses standard mag starters) -- An automatic band lubrication system is includedOptional Equipment: -- For SIX (6) LANES, add ...$5,600 (SORTER increases $3,700) -- Automatic machine grease lubrication system, add ...$ 9,200 -- Ergonomic overhead stock slide, add ...$ 5,600 -- Output conveyor and sorter for 5-LANEsingle side discharge, add ...$47,300 -- Output conveyor and sorter for 6-LANE single side discharge, add ...$51,100 -- Operator's platform, add ...$ 7,900 -- Optional voltage configuration: 220/380/440V, 50HZ, add ...$2,900 -- Start-up and training, add $1,000 per day plus expenses at costHorsepower Requirements: -- (1) @ 20 HP -- (1) @ 1-1/2 HP -- (2) @ 3/4 HPDust Collection: -- (2) outlets, 6" diameter, 5,200 FPM velocity @ 2,300 CFMCompressed Air Required: -- 90 PSI @ 1.4 CFM

ROSE MACHINERY BDH/LC/LCFT Automated Infeed SystemAutomated, high speed Infeed System for Gang Rip Saws of all makes and models and other similar machines. -- 5-Arm Breakdown Hoist - Electric hoist accepts loads 4' wide x 4' high x 4' - 24' long; 10 HP gear motor (with brake) powers the hoist and holds the load. -- Hoist actuated through foot switches for up & down; limit switches provide max. up & down positions; (5) lifting arms tilt load at 50° allowing layers to spill onto the takeaway conveyor; 16,000 Lbs. max. lift cap. -- Landing Chain - Features: (6) Strands of roller chain; powered by a 5 HP gear motor at 60 FPM nominal rate. -- Tail end constructed with integral slide, stock transits from Breakdown Hoist; head shaft & gear motor supported by tubular steel frame with bolts to allow for leveling at installation. -- Material stops at the head end so the operator can flip & grade each piece. -- Chain races fabricated from steel, UHMW PE wear strips on the top race and on the return race; conveyor is 42' long. -- Magnetic motor starter with foot switch for operator to start & stop of the chain. -- Lateral Chain Feed Table "LCF2013-20": Feeds material 3" - 10" wide x 4' to 24' long x 1" to 3" thick; variable 50 - 200 FPM Feed rate; adjustable fence throughout 3/4" range for alignment with the Rip Saw (or other machines). -- (6) 30" long, low friction steel flattop infeed chains for long life non-marking transport; 1 HP gear motor. -- (3) Powered smooth steel & non-marking feed rolls, 2 HP gear motor; rolls & chains controlled by variable speed drives. -- (3) Overhead pinch rollers, 5" dia., urethane covered; 1st (2) pinch rollers powered by individual 2-1/2" bore air cylinders to singulate pieces onto a 2' bridge; 3rd roller keeps the board moving on the bridge; pinch rolls triggered by photoelectric cells. -- Note: Fabricated frames and appropriate parts of the items in this quotation will be painted with (1) coat of industrial grade Shady Lane Green enamel; guards and appropriate moving parts painted with Safety Orange. -- All gear motors, mechanical equipment, limit switches, sensors or photoelectric devices, as required for each item of this quotation, are supplied and mounted; all pneumatic cylinders or other pneumatic power devices and their valves supplied and mounted; connecting hoses & fittings installed. -- Filter/Regulator units supplied, mounted, and connected by hose to the valves; Note: Compressed air service to equipment is by others.

Ripsaw Feeder with 32" wide feed rolls on 18" thru 28" roll centers; will feed 3' thru 16' lumber. With 24" of in-out fence travel; feed speeds from 50 to 150 FPM; 3/4 HP feed roll drive and 3/4 HP fence drive via gear motor with brake. -- Fabricated frame of structural steel with boots that allow +/- 1" elevation adjustment. 3-1/2" dia. steel feed rolls driven by a variable frequency drive for speed adjustment; rolls are canted to aid in holding stock against the fence. -- Powered fence with 24" fence travel is easily shifted via joystick control for stock alignment with the sawblades. -- With pneumatic powered gate to keep material from feeding until the operator initiates the feed sequence. -- Urethane covered idler pinch roll is attached to the fence and is powered down at the start of the feed sequence. When a photocell detects the board is clear of the gate, the pinch roll and gate will return to their normal position. Electrical control panel ready for connection to the power supply.

ZHW800-70- SMW Gang Rip Saw - Saw from 3/8"-2 3/4"T x 31 1/2"W, 11"dia Saw Blade, 1-10 Blades, 29hp Motor. Also Available: ZHW800-80- SMW Gang Rip Saw - Saw from 3/8"-3 1/4"T x 31 1/2"W, 12"dia Saw Blade, 1-10 Blades, 40hp Motor. ZHW800-100- SMW Gang Rip Saw - Saw from 3/4"-4"T x 31 1/2"W, 14"dia Saw Blade, 1-10 Blades, 49hp Motor.
