Notchers For Sale

WPN-2 - SMW Double Head Notcher- Processing Size Max: 55"L x 3 1/2"W x 1 1/2"-2 3/8"T, Slot 1 3/4"D x 7 3/4"-9"W, 1800 pieces per hr, 40hp Motor, Dimensions: 7' 6"L x 4' 3"W x 4' 3"D, ~220lbs.

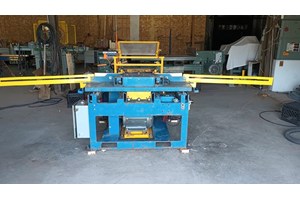

Baker Pallet Notcher 2020 or 2021 Single head 3 stringer Has hyd but was line shaft driven when used Used very little

Bob Hanna Double Head Notcher -The notcher has been in production -Replaced electrical -Replaced Bearings and anything that was needed to make the machine run flawlessly -Production rate is 1 notched stringer per second -Hard to find and extremely reliable

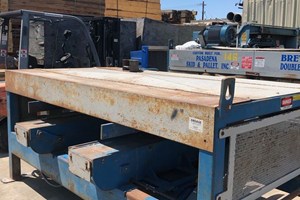

Brewer single head notcher, 15 hp electric drive motor, indexable head, good working condition

Brewer 4000C auto feed notcher, 86" max, 30" min, 1 1/2 radius heads, up to a 2" notch, 30HP motors. $30,000 Glen Avery 270-399-0142

CAM-WOOD 1AM-1150 Pallet NotcherSpecification: -- 10 HP Motor (remanufactured w/ new bearings) currently wired 220V, 3-Ph (440V, 3-Ph available). -- Maximum notch size 9" L x 2.5" H x 1-5/8" D. -- New design cutter-head with (4) straight HSS knives installed. -- Approximately 400 to 600 notches / Hr. -- Wired magnetic starter with on/off switch. -- (6) Months warranty on manufacturing defects on mechanical parts only. Machine Floor Dimensions: 48" L x 36" W x 40" H - Weight 665 Lbs.Palletized Shipping Dimensions: 48" L x 40 W x 44" H - Weight 720 Lbs.

CAM-WOOD 1AM-1180 Pallet NotcherSpecification: -- 10 HP Motor (remanufactured w/ new bearings) currently wired 220V, 3-Ph (440V, 3-Ph available). -- Maximum notch size 9" L x 3" H x 3" D. -- Cutter-head with (40) insert replaceable tip knife cutters for recycled wood. -- Approximately 400 to 600 notches / Hr. -- Wired magnetic starter with on/off switch. -- 6-Month warranty on manufacturing defects on mechanical parts. Machine Floor Dimensions: 48" L x 36" W x 40" H - Weight 720 Lbs.Palletized Shipping Dimensions: 48" L x 40" W x 44" H - Weight 772 Lbs.

Single Head 4 blade Notcher: custom built, lightly used Motor 10 HP, 220/440V, 3 phase Maximum notcher size 9” long x 2-1/2” height x 1-5/8” depth Cutterhead with 4 straight HSS knives installed

Custom Built Single Head Notcher Manual

Custom Built Single Head Notcher Manual

Single Head Pallet Notcher - New with warranty! 7.5 HP Motor 220/440 3PH Maximum Notch Size: 9" x 2-1/2" x 1-5/8 Power switch with magnetic starter Cutterhead with 4-straight HSS knives (optional 40 knife cutterhead) Dimensions: 48" L x 36" W x 40" H

The Go Fast NXL Single Head Notcher is a compact, heavy duty, and SAFE machine for your notching needs. Notch new or recycled material or even 6” wide cants. A dual hand control check valve requires that the operator has both hands on the push buttons while the table is moving through the cutter. The cutter head is well guarded and never exposed to the operator. In addition to a front clamp, a top clamp is included to help hold the material down while it is being notched. Unfortunately many other notchers do not include this feature which results in you replacing more cutter tips and spending more money.

The “Twin NXL” is a heavy-duty double head notcher designed to fill the gap between today's entry-level single head pneumatic notchers and high-end, expensive, auto-feed double head notchers. Notch new or recycled material or even 6" wide cants.

NXL-M Single Head Notcher. 20HP motor, can notch 4 stringers at a time. Notches new or recycled material. Equipped with a pop-up guard. Table floats on linear bearings and takes minimal effort for the operator to move.

10HP Notchers available with 3 phase or single phase motors. Great for notching NEW wood stringers. The design is compact, low maintenance, and easy to operate. Notches up to 72" long material, extension kits are available. Profile Technology cutting heads. Units are typically in-stock. Manufactured in New London, WI. Dust Collection is recommended, but not required.

Used NXL Notcher -230V 3PH -Dust Chutes -Standard Teeth NXL Pneumatic Notcher - 12” Diameter X 9” Wide Index-able Notching Heads - 0" - 2-1/2" Tall Notch Capacity - Up to 6” Material Width, 4” Material Height, Up to 60” Material Width (longer available) - Production: Up to 800 Stringers Per Hour - Top Hold Down Clamp - Dual 2" Bore Tie Rod Air Cylinders for Clamps & Table - Heavy Duty 3/8” Thick Steel Table Top - 1-1/4" Linear Bearing Slide Assemblies - Air System Includes: Dual Hand Safety Controls, Lockout Valve, and Regulator - Operating Height: 37” - Dimensions: 60” L, 90” W, 50” H - Weight: 2000 lbs

2021 | 480V | Produces up to 800 Stringers Per Hour

TWIN NXL Pneumatic Notcher - (2) 12” Diameter X 9” Wide Index-able Notching Heads - 0"- 2-1/2" Tall Notch Capacity - Up to 6” Material Width, 4” Material Height (Other Heights Available), Up to 112” Material Length (longer available) - Production: Up to 1750 Stringers Per Hour - Center boot quick adjust from 14” to 18” Wide via Hand Crank - Center boot adjustable from 10" to 22" Wide via with additional setup - Can optionally be used as a single head notcher for other center boot widths - Dual 2" Bore Tie Rod Air Cylinders for Clamps & Table - Heavy Duty 3/8” Thick Steel Table Top - Twin Top Clamps - 1-1/4" Linear Bearing Slide Assemblies - Air System Includes: Dual Hand Safety Controls, Lockout Valve, and Regulator - Operating Height: 37” - Dimensions: 120” L, 60” W, 51” H - Approx. Weight: 2650 lbs - (2) 20 HP Arbor Motors (230/480/3/60 TEFC) - Completely Pre-wired for 230V, Motor Starters with Start/ Stop Buttons and Circuit Overload Protection - Panel Face Mounted Rotary Disconnect - Panel Location: Lower Left Side - 96 FLA Will need dust chutes if not using with waste conveyor

Hazelthorn Pallet Notcher Model A10

Hazlethorne Pallet Notcher Single Head 25 hp
