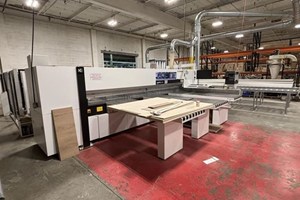

HOMAG - SAWTEQ B-400 PROFILINE 38/16: Rear Load Automatic Panel Saw -- Specifications• HOMAG SAWTEQ B-400 (HPL 400) US Edition is a flexible saw center. • Equipped with rear lift table, feed system, main saw and scoring saw.• The saw is capable of executing a wide range of cutting pattern types.• Maximum Panel Size: 62.99" X 145.67 (1,600mm x 3,700mm)• Cutting Length: 149.6" (3,800mm)• 145.6'' (3,700 mm) pull back capacity• Three Air Tables• Main Saw Blade Diameter: 450mm• Scoring Saw Blade Diameter: 180mm• Main Saw Motor: 37.8 HP• Blade Projection: 4.9" (125mm)• Saw Carriage Speed Forward: 0 - 492 FPM• Saw Carriage Speed Reverse: 492 FPM• Program Fence Speed Forward/Reverse: 82/295 FPM• Automatic Side Pressure Device• PowerControl / PowerTouch Touch-Screen w/ Windows 10• CADmatic 5 Control with Assistance Graphic• Actual model: HOMAG SAWTEQ B-400 38/16 (HPL 400) US Edition

HOMAG - BHT 500: CNC Through-Feed Machining Center (2-Head) + BARGSTEADT Stacker -- SpecificationsHOMAG "BHT 500" CNC 2-Head Through-Feed PtP Machining Center: -- Working Capacity Single panel processing: "X" Axis 98.4" (2,500 mm); "Y" axis 55.4" (1,406 mm); "Z" axis 0.5" - "2.36" (12 - 60 mm) min./max. panel thickness.(2) Panel processing: "X" Axis 98.4" (2,500 mm); Y" Axis 23.6" + 23.6" (600 + 600 mm); 1/2" - "2.36" (12 - 60 mm) min./max. panel thickness. -- Positioning SpeedVertical boring unit(s) Positioning speed: "X" Axis 328 FPM (100 MPM); "Y" axis 230 FPM (70 MPM); "'Z" axis 82 FPM (25 MPM).Panel transfer belt variable feed speed from: 0 - 295 FPM (0 - 90 MPM). -- Horizontal Through-Feed Boring Units(2) 2 HP (1.5 kW) Motors (1-motor each side) with: Variable rotation speeds up to 9,000 RPM. (2) 19-Spindle LH units, (38) total LH spindles; (2) 19-spindle RH units, (38) total RH spindles; spindle are on 32 mm centers.LH Horizontal drilling support is fixed; RH support motorized & equipped with: LED Indicator for precision positioning, pneumatic locking, and individual adjustment for positioning according to the panel size. -- Horizontal PTP Boring UnitsCNC Controlled horizontal PtP boring units with: (2 + 2) spindles in the "Y" axis on each boring head; (8) "Y" axis spindles total) -- Vertical PTP Boring Units(2) 4 HP (3 kW) Motors (1-motor each head) with: Variable rotation speed; up to 9,000 RPM.(2) Independently controlled top mounted CNC PtP boring/grooving heads; each head with: (30) Independent vertical spindles; spindle are on 32 mm centers. -- Grooving Saws(2) 2 HP (1.5 kW) Motors (1-motor each head); "X" axis grooving saw with: Variable rotation speed up to 12,000 RPM & 100 mm dia. blade. -- Operator InterfaceIPC with: HOMAG "Power Control 85T" + WoodWOP + Windows "XP" Operating System; icon driven software with: Graphical interface allows Operator to quickly & efficiently create programs & diagnose malfunctions in simple terminology. 17" TFT Color monitor; multitask Operating System; input/output modules; axes override; 4-axis interpolation; diagnostic graphics aide for programming; machine data & tool management. -- Options Include: BARGSTEADT - "TBH 250/QL/25/12": Vacuum Stacker Device.Work cap. "X" Axis 98.4" (2,500 mm), "Y" axis 55" (1,400 mm), 2.3" (60 mm) Max. panel thickness.High-speed workpiece stack exchange with a cycle time of 35 seconds; thin work piece device for panels from 8 mm thick. -- Actual Model is HOMAG BHT 500

HOMAG CENTATEQ T-700/PROFI (BOF 712/32/18/A) TWIN POD SHUTTLE TABLE MACHINE (W/ATC/BORING): -- Specifications Twin Pod Shuttle Table, Bridge Gantry machine with: NC Controlled, User-Friendly support rails & vacuum pods. -- Working Area:"X" Axis is 126" (3,200 mm, "Y" axis 72" (1,828 mm), "Z" axis stroke Routing is 12.8" (325 mm), "Z" axis stroke Boring is 7.3" (185 mm) max. material thickness of 4" (100 mm). -- Positioning Speed"X" & "Y" Axes 426 FPM (130 MPM); "Z" axis is 66 FPM (20 MPM); machine head travels on THK linear motion guides on all axes. -- Worktable x 2Twin Pod Table "Bridge Gantry" machine with: NC Controlled, User-Friendly support rails & vacuum pods, with electronic surveillance of all vacuum rails/pods/stops.(2) Independent 10.5' x 6' working areas, for Pendulum processing during loading & offloading of the materials being processed. -- Boring Unit x 2(1) 3 HP (2.3 kW) Motor; variable speed from 1,500 - 7,500 RPM; (21) independent "Quick Change" vertical spindles; (13) in "X" axis & (8) in "Y" axis.10-Horizontal Spindles; (3+3 in X axis & ( 2+2) in Y axis. (1) 100 mm X-Axis Saw slot. -- Machining x 2(1) 20 HP (15 kW) Air-Cooled, high-speed constant duty Router with HSK F63 adaptor & tool length "touch off" probe.Programmable speed from 1,250 - 24,000 RPM; constant torque achieved at 9,000 RPM, RH or LH rotation.Router is powered by a 14 kW frequency inverter; integrated air jet blow off located in the extraction hood.(1) 10-Position ATC plate mounted at the back of the machine. -- Operator Interface:PC87 Front-End with: "Power Control with PowerTouch2" + Windows© 10 + woodWOP7 Operating System.21" TFT Color graphic touchscreen for data entry; PC 85T hand control pendant; INTEL Core 2 Duo Processor; 1 SATA 160 GB hard disk CD R/W drives.Ethernet Connection 10/100 MBIT RJ45 (without switch) for LAN connection to office PC; USB ports & central USB connection at the operating panel.BECKHOFF Programmable logic control for (3/4) axes; linear, circular & helical interpolation.The machine control is contained on a separate freestanding console that can be placed at either the LH or RH side of the machine. woodWOP can be programmed offline with the same intuitive icon-driven software that the Operator has on the machine controller. -- Shuttle Tables x 2Manual LH & RH facing/loading & automatic shuttle into & out of the working field. Integrated dust/scrap/chip conveyor to clean/remove material form the work/processing area. -- Complete with (2) 100 m³/Hr Vacuum Pump: All zone perimeter Safety System. -- Actual Model is: HOMAG - CENTATEQ T-700/PROFI (BOF 712/32/18/A).This machine is New, NEVER INSTALLED!!

HOMAG BAZ 211 VENTURE 21M Machining Center W "C" Axis -- Maximum Working field: X-Axis 3,225 mm (126.9"), Y-axis 1,500 mm (59"), Z-axis stroke 300 mm (11.8"), max work piece thickness 60 mm (2.4"). -- X-axis travel speed 80 MPM (262 FPM), -- Y-axis travel speed 60 MPM (197 FPM), -- Z-axis 40 MPM (131 FPM), AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Working area: Working tables consist of (6) adjustable support rails, (2) vacuum cups per rail; laser unit to aid in the quick positioning of the vacuum cups. -- Machining unit: (1) 14.75 HP (11 kW) liquid cooled electro-spindle router (1,500 - 18,000 RPM), "HSK F63" quick change tooling; 12-position ATC automatic tool changer, "C" axis for 360ø horizontal processing. -- Drilling Unit: Vertical drilling head with (17) individual vertical spindles, 11-spindles in "X", 7-spindles in "Y", spindles on 32 mm centers. (1) saw blade aggregate, 125 mm dia; (1) 4-spindle lock case horizontal trimming unit aggregate. -- "POWER CONTROL PC 85" Numerical control with: "WOODWOP + BAZ" interface software, "WINDOWS NT"; icon driven with a graphical interface to allow the operator to quickly and efficiently create programs. -- Includes: 144 MB Disk drive, CD ROM drive, 12" color LCD monitor. -- Features: RS-422 Serial & USB connection to PC (up to 300 meters), (2) line adaptors RS-232 & 485.2 with 9-25 pin and card for RS-232 line (cable not included). -- Features: Multitask operating system, input/output modules, axes override, 4-axis interpolation, "WOOD SCOUT" diagnostic graphics aid for programming, machine data & tool management. -- Editor Module for PC with same look and functionality of software on the machine, allows transmission of programs and work lists; Required office PC configuration (not included): Pentium processor, 8 MB RAM, 8 MB hard disk; VGA video card. Complete with: -- ELMO 100 cm/h vacuum pump; perimeter protection cage; user & maintance manuals on CD with wiring diagrams and operation of Numerical Control. -- "C" Axis -- Actual Model is BAZ 211 VENTURE 21M.Riggers are required for tear down and loading

HOMAG DRILLTEQ V-310 CNC Machining Center (Vertical, W/ATC/Boring): -- Specifications:Flexible "Vertical" Machining Center with "ATC" that uses less than 11-meter² of valuable floor space in addition to an innovative panel handling system. -- Working Capacity:Max. workable part size for "X" axis is 120" (3,050 mm), "Y" axis 49.2" (1,250 mm), and max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 7.8" (200 mm), "Y" axis 1.97" (50 mm), min. part thickness of 0.31" (8 mm). Max. workpiece weight 132 LBS (60kg)LH or RH infeed & outfeed. -- Positioning Speed:The V-310 can reach vector speeds of 210 FPM (64 MPM) in "X" & "Y" axis, & 66 FPM (20 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring unit BHV310:(1) 3 HP (2.3 kW), variable speed from 1,500 - 7,500 RPM motor. Boring Head with (12) independent Vertical spindles, (6) Horizontal spindles with (2+2) in "X" axis & (1) in "Y" axis. (1) "X" / "Y" 90° grooving saw, 125 mm saw blade dia. -- Machining:(1) 13.4 HP (10 kW) Air cooled Electro spindle router with HSK-F63 adaptor, variable speed from 6,000 - 24,000 RPM. (1) 8-position ATC tool rack mounted on the side of the machine base for easy access. -- Operator Interface:HOMAG "powerTouch2" + Windows + WoodWOP operating system; "IntelCore 2 DUO" Processor. 21" TFT Monitor with pop up keyboard display, Industrial keyboard & mouse, Serial ports, USB ports, modem, Ethernet connection. Real-time multitask processing. -- Complete with:Pneumatic part clamping; sound enclosure and safeSCAN safety technology. -- Actual Model is HOMAG DRILLTEQ V-310

Maximum workable width of 24.02 inches (610 mm) Maximum workable length of 98.43 inches (2500 mm) Maximum workable height of 51.18 inches (1300 mm) Minimum working height of 9.84 inches (250 mm) It includes a preloading conveyor and an offloading conveyor, each measuring 118.11 inches (3000 mm) in length. The system is equipped with an NC21 Homatic Controller for precise operation. The main machine section weighs 21,385 pounds (9,700 kg), ensuring robust performance for heavy-duty tasks.

HOMAG KAL 210 AMBITION 2260 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Coiled stock min/max. Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max. thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two 3.0 kW (4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column, (2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor.Includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, an air-jet panel blow-off device & SIKO digital counters for adjustments. -- Panel Pre-Heater: the Pre-heater brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multi-Purpose Magazine: 2-Coil magazine expands capability by running coiled material & strips, magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates, lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 LBS/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo), (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 KW (1.0 HP) x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & bottom Flush Trimming Unit: Top & bottom, 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit FF 12: Multi-function 0.4 KW (0.54 HP) x 2 - 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper & lower edge, as well as trimming around the front & rear vertical edge. Max. feed speed 20 MPM (65.6 FPM) -- Profile/Bevel Scraping Unit PN 10: Top & bottom for thick PVC/ABS, pneumatically activated/adjustment. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit FA 11: Top & bottom edge buffing/polishing, pneumatically activated. -- Operator & Machine Control:HOMATIC PC 22 Power Control w/Touch Screen: Controller functions in Windows environment and features: Keypad w/LCD flat-screen display, fault diagnostic, OS9 real-time operating syst

HOMAG OPTIMAT KAL 210/7/A20/S2 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Working Capacity: Edge thickness cap.: 0.4 - 20 mm; min. panel width: 55 mm (2-1/4"); panel thickness: 12 - 60 mm; min. edge length: 7.8". -- Infeed Section:(2) Premilling heads, each with 3 kW - 6,000 RPM motor, (1) with jump control; chip blowoff unit after last head; SIKO digitals for horizontal & turret for vertical adjustments; -- Preheating infeed fence for panel edge. -- Automatic 2-coil feed magazine for coil material up to 3 mm thickness; strip feed magazine for up to 20 mm (3/4") solid wood banding. -- "QA 34 Quick Melt" Glue system per melt hopper feeder & roller applicator (reversible); pneumatic pressure roll section with (1) large dia. driven & (6) idle rollers. -- Workstations:Double motor front & rear end trim: 0.7 HP - 12,000 RPM Motor ea.; pneumatic chamfer setting. -- Top & bottom rough trims: 2 HP - 12,000 RPM motor ea. -- Top & bottom profile trim units: For leading & trailing edge, (4) 0.6 HP - 12,000 RPM motors; up to 4 mm edge thickness: All trim station motors are: 200 Cy - HF and equipped w/electronic brakes. -- Profile tracing from: Top, bottom and side for chamfering or rounding of pretrimmed PVC edges; pneumatically controlled blowing nozzles. -- Max. edge thickness: 3 mm (1/8"); panel thickness: 12 - 60 mm (15/32" to 2-3/8"); unit laterally adjustable by max. 50 mm (1-31/32"); Collection box for PVC shavings. -- Height adjustment with top pressure beam without tools; manually adjustable with digital mechanical counters. -- Profile Edge Scraping Unit with: Electropneumatic adjustment. -- Top & Bottom buffing unit. -- Feed & Holddown System:Motorized top pressure beam with powered V-belt holddown. -- 80 mm Wide Heavy-Duty feed chain w/rubber pads, automatic chain track lubrication system. -- 5 HP Feed drive for variable feed speed of 23 - 98 FPM. -- Operator & Machine Control:HOMATIC "PC 22", 2 GHz CPU with 512 MB RAM, USB port; functions in XP Windows environment. Keypad with TFT flat screen LCD display, onscreen fault diagnostic, part & lineal feet/meter tracking, etc. Diagnostic analysis from HOMAG via Modem fault diagnostic is possible. -- Complete with:SIKO Digital adjustments on: Top & Bottom trim, fine trim, and scraper stations; 10 KVA - 200 Cy frequency converter, electronic DC brakes on all trim motors. -- Sound cabins for all trim workstations; adjustable outboard panel support with floor supports. -- Actual Model is Optimat KAL 210/7/A20.S2.NOTE: Seller states that the Edgebander was in use until recently. The Corner Rounding stations are no longer in working condition

Houfek Buldog 7-3M-1100-RRC 3 Head wide belt sander43" width cap, Roller / Roller / Combination-headHead Configuration1st Head – Rubber – 90 shore @ 200mm (7.9";) dia.2nd Head – Rubber - 90° shore @ 2000mm (7.9";) dia.3rd Head– Rubber - 45° shore @ 200mm (7.9";) dia. with adjustable platen.Specifications -- Sanding width 1100 mm 43" -- Work piece height 3-160 mm 0.118"~6.3" -- Sand belt size 1120 x 2620 mm 44" x 103" -- Conveyor feed speed 3~15 m/min 9.8~49 FPM -- Table motor 0.18 kW 1/4 HP Equipped with & Features -- Main motor 1st head 18 kW 24HP -- Motor 2nd head 15 kW 20HP -- Motor 3rd head 15 kW 20HP -- Voltage 460/3/60 -- Exhaust outlet (4) 180mm; (1) 100mm (4) 7"; (1) 4" -- CFM requirements 6700 m3/hr 3950 CFM -- Weight 3100 kg (approx) 6820 lbs -- Floor space 3885x1715x2260mm153"x68"x89"

HOUFEK - Maxx 1100: 2-Head Wide belt Sander43 Width cap.; Drum; Combination head.Head Configuration1st Head: Contact roll.2nd Head: Combination contact roll and finishing platen.Specifications -- 1st Head: 6" Dia. rubber-covered contact roll; 25 HP motor. -- 2nd Head: Combination head with: Rubber-covered contact roll; 6" dia.; air cushioned finishing platen; timers control platen inflation& deflation; 20 HP motor. -- 43" x 75" Abrasive belts. -- TRU-TRAK Solid-state belt tracking. -- Variable feed speed with inverter control; 15 - 45 FPM. -- 1 HP Motor; endless belt conveyor with: Automatic tracking. Equipped with & Features -- Motorized part thickness opening with: LED 0" - 6" Opening. -- Infeed & Outfeed rubber-covered holddown rolls. -- Infeed over thickness bar. -- Emergency stops at infeed & outfeed. -- Air-operated disc brakes on sanding heads. -- Electrical interlocks on: Main access doors; motor load meters.NOTE from Seller: This machine was damaged during transport by the straps going over the machine. Doors work fine; they have dents on the top where the straps dented them. - Price REDUCED to reflect this (cosmetic) damage.

Hundegger K2i machining center: Fully automatic wood input with input roller conveyor and input and sliding cross conveyor Working width / Also Working thickness 20 - 450mm. Max. Element length 13,56m Under-table tilting cross-cut saw Universal milling unit – 4-axis (UF4) Combi support for vertically working tools Drilling device (2.2 kW) – drilling direction vertical Combi support for horizontally working tools Drilling device (2.2 kW) – drilling direction horizontal Marking tool (rear or on the user side) Fully automatic element rotation – hydraulic Transport and positioning system “two-hand system” Electronic connection Roller conveyor for removing wooden elements with punch 5-arm storage table Safety device Higher quality upper surface of the machine Extension of the K2i frame to 13.56 m 5-axis universal milling unit - UF5 (upgrade to 4-axis) Remote maintenance (including portable video camera) Dovetail milling machine (with rotating knives) 60x28x16.5 Under-table rotary saw with saw blade from 750 mm to 800 mm, 360 degree rotation, servohydraulic tilting 0 – 65 degrees Universal 5-axis unit equipped with cylindrical milling cutter, end mill and end mill, milling head diameter 350 mm x 100 mm end mill Combi support for at least 5 tools with horizontal drilling device up to power from 2.5 to 3.0 kW, drilling diameter max 24 mm, drill length min 460 mm, machining depth min 300 mm Combi support for at least 5 tools with horizontal drilling device up to power from 2.5 to 3.0 kW, drilling diameter max 24 mm, drill length min. 460 mm, machining depth min. 300 mm Positioning and gripping of the material using arms, which, while the material is measured, transported to the desired location, the arms keep the processed element as close as possible to the tool that processes it for stability. The processed material can be automatically rotated Tolerance +/- 2 mm over a length of 13 m

Hunton Limited Punch Grinder

HYDREX HPX510-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height.. -- (8) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4.5 KW (6 HP) hydraulic pump motor. Platen moving speed 5 FPM -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Loading from (3) sides; 39-1/2" from floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 19,500 Lbs).

HYDREX HPX510-5 Hot Press 120 Tons with (5) Daylight openings. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x 10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 85 mm dia.; Rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure; 54 kW of heating power. 40 PSI specific pressure over the entire platen area; 4.5 kW (6 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 24,000 Lbs. -- Overall dimensions: 3,800 length (+610mm -boiler + 610mm -pump/tank) x 1,790 wide x 2,450 mm high.

HYDREX HPX410-5 Hot Press 160 Tons using (8) hydraulic cylinders, Five daylight openings. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to nominal 4' x 10' (about 51" x 126"). -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device. -- (8) Cylinders (upstroke) -- 160 Tons of overall pressure -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- Platen size 1300 mm x 3200 mm (51" x 126") approx. Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 40 PSI specific pressure over the entire platen area; 54 kW heating power. Approx. 7.5 kW (10 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from floor with lower platen in the down position; Heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Overall press weight is approx. 27.500 Lbs. -- Optional: Extra Large Oil Heating Tank for Special Higher Temperatures if needed. Several more Sizes, Tonagge, Temperatures available. Please inquire.

HYDREX HPX512-5 Hot Press 160 Tons with (5) Daylight openings. Suitable for laminating veneer panels/doors, plastics/decorative paper, fireproof board, etc.Features (Overall): -- Board size up to approx 5' x 12'. -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (8) Cylinders (upstroke) -- 160 Tons of overall. Approx 100 psi unit pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 146" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 100 mm dia.; Rack & Pinion guide system for parallel closing of the platens. -- 54 kW of heating power. 100 PSI specific pressure over the entire platen area; 4.5 kW (6 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Overall press weight is approx. 30,000 Lbs. -- Overall dimensions: 3,800 length (plus 610mm - boiler + 610mm -pump/tank) x 1,790 wide x 2,450 mm high. -- NOTE: Stated data/specs as it relates to 160 Ton and specific pressure (dimension and weight) , KW, Cylinder Dai. are based on 5' x10' platen size. Revised numbers for 5'x12' size will follow as available from factory. Also if there is a price change it will be revised according as soon as the info is provided from factaory.

2004 Hymmen Proficoater 60" Roll Coat Line - Model ULX-S: Includes spare drum and lights SCMI Finish Sander

IMA Combiform I/R75/1260/V

Edgeband Thickness Max: 3 mm Thickness of Coiled Edgeband Max: 3 mm Suitable for PUR glue Premilling unit Corner rounding unit: 2 motors Scraper unit: Profile and flat Aggregates actuated by control: NC-axes Machine length: 10.400 mm Control: IMA ICOS OPEN COMPACT Workpiece return: Yes Edgeband Height Max: 65 mm Workpiece Length Min: 150 mm Workpiece Width Min: 65 mm Electromotoric height adjustment Top pressure by belt Feedrate max: 30 m/min Preheating zone Continuously variable feed Places in Coil Magazine: 2 Spraying Device Trimming Saw: 2 motors Flush/radius/chamfer milling units: 1 Buffing unit Type: Left-side Machine Space Required: Length: 13.700 mm Width: 5.550 mm Height: 2.400 mm IMA 08.378 Premilling unit IMA 08.42 Cutting aggregate IMA 08.055 Milling aggregate IMA MFA 08.348 Multiple machining aggregate IMA 04.1570 Gluing aggregate IMA 08.519 Profile scraper aggregate IMA 08.521 Duplex flat scraper

IMA Bima 810 V
