Conveyors General For Sale

CAM-WOOD ST-3VFD Variable Speed 3-Roller Feeder -- With the powerful feeding strength, one can freely & simply assemble, dismantle & adjust it. It may be installed onto the circular saw, shaper, sander, router, planer serving as one’s invisible third hand at work. -- There are three (3) feed rollers on this feeder. Each roller has a suspender to hold simultaneously the workpiece at different degrees of thickness. It is also used to help the feed pressure. In case you need a large space between the rollers, you can take off the middle roller so the remaining rollers may be used for curve driving. Feeding Speed: 10 - 79 FPM (VAR). -- For spindle molder, the feeder may be adjusted to the leveling direction for side feed to meet the requirement of various processing condition. -- There are two (2) sets of matching & interchangeable gears of variable sizes to create for stages of feeding speed. -- Forward & reverse feeding switch. -- Universal support stand with cast iron base, main bracket, thick refaced column and aluminum hand wheels for vertical and horizontal positioning.

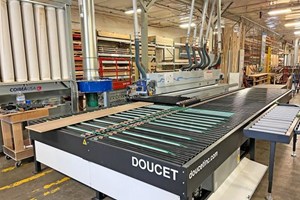

DOUCET - BT 3-48: Return Conveyor for Edgebanders with Panel TurnerFor Left Hand feed Edgebanders with: Right Hand Return Conveyor. -- Receiving table: 66" L x 84" W; Return Conveyor: 48" W; total length: 24'. -- Unit can process: 48" Wide x 108" length. -- Minimum part capacity: 4" x 12" For the side turner.Options Included -- Side mounted "PT 90" Panel Turner; 22" W x 89" L. -- Panels are turned 90° as part of the transfer process between the Receiving & Return Conveyor, eliminating panel overhang.Actual Model: BT3-48-H30-5-32-D-PT

DOUCET FB-36-5-16-G Return Conveyor -- Designed for: Shaping Sanding machines and Edge Foilers with a continuous transfer process. -- Left hand return with: 60" W x 36" L Receiving conveyor / transfer table; 36" W x 11' L return conveyor. -- Feed rollers driven by: DC Variable speed motor; helps guide the part onto the receiving module. -- Polymer belts side shift panels to: Return Conveyor quickly and efficiently.

DOUCET - BT 3-48: Return Conveyor for Edgebanders with Panel TurnerFor Left Hand feed Edgebanders with: Right Hand Return Conveyor. -- Receiving table: 66" L x 84" W; Return Conveyor: 48" W; total length: 24'. -- Unit can process 4-side panels up to: 66" Wide x 66" Long, w/o assistance. -- Unit can process Long panels up too: 66" Wide x 96" Long, w/o assistance. -- Unit can process 4-side panels up too: 48" Wide x 108" Long, w/Optional PT 90° panel Turner, w/o assistance (included). -- Minimum part capacity: 12" x 12" -- Minimum part capacity: 4" x 12" w/ Optional Panel Deviator For the side turner (included).

DOUCET - MSB-ESB 16-G: Panel Sequencer (Edgebander & similar application)Model "ESB" increases the productivity of your Edgebander by: Maintaining the gaps between parts to their absolute minimum. -- It allows the Operator to stage several panels in its bottom feed magazine. -- Panels are released automatically as soon as the preceding one clears; the "no feed zone" on your Edgebander or feed end-to-end on your Shaper-Sander.Specifications & Operation -- "ESB 16" Features: 16" Wide x 54" long feed belt. -- Suitable to feed panels ranging from: 4" x 10" to 24" x 84" at up to 100 FPM. -- Feed hopper offers: Reserve capacity up to 12" thick or a max.150 Lbs. -- Sequencing of panels "fed lengthwise" is fully automatic. -- Sequencing panels "fed width-wise" or of panels larger than those described above require the assistance of an Operator. -- This model is made for left-hand feed EdgebanderNOTE: New feed roller installed lately at ...$ 1,600 cost.

"EXTREMA XF-34.3 Power Feeder w/Mounting Column;EXTREMELY" Heavy duty 3-Roll Power Feeder with 4-3/4" & 2-1/4" rubber rollers. -- 1 HP Motor with forward/reversing switch. -- (4) Speeds of 13 - 26 - 36 & 72 FPM. -- Heavy duty cast aluminum construction of the feeder housing. -- Cast iron stand components with fully adjustable mounting column. -- 3/4" Floation of the rollers. -- Standard reach from base is 720 mm / 28-3/8" (optional 850 mm / 33-7/16" arm available)

EXTREMA XF-38.1 Power Feeder w/Mounting Column;"EXTREMELY" Heavy duty 3-roll Power Feeder with 4-3/4" & 2-1/4" rubber rollers. -- 1 HP Motor with forward/reversing switch. -- (8) Speeds of 7 - 13 - 18 - 22 - 26 - 36 - 43 - 55 & 108 FPM. -- Heavy duty cast aluminum construction of the feeder housing. -- Cast iron stand components with fully adjustable mounting column. -- 3/4" Floation of the rollers. -- Standard reach from base is 720 mm / 28-3/8" (optional 850 mm / 33-7/16" arm available)

EXTREMA XF-38.3 Power Feeder w/Mounting Column;"EXTREMELY" Heavy duty 3-Roll Power Feeder with 4-3/4" & 2-1/4" rubber rollers. -- 1 HP Motor with forward/reversing switch. -- (8) Speeds of 7 - 13 - 18 - 22 - 26 - 36 - 43 - 55 & 108 FPM. -- Heavy duty cast aluminum construction of the feeder housing. -- Cast iron stand components with fully adjustable mounting column. -- 3/4" Floation of rollers for material thickness variations. -- Standard reach from base is 720 mm / 28-3/8" (optional 850 mm / 33-7/16" arm available)

EXTREMA XF-3J Power Feeder w/Mounting Column;3-Roll Power Feeder with (3) rubber feed rollers. -- 0.25 HP Single phase motor. -- (4) Speeds of 20 - 26 - 33 & 43. -- Cast aluminum construction of the feeder housing. -- Heavy cast iron Universal Stand components. -- 1/2" Flotation of the rollers. -- Fully adjustable Mounting Column w/locking joints.

EXTREMA XF-44.1 Power Feeder w/Mounting Column;"EXTREMELY" Heavy duty 4-roll Power Feeder with 4-3/4" & 2-1/4" rubber rollers. -- 1 HP Motor with forward/reversing switch. -- (4) Speeds of 13 - 26 - 36 & 72 FPM. -- Heavy duty cast aluminum construction of the feeder housing. -- Cast iron stand components with fully adjustable mounting column. -- 3/4" Flotation of the rollers. -- Standard reach from base is 720 mm / 28-3/8" (optional 850 mm / 33-7/16" arm available)

EXTREMA XF-44.3 Power Feeder w/Mounting Column;"EXTREMELY" Heavy duty 4-Roll Power Feeder with 4-3/4" diameter x 2-1/4" wide rubber rollers. -- 1 HP Motor with forward/reversing switch. -- (4) Speeds of 13 - 26 - 36 & 72 FPM. -- Heavy duty cast aluminum construction of the feeder housing. -- Cast iron stand components with fully adjustable mounting column. -- 3/4" Flotation of the rollers. -- Standard reach from base is 720 mm / 28-3/8" (optional 850 mm / 33-7/16" arm available).

EXTREMA XF-54T.3 Power Feeder w/Mounting Column;"EXTREMELY" Heavy duty 5-roller CONTINUOUS BELT Power Feeder with (3) 44.5" x 1/2" tracks. -- 1 HP Motor with forward/reversing switch. -- (4) Speeds of 15 - 28 - 39 & 78 FPM. -- Heavy duty cast aluminum construction of the feeder housing. -- Cast iron stand components with fully adjustable mounting column. -- 3/4" Floatation travel of the rollers. -- Standard reach from base is 720 mm / 28-3/8" (optional 850 mm / 33-7/16" arm available)

EXTREMA XF-DC4.3 Power FeederExtrema has a wide range of power feeders that range from compact junior feeders to large 5-roller feeders. The XF-DC4 Series features a 4-roller system with variable speeds. Includes the 2/3HP DC brushless servo motor for higher torque and better variable speed control than a 1HP AC motor.Features: -- 4 Rollers -- FWD & REV -- 1PH or 3PH 230V -- DC Brushless Servo Motor -- 120mm x 60mm Rollers -- Infinitely variable feed speeds 7-72ft/minSpecification: -- Horsepower: .7HP -- Number of Rollers: 4 -- Number of Speeds: Variable -- Speeds: 7-72 -- Min Speed (ft/min): 7 -- Max Speed: 72 -- Suspension: 3/4" -- Roller Size: 120mm x 60mm Rollers -- Weight: 141 lbs

"EXTREMA XF-54T.1 Power Feeder w/Mounting Column;EXTREMELY" Heavy duty 5-roller continuous belt Power Feeder with (3) 44.5" x 1/2" tracks. -- 1 HP Motor with forward/reversing switch. -- (4) Speeds of 15 - 28 - 39 & 78 FPM. -- Heavy duty cast aluminum construction of the feeder housing. -- Cast iron stand components with fully adjustable mounting column. -- 3/4" Floatation of the rollers. -- Standard reach from base is 720 mm / 28-3/8" (optional 850 mm / 33-7/16" arm available)

Gruber Systems 12’ Vibration Conveyor Tables with 230V 3 Phase Vibrators Seven Available. Six with Vibrators and one without. These powerful 3-phase electric vibrator-equipped Vibe Tables offer heavy-duty performance, quieter operation, and lower compressed air volume requirements compared to pneumatic vibrator equipped tables. Specifications: Frame: Height (to top of wheelway): - 28” (71.12 cm) Width - 24” (61 cm) Length - 120” - 144” (304.8 - 365.76 cm) Wheelway (wheel center to wheel center): Width - 20-1/8” (51.12 cm) Pneumatic Vibrator (@20 psi): PSI required to Start - 25 PSI (1.75 kg/cm²) Vibrations Per Minute (VPM) - 3,200 Force - 255 lb-force (115.6 kg-force) Flow - 9 CFM (0.25 m³/minute) Electric Vibrator (220/440 volt, 3Ø, 60hz. @ 10% setting) Vibrations per Minute - 3,456 VPM Pounds of force - 230 LB Full load current - 1.26 / .69 Amps Starting current - 9.8 / 4.9 Amps

LIGMATECH ZHR 01 RETURN CONVEYOR for RH FEED Edgebander (i.e. Brandt, OTT) & LH RETURN to the operator.FunctionAfter panels come off a through-feed machines feed-track, they are transported via (4) powered take-up belt onto a 90° transfer section and returned back to the operator.Specifications: -- Working Length, 12" - 98" (300 - 2,500 mm) max., working width 5.9" - 40" (150 - 800 mm) max., panel thickness 0.3" - 1.6" (8 - 40 mm) max. and 100 Lbs (45 kg) max. weight. -- Variable Feed-Speed, 26 - 138 FPM (8 - 42 MPM); Approx. total length of 30'; (4) 18" pickup arms, spaced 7", 8" & 14", take product from the edgebander and transport it to cross transfer conveyor section. -- Cross Transfer Section, 43-1/2" x 83", transfers material and drops it 2-1/2" onto roller transfer section, 43-1/2" x 83", which transfers material to a powered 40" x 150" flat-belt conveyor, which transfers material to a gravity roller conveyor, 40 x 72", with 2-1/2" x 35" plastic coated rollers to be received by the operator. -- Total Length of Return Conveyor is 25'. -- Actual Model is LIGMATECH ZHR 01-R-055.NOTE: (2) Photos show (3) Rollers/Feed Belts & Pusher Arms that are missing from the machine.

Mellott 24" x 26' Rollcase w/Spiral Roll Section w/4' 4 Arm Pop Up Transfer w/6' 3 Arm Pop Up Transfer w/Drive

Transfer Belt Built on Mellott rollcase frame • 31" x 12' spiral rollcase built on end • 36" x 25' x 8" sides • 22" pan, 22"

POWERMATIC PF-41 4-Roll Power FeederFeatures: -- Cast Iron construction. -- Continuous duty motors transfer power from the gearbox to the feed rollers. -- Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions. -- Roller chain and sprocket design provide positive feeding for all types of materials. -- Rollers can be changed out easily and quickly; Smart roller system allows for the tires to be replaces without replacing the assembly. -- Solid cast iron construction of body pieces and base. -- The support column is fully adjustable for horizontal, vertical or angled feeder position. -- Universal joints provide stability for vibration-free feedingSpecifications: -- Swing 360°. -- Motor Power 1 HP. -- (4) Feed speed rates at 13 / 36 / 43 / 108. -- Max. Height of Rollers Parallel to Tabletop 8-1/2".

RYDELL 651R Automatic Tailboy
