Dry Kilns For Sale

#259 • 2015 Hildebrand Dry Kilns Labeled as kilns 11-14, 4 units tied together, 70,000 BF at 4/4 capacity per unit, 280,000 BF capacity total Pre-Fab construction, 12-15 year effective life remaining, wireless controls in kiln control room included, includes all control panels and contents of maintenance area behind kilns

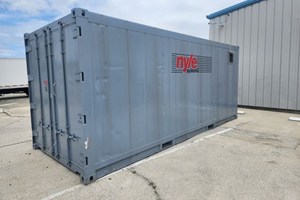

2021 Nyle systems L200 pro 20' container package. Custom built for our family lumber mill in October '21. We never got a chance to ever undo the inside package or hook up electric, not one board was ever put inside before we decided to sell our lumbermill. Circulating Fans with Fan Truss, Electric Heating System built into the dehumidification unit, Power Venting System, 20' Refrigeration Shipping Container Track System which includes carts to load and unload, False Ceiling package to direct airflow through the lumber being dried. $42,100. Call for any other questions! Adam- (423)608-3721

(2) Dry Kilns each with 7,500 bf capacity which can be increased to 12,000 bf each. Installed cost $105,000. Components cost $65,000. Components include: Lochinvar boiler, mystifyer pump, Lignomat kiln control system, McMaster-Carr stainless tubing, fittings, etc. Buyer must disassemble and move. $10,000 each.

MLS Number 10812980 1994 American Wood Dryers Dry Kiln 2 chamber package type dry kiln. Boiler room between the two chambers Very good condition. Requires low pressure steam (15 psi). 5 VFD controlled fans. Includes controls and boiler Capacity approximately 100,000 board feet of 4/4. Each chamber and boiler room is 36'Lx20'Hx32'D Dismantling cost responsibility of buyer

AMERICAN WOOD DRYER Direct-Fired Lumber Kiln - New, still at MFG' place:Now offered at a substantial discount off the original cost and complete with the following main components and features: -- 20’ x 54’ in size, 39,000 Board Foot (92.03 Cu. Meters) capacity or 62,100 linear feet capacity, Package Type, Front Loading, Dry Kiln Building features: -- Gable Roof. -- R-20 Insulated ALCLAD Aluminum Panels, stainless-lined. -- Fan Deck Grating. -- Motor removal equipment. -- Drystar® Computer Control System, single head zone with (4) Rtds. -- 10 MM BTU/Hr. Natural Gas Fired Furnace. -- Kiln control and furnace Room approx. 20’ x 30’ x 11’ high on lowest side. -- (12) Steel lumber backstops. -- (7) 20 HP Air Circulation Fans. -- (7) SIEMENS Variable Frequency Fan Drives for 20 HP Fans. -- Accu Spray air atomized cold water Spray System with (7) Spray Nozzles. -- Insulated Door mounted on overhead track.The following $-figures show the distribution of funds applied to the original purchase price of nearly ...$650,000: &#9679 Kiln with Gas Fired Furnace: ...$391,310 &#9679 Control System: ...$16,540 &#9679 Furnace Room: ...$33,145 &#9679 Backstops: . ... $ 5,400 &#9679 VFD’s: ...$14,500 &#9679 Water Spray: ...$ 5,100 &#9679 Furnace upgrade .. $200,000NOTES: &#9679 The equipment is stored in containers located at at a plant facility in Portland, Oregon. &#9679 Installation by the manufacturer can be acquired directly from AMERICAN at Buyer’s option. &#9679 Building shown in photo is representative only, not the one for sale here.

#261 • American Wood Dryers Dry Kilns, Labeled kilns 6, 7, 8, 3 units, built together, 50,000 BF capacity each, 150,000 BF total capacity, includes all controls for kilns 6, 7, 8 in the kiln control room

Carolina Machinery Sales (CMS) is proud to offer Thermo-Modification Technology from the Italian manufacturer Big on Dry. ????Big on Dry has improved the Thermo-Modification process with their THERMOWOOD (THW) line and provides complete "turn key" systems. The PLC control systems allow programming for a wide variety off wood applications. This allows the same systems to work with very delicate wood that is hard to treat to thicker wood that will be used for outdoor products. The THW system can also be used as a conventional kiln with steam. Basic systems include: - Kiln completely built with stainless steel and aluminum - Initial humidy of 10-15% is reduced to 5-6% - Loading options: Side or Trolley - Heating options: Gas or Wood Burner - Humidification: Combined Spraying System - Controls: Fully Automatic Controls with PLC - Interface & Software: Allows communication with Big on Dry technicians to provide online support - Complete installation and training in the USA Contact CMS to get a quote for your Thermal Modification system

Big on Dry Thermal Modification Kiln Optional Single or Double Units available! The photos on this listing show the latest kiln installed in the US. The wood treated was 12" wide pine at 190 degrees C. Contact CMS for more details! - Gas boiler system (optional oil or electric) - Quick, efficient installation provided by technicians! - Complete package includes shipping, installation and all drawings fro site preparation. - Approx 10,000-12,000 board foot capacity (depending on lumber size and bundle stacking) on the Double Kiln. - Customer support via internet connection.

MLS Number 11983631 BolDesigns Dry Kiln Building retrofit kit 750,000 btu propane 240V single phase Dries tractor trailer load Includes iPad computer Very good condition Building available at extra cost

BolDesign Kiln that includes Future-Design Controls FDC-2010-K5C Small Kiln Features • Board Feet Capacity: 2,000 to 10,000 BF (Board Feet) • Expect a 6-9 Week Turn Around • Easy to Clean and Maintain • Built with Aluminum and Stainless Steel, The Same Aluminum that is food grade used in Commercial Kitchens • RH control results in less lumber damage, this leaves you with better, brighter colors These Kilns are Built for Forklifts • Pallet Stock Drying Kiln; Disassembled crated and ready to load. 1 truck

Coe 47' x 26' Package type dry Kiln with Controls, 1989 Hurst gas boiler 150 PSI, 6900# Steam Per Hour S/N 51000-750-3, Condensate Tank & Pumps & Electrical. can Buy as a Package or Seperate the Hurst Boiler.

New Kiln-Direct

Front Load Dry Kiln with Hawa Controls as pictured gas fired inside dimensions:120” x 60” x 115” high

2014 Kiln-Direct Kiln and Heat Treater 12' x 28' Propane on Concrete Slab. 9000 bd ft model: SLK 271109 s/n: 0090

NOVA TTF-6200 Dry Kiln SystemUnassembled Front Load Kiln with high horsepower Heat & Exhaust.Specifications: -- Interior Dimensions: H 10' 3,5" (3.14 m), D 7'2"(2.19 m), W 25' 3" (7.7 m). -- Loading Door Opening: H 9' 10" (2.85 m), W 25' 3" (7.7 m). 1/8 " Aluminum sidewall bumpers, side hinged doors, exterior installation. -- Average 4/4 capacity: 5,100 bd. ft (12 m3) with 3/8" (9 mm) stickers. -- Average 8/4 capacity: 6,120 bd. ft (14 m³) with 3/8" (9 mm) stickers. -- Price shown is for kiln only. -- High horsepower heat requirement: 128 k BTU/hour. -- Heated Floow System, manuals and blueprints. Other Equipment information: -- Assembly supervision, per week charges + all expenses, add ...$ 2,200. -- Electrical Requirements: 230 VAC, 1 Phase, 60 Cycle, 25 kw/Hr max. -- Options: Replacement parts kit for a kiln, gas furnace and wood-waste furnace; Propane or Natural gas furnace: H-180 providing 148k BTU/hour output; Plumbing for gas furnace, Manual feed wood-waste furnace.

(2) Unassambled front load Kilns only System with high HP heat and exaust designed to hold 8,461 bd/ft (20 cub.m) of 3/4" (25 mm) lumber and 10,475 bd/ft (25 cub.m) of 8/4" (50 mm) lumber (35 cbm). -- Kilns internal dimension: Height 12'3-1/2" (3.75 m), Depth 16' (4.88 m), Width 21' (6.4 m). -- Loading door opening of 10' (3.05 m) x 21' (6.4 m); 1/8" aluminum side wall bumpers, side hinged doors, exterior instalation. -- High HP will service the heat requirements up to 245k BTU/Hr. -- Electrical requirement of 230 VAC, 3-Phase, 60 Cy; 7.21 kW/Hr. -- System includes: Timber Dry management automated Dry Kiln Controls for each kiln, Deduct for Interior installation eliminates foor truss and metal, touch-screen operator interface, data recording, optional remote access, and networking capability, Replacement parts kit for woodwaste furnace and Replacement part kit for a kiln -- Can be supplied with: other options or without some features - price will be adjusted. -- Installation and service available in the USA and Eastern Europe.

Unassembled Front Load Kiln with Standard Heat and Exaust -- Interior dimensions: H 17' 6" (5.33 m), D 25' 8" (7.8 m), W 26' (7.9 m). -- Loading Door Opening: height 14'6" (4.4 m), width 25'3" (7.7 m). 1/8" Aluminum Bumper Walls, Top Hinge Door, Exterior Installation. -- Average 4/4 capacity: 25,459 BdFt. with 3/4" stickers. Average 8/4 capacity: 33,293 BdFt with 3/4" stickers. -- Price shown is for kiln only. -- Standard HP Heat requirement: 382k BTU suitable for drying dark hard woods; Optional high HP Heat requirement: 674k BTU suitable for drying softwood and white hardwoods. -- Electrical requirments: 480 VAC, 3 Ph, 60 Cy; 16.5 kW/Hr. Timber Management Control System with touch screen operator interface, data recording, optional remote acces & networking capability. -- Includes: Control room with heated air intake; 12'H x 4'D x 26'W. Top Hinge door opening System includes "230" electric chain hoist. Boiler Room: 12' W x 25' D x 17'6" H. 10' roll up & (1) access door. - Replacement parts kit for a Kiln. Timber Dry Management Network Capability. -- Optional: Construction supervisor/per week charge... $2,200 + expenses.

NYLE L200 DEHUMIDIFYING DRY KILN: -- Specifications:Complete packaged dehumidification drying system ready for installation into a custom-built drying chamber, designed to operate effectively at low humidity levels. Can bring moisture content to as low as 6%. -- Operator Control:Patented "XDH" Control System is housed in a corrosion resistant, epoxy coated aluminum cabinet and operates over a wider range of temperatures with greater efficiency than any dryer available. -- The "L200" has a load capacity of 2,000 to 4,000 board feet and is equipped with a 2 HP, 3,450 RPM compressor. -- Complete with:(1) 0.3 HP, 1,725 RPM, 16" dia. internal blower producing 4 kW (5.36 HP) of electric auxiliary heat; Design temperature range is 70° - 120° F; Removes up to 250 Lbs of water per 24 hours. -- Options Include:Customer/custom Built Drying Chamber Box as pictured. The Chamber box is made up with stress skin panels. It holds up to 12 ft 6-inch length and approx. 1,100 board foot of material per charge. -- Actual Model is NYLE L200 DEHUMIDIFYING DRY KILN:

NYLE L500 DEHUMIDIFYING DRY KILN: -- Specifications:Complete packaged Dehumidification Drying System ready for installation into custom-built drying chamber. (3) 0.50 HP Air Movers, 24" dia. circulating fans.Designed to operate effectively at low humidity levels; can bring moisture content to as low as 6%. -- Operating Control: Patented "XDH" Control System is housed in a corrosion resistant, epoxy coated aluminum cabinet and operates over a wider range of temperatures with greater efficiency than any Dryer available. -- Complete with:5 HP Compressor, 1 HP internal blower and 8 kW electric auxiliary heat. Design temperature range of 70° - 160° F; removes 720 Lbs of water/(24) hours.The "L500" has a load capacity of 4,000 - 15,000 board feet. -- Options Include:Insulated Door and Door Frame as Pictured.NOTES: &#9679 Two identical units are available. See Listing BD-010318 for the other. &#9679 Previous owner said these are in good condition despite the year of manufacture. &#9679 Photos pertaining to both units are shown here with the exception of the nameplate photo. &#9679 These units were often supplied from the factory with (5) air handling fans rather than (3) as supplied here. &#9679 No building provided. Chamber plans available. &#9679 NYLE new model number for the L500 is HT 8 (HT stands for High Temperature).

NYLE L500 DEHUMIDIFYING DRY KILN: -- Specifications:Complete packaged Dehumidification Drying System ready for installation into custom-built drying chamber. (3) 0.50 HP Air Movers, 24" dia. circulating fans.Designed to operate effectively at low humidity levels; can bring moisture content to as low as 6%. -- Operating Control: Patented "XDH" Control System is housed in a corrosion resistant, epoxy coated aluminum cabinet and operates over a wider range of temperatures with greater efficiency than any Dryer available. -- Complete with:5 HP Compressor, 1 HP internal blower and 8 kW electric auxiliary heat. Design temperature range of 70° - 160° F; removes 720 Lbs of water/(24) hours.The "L500" has a load capacity of 4,000 - 15,000 board feet. -- Options Include:Insulated Door and Door Frame as Pictured.NOTES: &#9679 Two identical units are available. See Listing BD-010317 for the other. &#9679 Previous owner said these are in good condition despite the year of manufacture. &#9679 Photos pertaining to both units are shown here with the exception of the nameplate photo. &#9679 These units were often supplied from the factory with (5) air handling fans rather than (3) as supplied here. &#9679 No building provided. Chamber plans available. &#9679 NYLE new model number for the L500 is HT 8 (HT stands for High Temperature).
