Dust Collection Systems For Sale

MAC 120-MCF-572 High Capacity Baghouse Dust Collection system with Rotary Air Lock (RAL) and Medium-pressure Controlled air cleaning dust Filter (MCF). -- Baghouse Capacity: 50,000 CFM @ 7.2:1 Air-to-cloth ratio (ACR), approx. 6,921 sq-ft of filter area based on (572) Filter bags; 120" long x 5" dia. -- Equipped with: (1) AIR TECH size 402, BISW, Backward Inclined Air Handling Fan, Class IV, with 40" inlet, ground-mounted on unitary base, flanged inlet box & outlet. For prior application fan operating point (RPM/SP) is set up for about 41,526 CFM @ 12" WG at 1566 RPM, drawing 119 BHP. the fan is equipped with a variable volume damper on discharge. Fan range is about 40,000 - 55,000 CFM. Powered by a TOSHIBA 150 HP TEFC, 444T, 1800 RPM motor packaged with a belt drive -- Bag Cleaning: Mac "Never-Miss" Cleaning System with rotating arm, diaphragm valve for pulse cleaning Approx. 3 HP positive displacement (PD) pump for bag cleaning at only 7- 9 PSIG. 1 HP direct drive gear motor for distribution arm, integral manifold/surge tank, pneumatically controlled firing mechanism activating the diaphragm valves/nozzles. When cleaning arm & bag segments are correctly aligned air nozzles fire directly into bags without wasted cleaning air. -- Includes: MAC FS24x24 AIRLOCK Rotary Air Lock (RAL) with approx. 2 HP SYNCROGEAR MODULE gear motor; sprinkler package; 60° Cone-shaped hopper attached to MAC at bottom of cone. -- Features: Floor-standing Electrical controls (excluding shared controls) with MOTORTRONICS Solid State AC Softstart for main 150 HP motor. -- Additional Features: Explosion vents. Summer/Winter diverter and return air ductwork. Support structure. Caged access ladder from ground Service Platform and to the top plenum. -- Baghouse constructed of 7 gauge carbon steel containment; one piece body all welded construction, 180" (15') diameter shell panelized unit, walk-in plenum for maintenance and bag replacement. -- MAC design features: MCF 4HVP Pump package. MCF Medium-pressure air requires less HP and yet offers high dust and air collecting efficiency with unmatched baghouse cleaning at lower operating cost. MCF pulses each bag the same number of times with the same amount of air. (Unlike some competitors which clean the inside rows of bags more often than necessary thus wasting energy, causes uneven pressure drop, and bag wear). -- (2) of these identical units are installed per photos, one only is available based on Owner/buyer agreement and price point. Material handling fan/drive is not included and is assumed to stay with the remaining filter unit. -- Overall dimensions: 580.5" high x178.5" square frame with an estimated weight of filter unit (less structure and accessories) 31,000 Lbs. -- Professional dismantling/rigging, truck loading and transportation are available at extra cost. -- NOTE: Per photo #1 on the Ex-Factory website the unit for sale is on the right-hand side. The left-hand unit is not easily accessible.

MAC/SCHENCK 144-RPT-252 STYLE III Baghouse Filter System with Pulse Jet Cleaning and Rotary Air Lock (RAL) discharge.RPT Filters (Rectangular Pulse Top-Removal) Rectangular top removal bodied filter unit designed to handle high air volumes. • Bags are removed vertically from the top clean section. Walk-in plenum so the filter media replacement and maintenance can occur in an enclosure for inclimate weather. -- Baghouse Capacity: 4,770 sq. ft. of cloth consisting of (252) bags, 144" long 16 Oz P84 Top Load bags and bright wire cages. Depending on your application, for example at an air-to-cloth ratio of 3.14:1 it can develop 15,000 CFM. -- Equipped with: (1) PHELPS FAN, Material Handling, WRM-380 CCW-TAU HD ARR. 8 with A-36 inlet flange Performance at 15,000 ACFM & 15" SPWG, 1780 RPM, 315°F, 0.050 #/cu. ft..500' elev. Direct drive MOTOR IS NOT INCLUDED but was designed for 75 HP, 1800 RPM,, 365T. Fan was connected in a negative pressure configuration, flanged inlet & outlet. -- Bag Cleaning; Requires 33 SCFM of clean, dry air at 90-100 PSIG. -- Complete with: Auger on bottom of hopper feeding Rotary Air Lock (RAL) with approx. 1.5 HP gearmotor at 22 RPM.; (3) Rupture style explosion vents.. -- Features: Equipped for High Temperature (400°F) bags Special equipment includes VITON Diaphragm valves, copper line (in lieu of polyflo tubing)high temperature air header connections and hi-temp purge pipe compression on couplings. (2) 2" NPT couplings with plugs are included in the plenum section for future addition of sprinkler/deluge system. -- Filter unit constructed of carbon steel containment with 3/8" x 4" reinforcing ribs. 34" diam. high entry inlet and top outlet. -- Includes: Nema 4 Timer Board and solenoid valve enclosure. Each require 110/60 Hz power supply. Filter has (2) solenoid valve enclosures. -- Dimensions: 492" overall height (ground to top), 156" square sides. Separates into (3) sections: Top Plenum, filter section and bottom hopper/support steel. -- Dismantling/rigging is included. Please inquire for transport to your location.. -- NOTE: Extra high Stainless Steel stack is available if you want it.

Pneumafil – New Style 10’ ·· Pneumafil – Old Style 12’, 10’, 8’ ·· Torrit – 8’, 10’, 12’ ·· Carter Day – 10’ or can be cut to less ·· Airlanco – 10’ ·· Mac – 10’ MCF Style ·· Call for Availability

MAC Enviromental 4' Dia x 15' 33" x 13" inlet & 20" Outlet

MAC 114LST100 Dust Collector 12x10 Rotary Airlock Hopper and leveling screws Air flow: 18,000 ACFM Media: 2,000 sq ft 12 Gauge Carbon steel exterior Clean air plenum Guard rail Nema 4 enclosureHopper discharge to match airlock Magnehelic pressure differential gauge kit (100) 6" x 144" 16 oz Polyester bags 60 HP Motor, 460 V System has already been dismantled and is ready to load.

MACDONALD STEEL 65 ST Dust Collector System with Shaker filter cleaning, Rotary Air Lock, and 18' dia. housing. -- Specifications: Capacity for 65,000 CFM, 18' dia. shell, with 8,199 sq-ft. of filter area for an air-to-cloth ratio of 7.7:1. T-150 polyester bags 14 oz. with a 30 - 40 CFM.@ 1/2" WG permeability. -- Current Fan configuration: System 1: Fan inlet of 33" at 32,500 CFM; System 2: .Future capacity for a second fan as per System 1. Return air duct is 42" x 72". -- Filter Cleaning: Top mounted electrically operated & timed mechanical shaker, approx. 2 HP motor which will automatically operate on all shutdowns. -- Equipped with: MACDONALD 18" Rotary Air Lock (RAL) with bottom eductor/T-section for connection to a relay/transfer fan (not included.). -- Complete with Fire Damper, Summer/Winter Damper with Silencer, Explosion doors, safety ladders, and access platform. -- Features: 13" MH/HT 20 HP Transfer/Transport fan -- Overall height is currently 57'-3" with 12' clearance under RAL. Weight of filter with structural steel is 29,000 Lbs plus fan is about 3,000 Lbs. -- Shell panelized construction (made of separable panels allowing for road/Hwy travel).Professional rigging, loading and transportation are available at extra cost; quote upon request.

MACDONAL STEEL - 26 PT: Dust Collector with RAL/Auger and Diverter Gate.Overall data: 16,700 CFM; 1,780 sq/ft. of cloth area comprised of: (85) Bags: 8" Dia. & 120" long; 60 HP blower; 26" inlet dia. with retrofitted Auger/Rotary Air Lock. -- Equipped with: Electrically operated mechanical bag shaker; back pressure damper on inlet manifold; Diverter/Abort Gate. -- Complete with: Safety hoop access ladder; (1) access platform to filter media; (1) top mounted fan/motor; silencer on return air. -- Starter/electrical control panels and disconnects inside/outside for each drive. -- Used 150 HP; rated VFD is available at extra cost.

MACDONALD STEEL 37 PTFU Dust Collector with Shaker type bag cleaning. -- 30,500 CFM, 150 HP blower with 37" inlet dia., 4,354 square feet of cloth filter area with 7.0 to 1 air to cloth ratio, (114) 9" dia. X 168" (14') long bags, 1.5 HP shaker motor, -- MACDONALD 37 AT main fan belt driven by a 150 HP WEG motor. Silencer on fan discharge. 11' dia. baghouse with 2,160 cubic feet storage cap; overall height of approx. 55' -- Includes: Retrofitted hopper with transition to bottom auger to Rotary Air Lock (RAL). Explosion Doors -- Features: Enclosure with SIEMENS Variable Frequency Drive (VFD) for efficient ramp-up control convenient fan speed control as needed.Summer/Winter diverter on return air line. Truck level loading .'Y' branch on inlet with approx. 33" & 16" supply lines. -- Complete with: Electrical control panels with with starters for auger and RAL. All external ducting, and about 100' manifold of 33" dia. steel flanged main trunk supply line. Safety ladders & access platforms.

MAXIFLOW by AQC V3-6MCH3-36 CARTRIDGE Filter Dust Collector. -- Specifications: 16,000 CFM approx. Filter Cartridge System complete with (36) cylindrical cartridges (130 sq. ft. cloth area per cylindrical cartridge - 13.84"OD x 9.47" ID x 26" long.) for a total 4,680 sq..ft. of filter area; operating at 3.4:1 air-to-cloth ratio. -- Cartridge Specs: SB-820, 100% Polyester Spun-bolded, 8.0 oz/sq. yds. Air permeability 20 -30 cfm/sq. ft. @ 0.5" WG. 200°F continuous operating temperature. -- Comes with: Automatic continuous pulse jet cleaning via compressed air, (1) pulse valve per (2) cartridges; Sequencing Timer in an enclosure. -- Construction: 11 gage fully welded construction. 1/4" thick plate Tube Sheet. (3) V-shape 66" hoppers under filter housing. Heavy Duty steel legs to position unit approximately 43"' above the ground, providing sufficient clearance for (3) 55 Gal. drums.. Housing rated for +/- 20 " WG. Includes 92) 20" dia. top inlet pipe. -- Equipped with: TWIN CITY Fan, approx. 26" inlet belt driven by a 40 HP , 1800 RPM, TEFC Fan generates 16,000 CFM at 9" WG. Ground-mounted fan/motor. -- Features: ABB 'HVAC' series VFD (Variable Frequency Drive) for variable speed of motor to conveniently control desired CFM.. AfterFilter section with HEPA filters for return air into building with (4) grille sections. -- Services Required: 110V 50-60 Hz; air supply of 12 CFM @ 90 - 100 PSI. Pulses every 10 sec. -- Overall filter dimensions/Weight: 86" wide x 132" long x 160" ht. (156.5" + inlet flange); 6,500 Lbs. -- Seismic rating zone 4, Wind resistance 160 KPH (100 MPH). -- Unit available Oct 1, 2023.

MAXIFLOW by AQC 9MCH4-72 CARTRIDGE Filter Dust Collector. -- Specifications: 35,000 1CFM range approx (depending on application and ACR required). Filter Cartridge System complete with (72) cylindrical cartridges (130 sq. ft. cloth area per cylindrical cartridge - 13.84"OD x 9.47" ID x 26" long.) for a total 9,360 sq..ft. of filter area. -- Cartridge Specs: SB-820, 100% Polyester Spun-bolded, 8.0 oz/sq. yds. Air permeability 20 -30 CFM/sq. ft. @ 0.5" WG. 200°F continuous operating temperature. -- Comes with: Automatic continuous pulse jet cleaning via compressed air, (1) pulse valve per (2) cartridges; Sequencing Timer in an enclosure. -- Construction: 11 gage fully welded construction. 1/4" thick plate Tube Sheet. (3) V-shape 66" hoppers under filter housing. Heavy Duty steel legs to position unit approximately 43"' above the ground, providing sufficient clearance for (5) 55 Gal. drums.. Housing rated for +/- 20 " WG. Includes 92) 20" dia. top inlet pipe. -- Equipped with: BAE-SW Size 402TWIN CITY Class 4 Air-Foil Fan belt driven by a 150 HP , 1783 RPM, TEFC Fan generates approx 35,000 CFM . Ground-mounted fan/motor. -- Includes: Control Panel. Sprinkler System. Catwalk/Ladder. Barrels & Ducting. -- Services Required: 110V 50-60 Hz; air supply of approx. 22 CFM @ 90 - 100 PSI. Pulses every 10 sec. -- Overall filter approx. dimensions/Weight: 186 W x 111" Deep x 160" H. 9,500 Lbs. -- Seismic rating zone 4, Wind resistance 160 KPH (100 MPH)

MOLDOW Style, by ' NEU-JKF', Modular Baghouse with chain-sweep bottom feeding into a Rotary Air Lock (RAL) at the end of filter bank. -- General Data: Approx 35,600 CFM running at a 5:1 Air-to-Cloth Ratio. Total of 7,125 sq. ft. of filter area comprised of (14) modules each containing (27) filter bags. Filter bags are 8.5" dia. by approx. 96" long. All modules including inlets are fitted with filter bags. -- Main fans: Total of (3) Material Handling (MH)fans. (2) NORTHERN BLOWER Size 23, Des 5691, CL 3 Fans each belt driven by 60 HP TEFC motor. Fan inlets supplied by 26" dia. pipes. (1) type JK 25 HP MH blower. -- Filter Cleaning: Each module is supplied with a 2 HP approx. regenerative high pressure fans to sequentially back-flush the dust from the bags during operation and thereby falling into the continuous hopper with a drag-chain-sweep mechanism that rides along the bottom of hopper and feeds into the RAL. -- Return Air: All modules are ducted into one return air manifold pipe. -- Electrical Controls: CONQUEST free standing electrical control panel with visual light indicators for monitoring system status. Panel contains all start/stop pushbuttons and selector switches, and main disconnect. -- Includes: Steel Support frame with a walkway to the access doors which can act as explosion vents. Full set of polyester filter bags. -- Inquire for a cost for professional dismantling and transportation.

MOLDOW 184 MXN-324 Expandable Baghouse - 18 Total Modules with (4) Inlet Sections. Specifications. -- 72,000 CFM modular/expandable unit, currently with (14) Filter sections @ 5,000 CFM per section (24 bags per section). -- Approx 336 filter (8.6" dia. by 120" long) , 9,300 sq. ft. of total filter media, 7.75:1 air to cloth ratio Shell is under negative pressure allowing a high efficiency clean air fan.. -- Main Fan: Air Handling IAP A600 SWSI, Class IV, S/N 26862-1 rated at 90,000 CFM @ 1321 RPM, 16.0/20.3" SP & 290/308 BHP. Fan is A - Airfoil type wheel & is non-overloading powered by MARATHON "445Ta" belt driven TEFC 300 HP motor.. Currently fan inlet is connected with a 30" pipe. Regenerative Filter Cleaning: -- Each row of filter bags is cleaned continuously during operation by use of a regeneration carriage/trolley rides along top of filter bank) with a 4 KW (5.3 HP) high-pressure fan that sends air from the clean-air chamber back through the filter bags using nozzle pipes.Bags are fitted with an inner spring bracing. Special bag design reduces air velocity which increases air and dust loading considerably. -- Equipped with: Built-in bottom drag link chain which brings dust to one end where it is discharged through approx. 9" x 30" Rotary Air Lock (RAL). Currently a transfer fan moves dust to storage bin.. Summer/Winter Diverter/Abort Gate connected on outlet/return air line.Comes with: -- Relay Fan, IAP 911 RBO, to pneumatically convey collected dust at discharge of RAL. -- Platform with safety railings and ladder to access regeneration cabinet (return air plenum). -- Interior electrical control panel, support frame, and exterior ductwork. Single heavy sheet metal flanged rectangular return air pipe. Overall Dimensions: -- 45' Long by 12'-9" wide by 28.5' high (5.5' hopper to ground, 8' high hopper and 15' top section). -- Professional dismantling, rigging, transport and installation is available upon request.

Main fan motor 20 HP RAL opening 14” Electrical panel Auto shaker filter cleaning Inlet pipe size 14” Number of filters 63

MURPHY-RODGERS - MRSE-14-RAL: Baghouse Dust CollectorSpecifications: 14" Inlet dia.; 4,836 CFM; (63) bags with: 520 Sq./ft. filter area; 9.3:1 air-to-cloth ratio; 20 HP fan motor; primary separator built into unit; secondary separation of fine particles by filter bag section; -- Equipped with: -- Rotary Air Lock. -- Fully automatic shaker controls with: Electric shaker as standard; consists of panel box with shaker starter; transformer for 115 V circuitry; solid-state timer for fan deceleration & shaking cycle. -- All necessary relays and internal wiring inside the panel box.

MURPHY-RODGERS - HEC-216-S/10: 33,000 CFM Continuous Duty Automatic Self-Cleaning Pulse Jet Baghouse Dust CollectorEquipped with: -- (216) 5" Dia. x 10' L Cloth filter bags for a total of: 2,827 sq/ff. of filter area. -- (2) 42-1/2" W x 68" H & (2) 40-1/2" x 68" H Top access doors. -- (3) Front & (2) side 27" W x 54" H Filter access doors. -- (2) Square cone bottom hoppers each with: 25" x 25" Discharge openings. -- System utilizes: (2) 4-1/2’ x 6’ x 4’ H Waste containers (NOT included). -- CHICAGO 100 HP - 1,780 RPM Roof Mounted Blower with: 41"; Dia. inlet. -- Motorized dampers for winter & summer modes. -- Winter mode: Directs air back into building, reducing heat loss. -- Summer mode: Directs air outside, cooling building. -- Electrical controls (as pictured).Complete with: -- Spare Filter Bags.NOTE: Installed Used in 2016 with "New" 100 HP motor, new bearings in blower & "New" spring mounts.NOTE: Variable Frequency Drive needs to be replaced.

MURPHY-RODGERS MRZ 17/16L Interior/Open 6 Bag Dust Collector with Auger and Rotary Air Lock General specs: Approx. 7,600 CFM @ 8" SP. (6) top filter bags @ 24" dia. by 72" long. (6) bottom disposable plastic dust storage bags. -- Fan/Motor: 25 HP BALDOR TEFC motor direct driven fan with electrical starter. 17" diameter inlet, with lifting hooks. The bag collector motor is brand new and has never been powered on or fired up. -- Comes with: Main approx. 17" dia trunk line, shut-off, and Quick clamp removal for filter and plastic bags. -- All steel construction with rugged support legs. Air Deflectors allows operator to adjust the air flow and amount of waste evenly into the 6 waste bags. -- Note: NFPA 664 (Fire Code) states that a max. of 5,000 CFM is limit allowed for indoor enclosure-less dust collectors.

MURPHY-RODGERS MRJ-610-122 Pulse Jet Dust Collector with Rotary Air Lock and Transfer Fan.Specifications: -- 8,500 CFM approx. @ 9 to 1 air to cloth ratio baghouse dust collector with (60) 10-feet long filters; total cloth area of 943 sq. ft. -- Filter Cleaning: Continuous Self-cleaning Using Compressed Air. -- Main Fan: 30 HP top-mounted blower motor. with approx 18" dia. inlet. --System includes: Relay/Transfer fan, steel structure support stand, low height as waste is transferred by fan, safety ladder/platform, top safety railing, and approx. 16" Rotary Air Lock.Actual model is MRJ 610 -122.

With bag house / LMC Pulse Jet filter model 81FSD12 Low pressure Cyclone model LP-961 Includes rotary airlock and rain cap and stand WT 5,914 Low pressure cyclone model LP-48 Includes rotary air lock and stand wt 1,466 100 horse power fan.

Murphy Rogers MRM-16-185H Shaker Dust Collector 16” dia. inlet 25 hp exhauster motor 81 filters 6” dia. x 68” lg 668 sq/ft of filter 6,000 cfm estimated capacity Serial Number: 1020

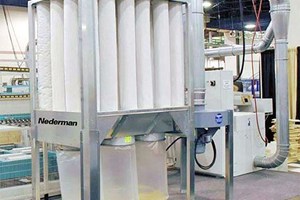

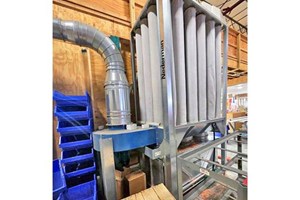

NEDERMAN S-1000 BAG FILTER Dust Collector. The NEDERMAN S-Series Baghouse Dust Collector is quick to install and easy to operate. It's the ideal solution for a smaller shop or single work-cell operation.Specifications: -- With a 10 HP motor and a 5,000 CFM @ 7" WG and 360 Sq/ft of filter media. -- 10 HP - 1,750 RPM TEFC Motor, (24) Beane material filter bags and magnetic starter. -- Features: Easy installation, typically (1) hour; quiet operation, (3) waste discharge points. Inlet opening 16". Available in 208/230/460 V, 60 Cy, 3 Ph. Must specify Voltage at time of orderAvailable option:- Aluminum Impeller: - 45 Gallon Drum Discharge - Single Drum (3 REQUIRED)- 230 Gallon Dump Bin: Available spare parts:- Filter Bag (24 Filters)- Plastic Bags (Roll of 90 - 8 mil thickness) - 500mm Clamp (bags, barrels, and bin)
