Sawmill Equipment For Sale

This system was purchased used and never put into service.

MAC Edger

MAC Enviromental 4' Dia x 15' 33" x 13" inlet & 20" Outlet

MAC 120-MCF-572 High Capacity Baghouse Dust Collection system with Rotary Air Lock (RAL) and Medium-pressure Controlled air cleaning dust Filter (MCF). -- Baghouse Capacity: 50,000 CFM @ 7.2:1 Air-to-cloth ratio (ACR), approx. 6,921 sq-ft of filter area based on (572) Filter bags; 120" long x 5" dia. -- Equipped with: (1) AIR TECH size 402, BISW, Backward Inclined Air Handling Fan, Class IV, with 40" inlet, ground-mounted on unitary base, flanged inlet box & outlet. For prior application fan operating point (RPM/SP) is set up for about 41,526 CFM @ 12" WG at 1566 RPM, drawing 119 BHP. the fan is equipped with a variable volume damper on discharge. Fan range is about 40,000 - 55,000 CFM. Powered by a TOSHIBA 150 HP TEFC, 444T, 1800 RPM motor packaged with a belt drive -- Bag Cleaning: Mac "Never-Miss" Cleaning System with rotating arm, diaphragm valve for pulse cleaning Approx. 3 HP positive displacement (PD) pump for bag cleaning at only 7- 9 PSIG. 1 HP direct drive gear motor for distribution arm, integral manifold/surge tank, pneumatically controlled firing mechanism activating the diaphragm valves/nozzles. When cleaning arm & bag segments are correctly aligned air nozzles fire directly into bags without wasted cleaning air. -- Includes: MAC FS24x24 AIRLOCK Rotary Air Lock (RAL) with approx. 2 HP SYNCROGEAR MODULE gear motor; sprinkler package; 60° Cone-shaped hopper attached to MAC at bottom of cone. -- Features: Floor-standing Electrical controls (excluding shared controls) with MOTORTRONICS Solid State AC Softstart for main 150 HP motor. -- Additional Features: Explosion vents. Summer/Winter diverter and return air ductwork. Support structure. Caged access ladder from ground Service Platform and to the top plenum. -- Baghouse constructed of 7 gauge carbon steel containment; one piece body all welded construction, 180" (15') diameter shell panelized unit, walk-in plenum for maintenance and bag replacement. -- MAC design features: MCF 4HVP Pump package. MCF Medium-pressure air requires less HP and yet offers high dust and air collecting efficiency with unmatched baghouse cleaning at lower operating cost. MCF pulses each bag the same number of times with the same amount of air. (Unlike some competitors which clean the inside rows of bags more often than necessary thus wasting energy, causes uneven pressure drop, and bag wear). -- (2) of these identical units are installed per photos, one only is available based on Owner/buyer agreement and price point. Material handling fan/drive is not included and is assumed to stay with the remaining filter unit. -- Overall dimensions: 580.5" high x178.5" square frame with an estimated weight of filter unit (less structure and accessories) 31,000 Lbs. -- Professional dismantling/rigging, truck loading and transportation are available at extra cost. -- NOTE: Per photo #1 on the Ex-Factory website the unit for sale is on the right-hand side. The left-hand unit is not easily accessible.

MAC/SCHENCK 144-RPT-252 STYLE III Baghouse Filter System with Pulse Jet Cleaning and Rotary Air Lock (RAL) discharge.RPT Filters (Rectangular Pulse Top-Removal) Rectangular top removal bodied filter unit designed to handle high air volumes. • Bags are removed vertically from the top clean section. Walk-in plenum so the filter media replacement and maintenance can occur in an enclosure for inclimate weather. -- Baghouse Capacity: 4,770 sq. ft. of cloth consisting of (252) bags, 144" long 16 Oz P84 Top Load bags and bright wire cages. Depending on your application, for example at an air-to-cloth ratio of 3.14:1 it can develop 15,000 CFM. -- Equipped with: (1) PHELPS FAN, Material Handling, WRM-380 CCW-TAU HD ARR. 8 with A-36 inlet flange Performance at 15,000 ACFM & 15" SPWG, 1780 RPM, 315°F, 0.050 #/cu. ft..500' elev. Direct drive MOTOR IS NOT INCLUDED but was designed for 75 HP, 1800 RPM,, 365T. Fan was connected in a negative pressure configuration, flanged inlet & outlet. -- Bag Cleaning; Requires 33 SCFM of clean, dry air at 90-100 PSIG. -- Complete with: Auger on bottom of hopper feeding Rotary Air Lock (RAL) with approx. 1.5 HP gearmotor at 22 RPM.; (3) Rupture style explosion vents.. -- Features: Equipped for High Temperature (400°F) bags Special equipment includes VITON Diaphragm valves, copper line (in lieu of polyflo tubing)high temperature air header connections and hi-temp purge pipe compression on couplings. (2) 2" NPT couplings with plugs are included in the plenum section for future addition of sprinkler/deluge system. -- Filter unit constructed of carbon steel containment with 3/8" x 4" reinforcing ribs. 34" diam. high entry inlet and top outlet. -- Includes: Nema 4 Timer Board and solenoid valve enclosure. Each require 110/60 Hz power supply. Filter has (2) solenoid valve enclosures. -- Dimensions: 492" overall height (ground to top), 156" square sides. Separates into (3) sections: Top Plenum, filter section and bottom hopper/support steel. -- Dismantling/rigging is included. Please inquire for transport to your location.. -- NOTE: Extra high Stainless Steel stack is available if you want it.

MACDONALD STEEL 65 ST Dust Collector System with Shaker filter cleaning, Rotary Air Lock, and 18' dia. housing. -- Specifications: Capacity for 65,000 CFM, 18' dia. shell, with 8,199 sq-ft. of filter area for an air-to-cloth ratio of 7.7:1. T-150 polyester bags 14 oz. with a 30 - 40 CFM.@ 1/2" WG permeability. -- Current Fan configuration: System 1: Fan inlet of 33" at 32,500 CFM; System 2: .Future capacity for a second fan as per System 1. Return air duct is 42" x 72". -- Filter Cleaning: Top mounted electrically operated & timed mechanical shaker, approx. 2 HP motor which will automatically operate on all shutdowns. -- Equipped with: MACDONALD 18" Rotary Air Lock (RAL) with bottom eductor/T-section for connection to a relay/transfer fan (not included.). -- Complete with Fire Damper, Summer/Winter Damper with Silencer, Explosion doors, safety ladders, and access platform. -- Features: 13" MH/HT 20 HP Transfer/Transport fan -- Overall height is currently 57'-3" with 12' clearance under RAL. Weight of filter with structural steel is 29,000 Lbs plus fan is about 3,000 Lbs. -- Shell panelized construction (made of separable panels allowing for road/Hwy travel).Professional rigging, loading and transportation are available at extra cost; quote upon request.

MACDONALD STEEL 37 PTFU Dust Collector with Shaker type bag cleaning. -- 30,500 CFM, 150 HP blower with 37" inlet dia., 4,354 square feet of cloth filter area with 7.0 to 1 air to cloth ratio, (114) 9" dia. X 168" (14') long bags, 1.5 HP shaker motor, -- MACDONALD 37 AT main fan belt driven by a 150 HP WEG motor. Silencer on fan discharge. 11' dia. baghouse with 2,160 cubic feet storage cap; overall height of approx. 55' -- Includes: Retrofitted hopper with transition to bottom auger to Rotary Air Lock (RAL). Explosion Doors -- Features: Enclosure with SIEMENS Variable Frequency Drive (VFD) for efficient ramp-up control convenient fan speed control as needed.Summer/Winter diverter on return air line. Truck level loading .'Y' branch on inlet with approx. 33" & 16" supply lines. -- Complete with: Electrical control panels with with starters for auger and RAL. All external ducting, and about 100' manifold of 33" dia. steel flanged main trunk supply line. Safety ladders & access platforms.

MACDONAL STEEL - 26 PT: Dust Collector with RAL/Auger and Diverter Gate.Overall data: 16,700 CFM; 1,780 sq/ft. of cloth area comprised of: (85) Bags: 8" Dia. & 120" long; 60 HP blower; 26" inlet dia. with retrofitted Auger/Rotary Air Lock. -- Equipped with: Electrically operated mechanical bag shaker; back pressure damper on inlet manifold; Diverter/Abort Gate. -- Complete with: Safety hoop access ladder; (1) access platform to filter media; (1) top mounted fan/motor; silencer on return air. -- Starter/electrical control panels and disconnects inside/outside for each drive. -- Used 150 HP; rated VFD is available at extra cost.

MACHINEX - SRM-1: SamurAI Sorting RobotThe SamurAI is a 4 articulation Robot, which: Targets designated products to capture, maneuver, and deposit into the respective chutes.Includes: Unique integrated Suction System driven by a blower, enabling the removal of small and light particles (such as plastic film) into a dedicated Cyclone and lowering compressed air requirements .Specifications: -- Up to (70) picks per minute (nearly double the average pick rate (30 - 40) picks/minute) of a human sorter. -- Up to 95% efficiency of targeted product recognitionEquipped with: -- (1) Sorting Camera. -- (2) Sorting Arms. -- HMI Interface and controls. -- Currently over a 32" W Conveyor. -- Adaptive Concept: Designed for multiple robot configurations and extended conveyor width options. -- Material handling flexibility: Recovered products handled through fixed sorting chutes or portable bins -- Lighting encapsulation: For optimal product recognition in all possible sorting environments. -- Ergonomically designed: Maximize productivity by easy access for preventative maintenance. -- Temporary manual sorter replacement. -- Safe working environment with easy access inside the machine for a sorter to replace the robot during planned maintenance shutdowns.Positively: Extracts recyclable commodities from a specific stream of material (e.g.: plastics, fiber or metals from a reject line); Negatively: Sort a dedicated stream from all its contamination (e.g.: PET quality control after an optical unit).Prepping machine and loading on your truck is included.

20" x 30' Belt Conveyor

Mainline Power Belt Conveyor, 37ft W x 30'L Approx

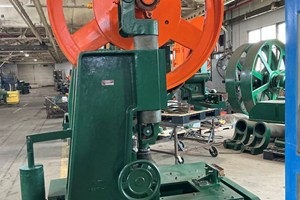

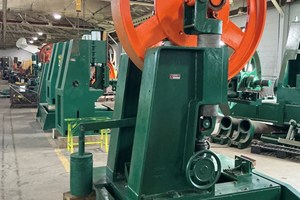

Maintenance Machine Company Vertical Line Bar Band Resaw.

Manitowoc Horizontal Stationary Flail Debarker S/N 103 36,500 Lbs, 11'8" Wide x 9'9" Tall

Manitowoc 22" Ring Debarker

Manitowoc Flail Debarker Qty: 2 Call 800-459-2148 for more info.

MARATHON - V-6030HD: Vertical Baler -- Vertical Baler 60". -- Motor: 10 HP. -- Cylinder: 6". -- Bale size: 60" x 30". -- Loaded onto your truck.

MARATHON 604242-830 CLOSED DOOR HORIZONTAL BALER -- 8" Cylinder -- 30 HP Motor -- Feed Opening 60" x 42" -- Loaded on your Truck

MARATHON - STEALTH: Horizontal Closed Door BalerSpecifications: -- Cylinder: 6". -- Opening: 60" x 48". -- Ram Force: 67,900 Lbs. -- Bale weight: Max. 1,400 Lbs OCC. -- Main motor: 20 HP.

MARATHON - Gemini Xtreme: Horizontal Closed Door Baler (Full Pen) Specifications: -- Bale size: 30" x 48" x 60". -- Charge box: 35" x 60". -- Cylinder: Dual 6". -- Main motor: 20 HP.

MARATHON - RJ-225: Stationary Compactor - 2-YardSpecifications -- 10 HP. -- Working condition. -- Rusted at anchor point.
